LG RESU FLEX 8.6
| Art. Nr.: | 7745 |
|---|---|
| Net capacity: | 8.6 kWh |
| Battery type: | High volt lithium NMC |
| Warranty: | 10 Jahre |
| Solar battery type: | High voltage battery |
Prices are only visible to business customers upon successful registration.
Product number:
7745
-
-
{ "id": "990ce1964e07588ebaf3695037ce688e", "item_brand": "", "item_name": "LG RESU FLEX battery module", "item_id": "7560", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "990ce1964e07588ebaf3695037ce688e" } } -
{ "id": "cc40adec619e5fed8aa2f4fded30f571", "item_brand": "", "item_name": "LG RESU FLEX wall mounting kit", "item_id": "7753", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "cc40adec619e5fed8aa2f4fded30f571" } }
-
Description
LG RESU FLEX 8.6 high-voltage battery for domestic applications

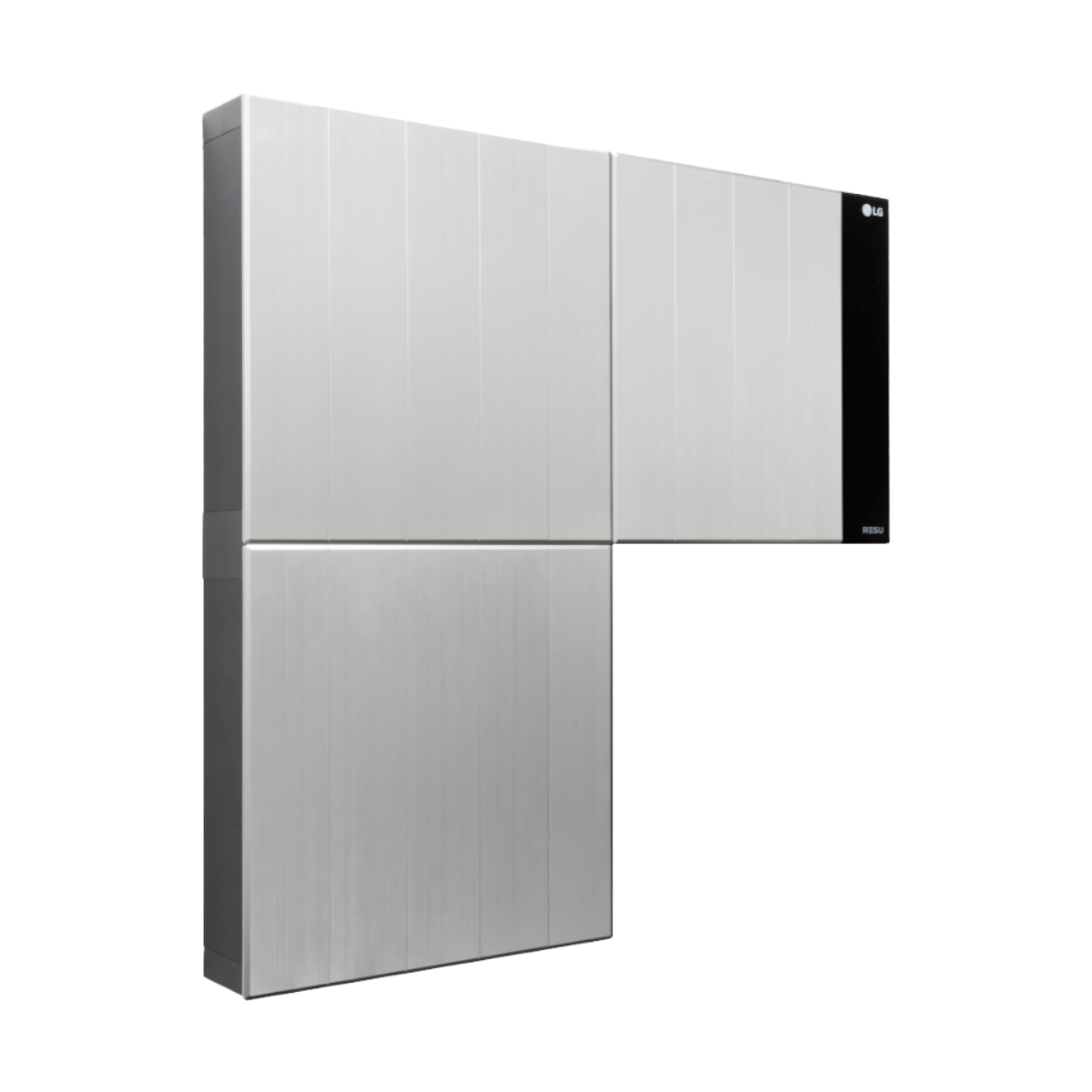

The LG RESU FLEX high-voltage battery is available in 3 different sizes, from two to four battery modules with a usable storage capacity ranging from 8.6 to 17.2 kWh. The battery is modularly expandable and suitable for both wall and floor installation. The control unit is identified by the LG symbol. For floor installation, the battery modules are connected in series to the control unit. For wall installation, on the other hand, the various units can be installed next to each other on the wall.
Product advantages
- Modularly expandable for up to max. 4 battery units
- Both floor and wall installation possible
- Parallel connection of 2 systems up to 34.4 kWh
- Compatible with the RESU Monitor
Product features LG RESU FLEX 8.6
- Usable battery capacity: 8.6 kWh
- Max. charging/discharging power: 4.3 kW
- Operating temperature while charging: 10 - 50 °C
- Operating temperature while discharging: -10 - 50 °C
- Communication: CAN, RS485
- IP 55
- Dimensions: 665.2 x 665.2 x 148.4 mm (H x W x D)
- Weight of battery unit: 48.9 kg
- Weight of control unit: 16.5 kg
- Warranty: 10 years (requires LG course certification and a constant internet connection of the battery)
Delivery includes

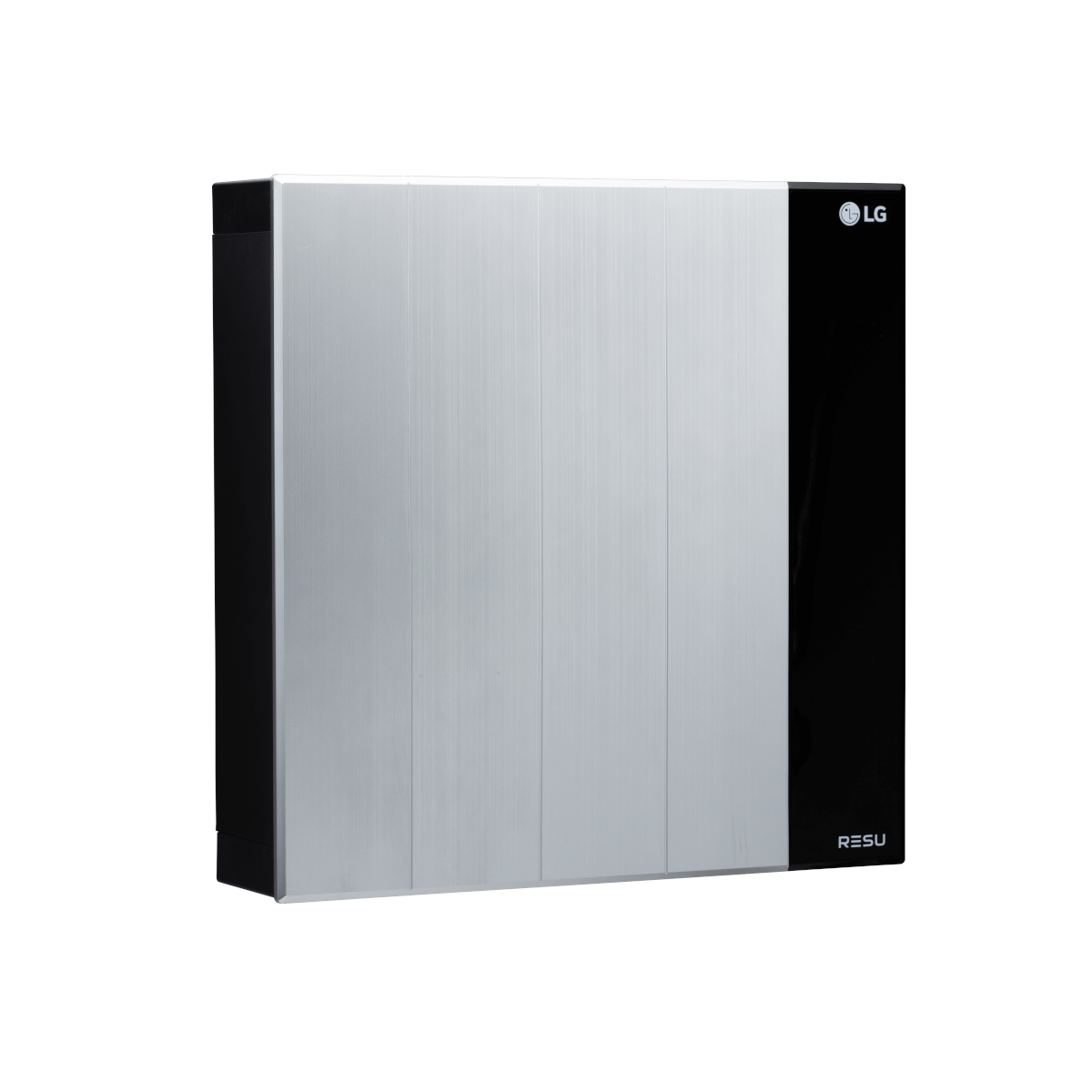

- 1 x control unit

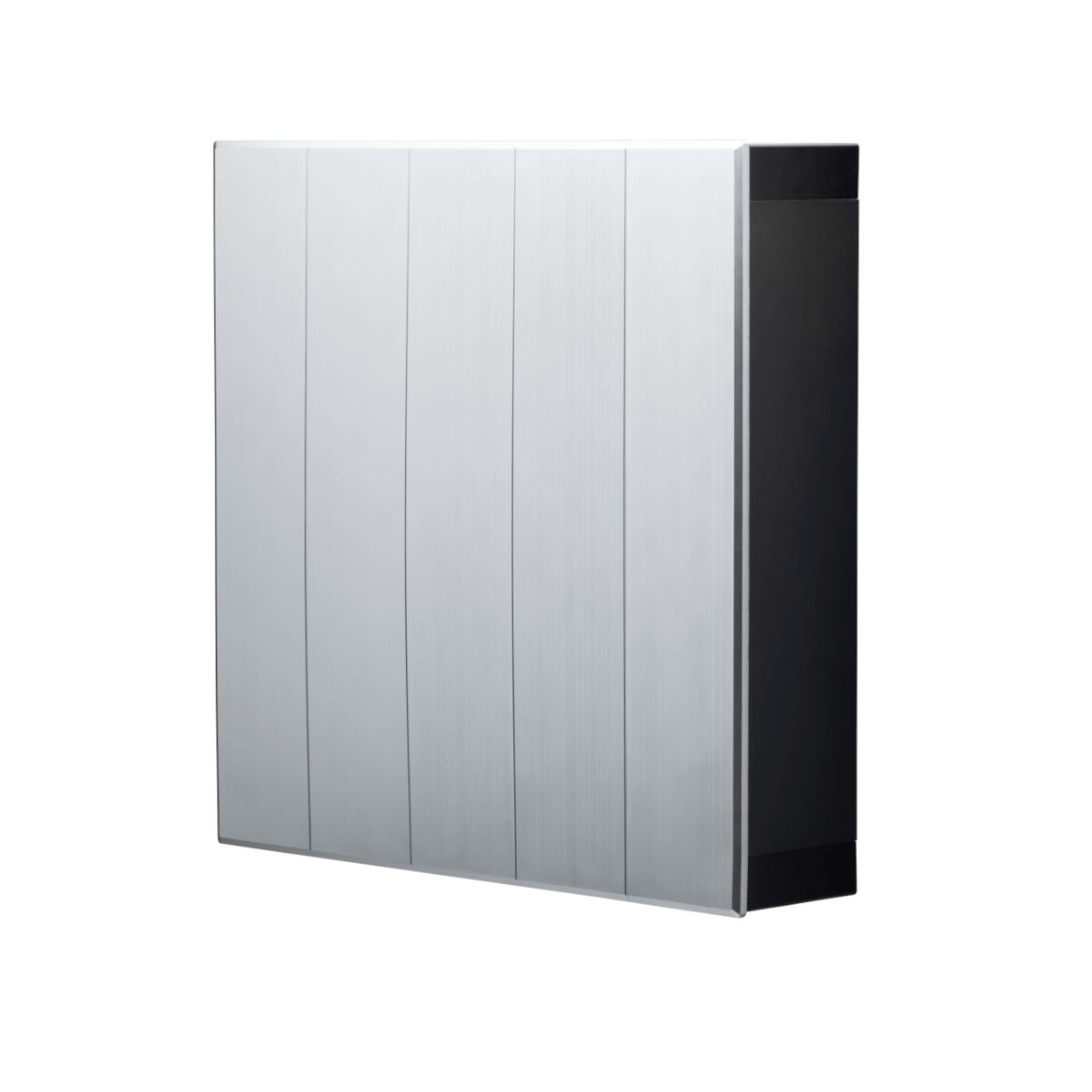

- 2 x battery modules with 4.3 kWh
