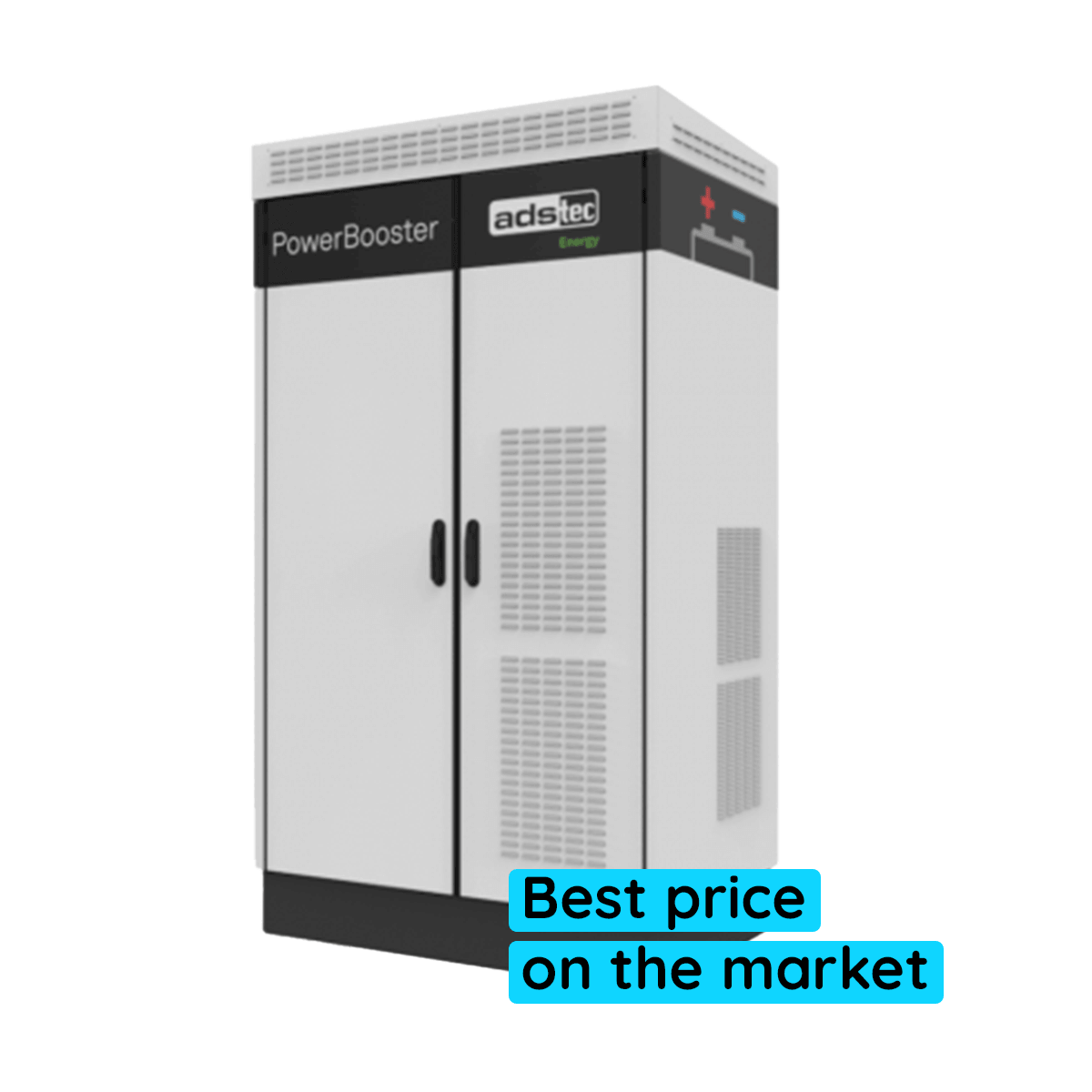

ADS-TEC Energy PowerBooster GSS0813
| Manufacturer Art. No.: | DVK-GSS0813 020-AE |
|---|---|
| Art. Nr.: | 15832 |
| Battery type: | LFP |
| Installation location: | Outdoor |
| Usable capacity: | 111.6 kWh |
| Power: | 75 kW |
| Charging power: | 75 kW |
| Discharging power: | 75 kW |
| Communication: | Ethernet |
- Sale
-
-
{ "id": "783a00e4737354a09c0413a6a1f08f91", "item_brand": "", "item_name": "Janitza UMG 604 Pro", "item_id": "8575", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "783a00e4737354a09c0413a6a1f08f91" } }
-
ADS-TEC Energy PowerBooster GSS0813 – Commercial storage system with a continuous output of 50 kVA and a usable capacity of 111.6 kWh
Depending on the application and requirements, several smart meters from Janitza (UMG 604-E) or Siemens (PAC4200) must be purchased separately. For more detailed information, please refer to the document “Smart Meter Connection and Configuration”.
All technical data is provisional and subject to slight changes.
A chargeable IBN from ADS-TEC is required.
ADS-TEC Energy has been developing high-quality products in Germany for over 10 years. The commercial storage system can be used for your business operations, e.g. for peak load shaving or Self-consumption optimisation. It is also suitable and proven for projects such as charging infrastructure or as a component of a neighbourhood solution and more. The outdoor storage unit can be expanded in terms of both capacity and power output. Cascading is limited to 8 systems. Consequently, even larger applications are no problem for the GSS00813.
Product advantages:
- German manufacturer
- Capable of providing backup power with a single storage unit
- Expandable in 75 kW/111.6 kWh (usable) increments
- Sophisticated safety system
Product features ADS-TEC Energy PowerBooster GSS0813
- Power 75 kVA
- Capacity 128.7 kWh (usable: 111.6 kWh)
- Protection class IP55 (outdoor)
- Operating temperature range -20 °C to 40 °C
- Mains connection 400 V AC, 3-phase, 50 Hz (TN and TT systems)
- Dimensions approx. 1,430 x 2,500 x 940 mm (W x H x D)
- Weight approx. 1,400 kg
- Energy management interface: Modbus TCP
- Energy management compatibility: SMART1
