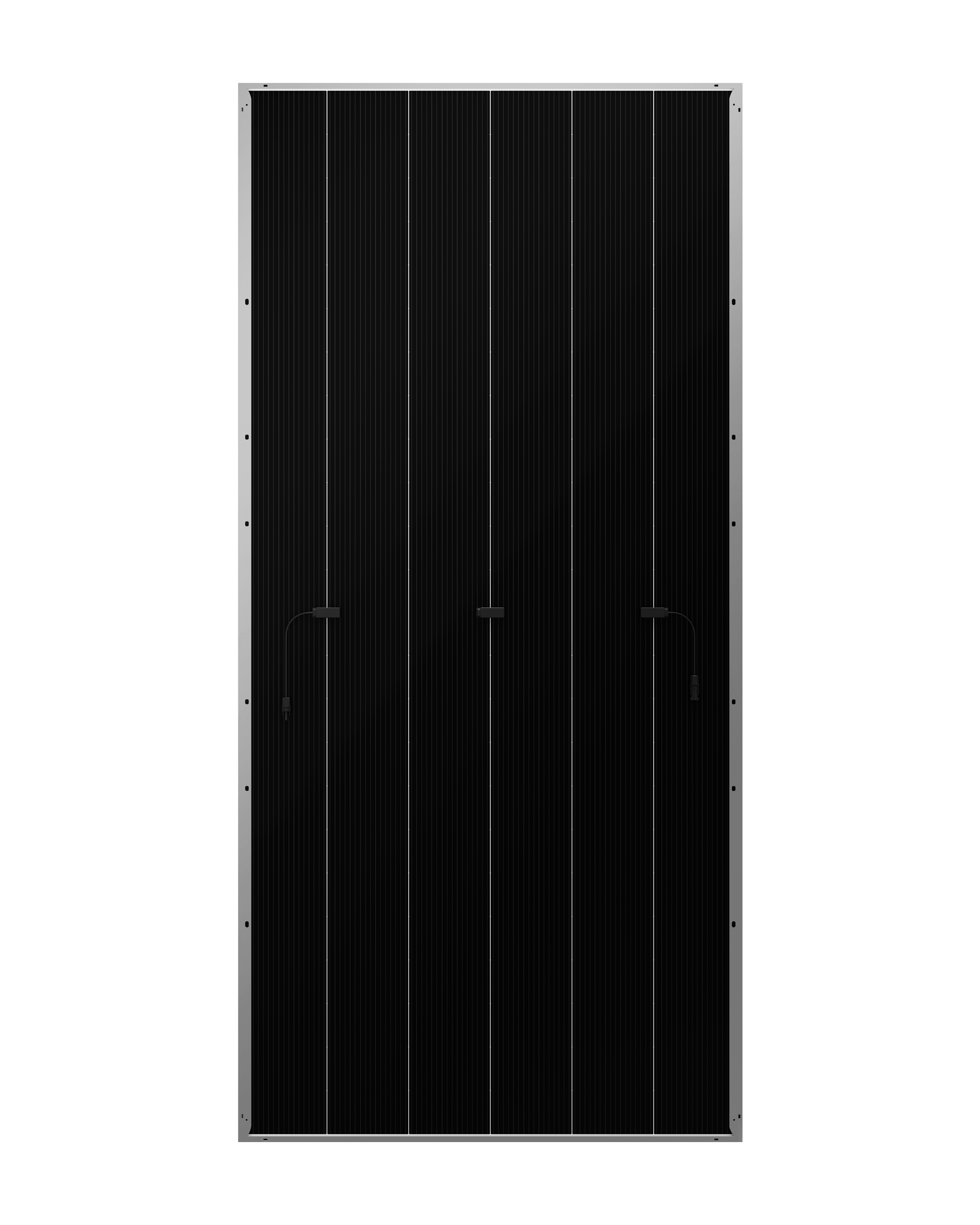

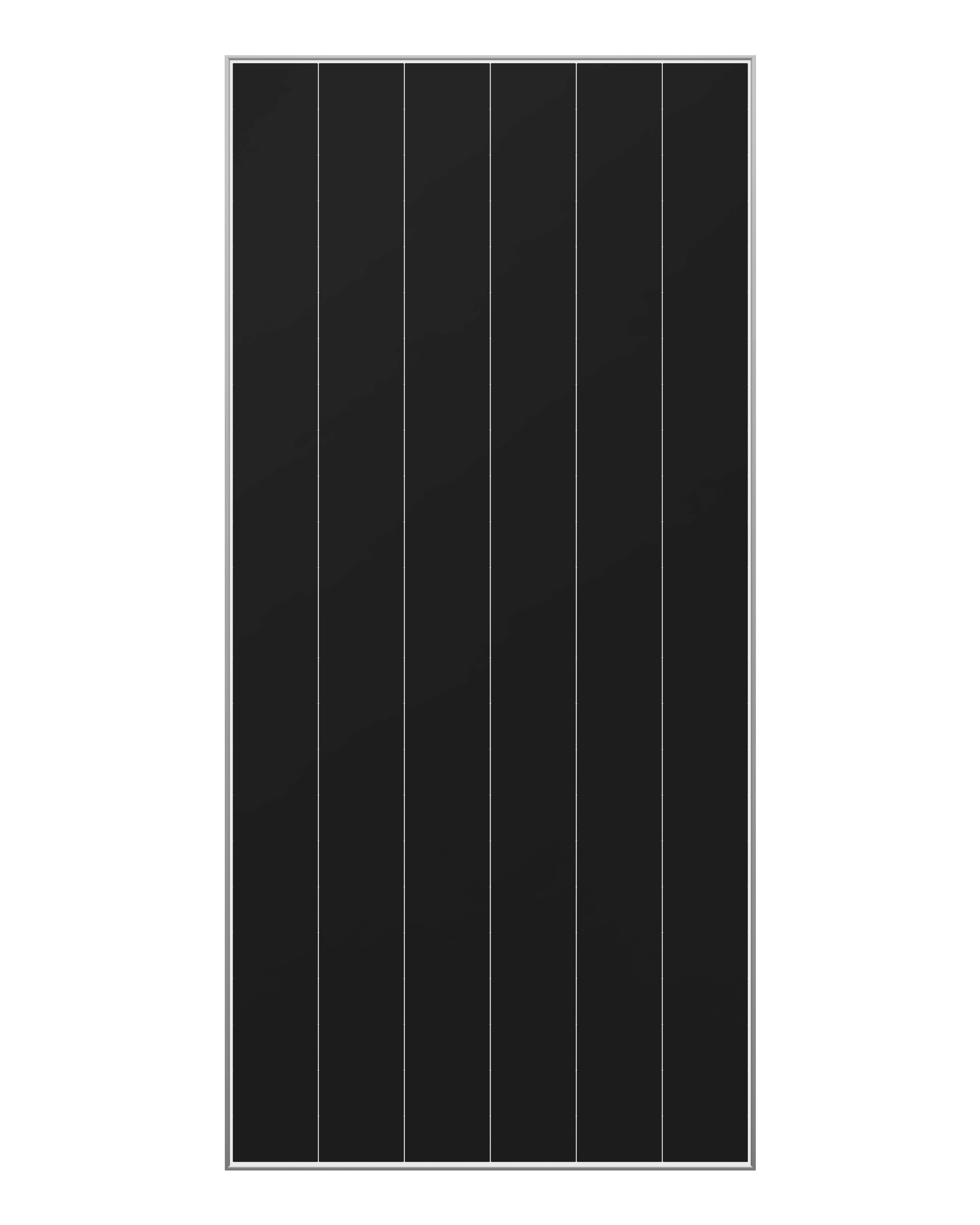

AIKO Stellar 3N+ 72 670W – bifacial double-glass module with ABC technology

Due to its size and nature, this item will be dispatched via charter delivery. Please note:

Higher transport costs will apply.
When placing your order, please specify whether a forklift is available on site for unloading or whether a portable forklift is required. (Without this information, the costs for this will have to be calculated retrospectively.)
For deliveries with a forklift truck provided by the supplier, an additional €500 in transport costs will be charged.
The delivery time will be extended accordingly by up to 10 working days.

AIKO Solar is one of the leading Chinese module manufacturers with its own cell production and is one of the few suppliers with All-Back-Contact (ABC) technology ready for series production. In the AIKO Stellar 3N+ 72, this technology is consistently implemented across 144 N-type half-cells. The result is a bifacial double-glass module with 670 Wp and an efficiency of 24.8 % – thanks to the ABC design, all contacts are located on the rear, whilst the front remains free of busbars.

This makes the module particularly suitable for commercial, ground-mounted and agri-PV projects, where every watt-peak per square metre counts. The rear glass surface provides additional yield where the ground reflects light.

Product advantages

• 144 monocrystalline N-type ABC cells (6x24)
• Bifacial double-glazed, 2.0 + 2.0 mm coated, semi-tempered glass
• Module efficiency 24.8 %
• Pmax temperature coefficient -0.26 %/°C
• 0/+3 per cent positive power tolerance
• Maximum static load 5,400 Pa front / 2,400 Pa rear
• Hail test with 25 mm diameter hailstones at 23 m/s
• Fire protection class A according to IEC
• Anodised aluminium frame
• IP68 junction box with 3 bypass diodes
• 15-year product warranty
• 30-year linear performance warranty (88.85% in year 30)
• Tier 1 manufacturer according to BloombergNEF

Technical specifications at a glance

• Module type: AIKO-A670-MDE72Dw
• Rated power: 670 W
• Open-circuit voltage (Uoc): 54.60 V
• Short-circuit current (Isc): 15.30 A
• Dimensions: 2,382 x 1,134 x 30 mm
• Cable length: +400 mm, -200 mm
• Connectors: MC4-compatible
• Weight: 32.2 kg (± 3 %)
• Operating temperature: -40 °C to +70 °C
• Maximum system voltage: DC 1,500 V
• Packaging: 36 units per pallet / 720 units per 40’ HC
