Alumero easyMONO Kit 2x14, driven into the ground

Alumero

Manufacturer Art. No.:	860214
Art. Nr.:	16306
Product type:	Elevation system
Type of roof:	Open space

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16306

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16306

Tech tip

The key factor determining structural stability is the ground: the pile depth ranges from 1,600 to 1,750 mm, but the ground investigation report is the decisive factor. The soil survey and the final structural analysis must be provided by the client – without a soil survey, you cannot determine the post length. Check at an early stage whether the site is located in a region with higher snow loads: the reinforced ALPIN version of the kit is available for this purpose; changing to it later is expensive. Tighten the module clamps to 15 Nm (M8 Allen key). And bear in mind when selecting modules: the system is designed for modules ranging from 1,722 to 1,762 mm in length, 1,134 mm in width and with a frame height of 30 to 42 mm.

Alumero easyMONO Kit 2x14, driven into the ground

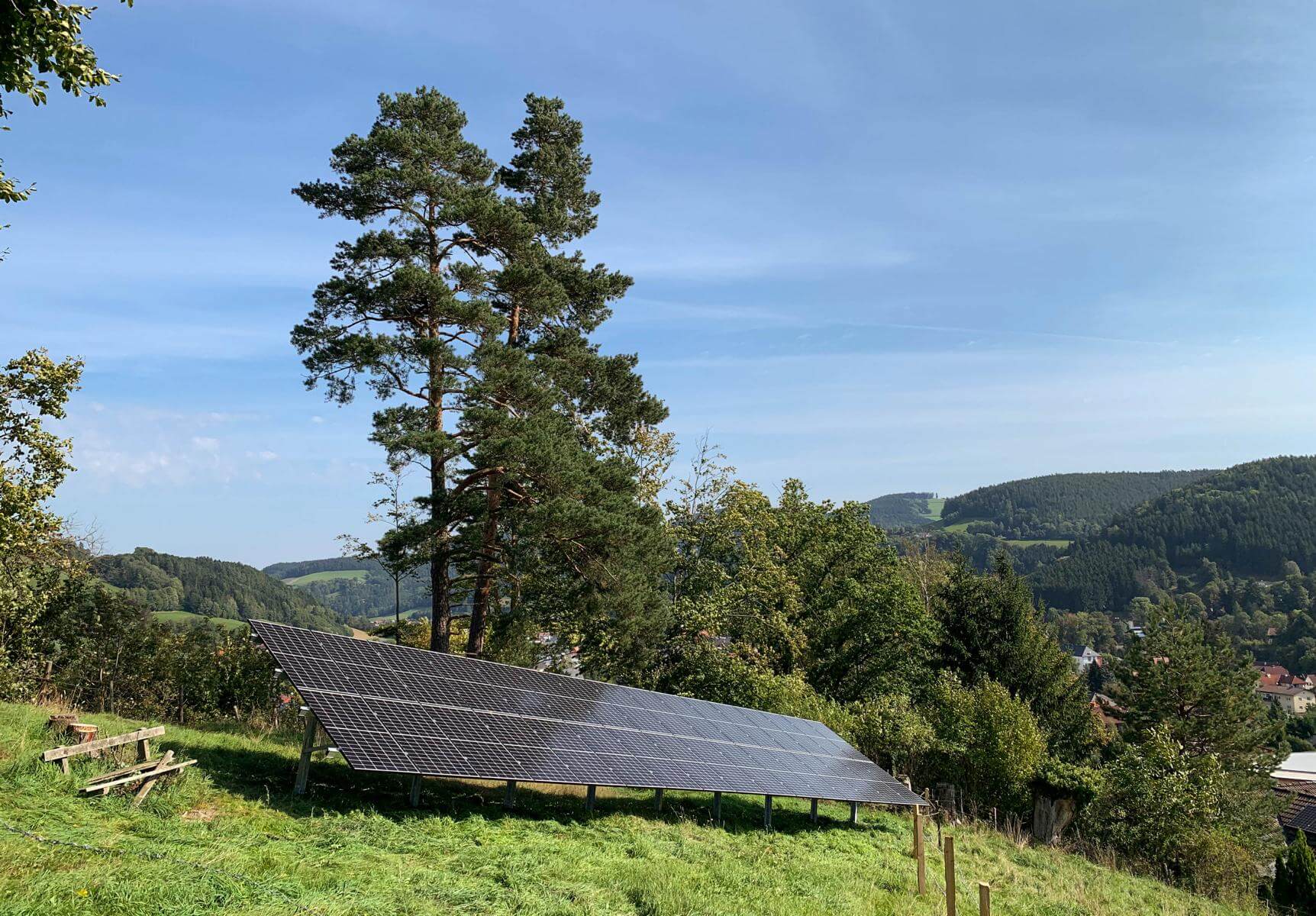

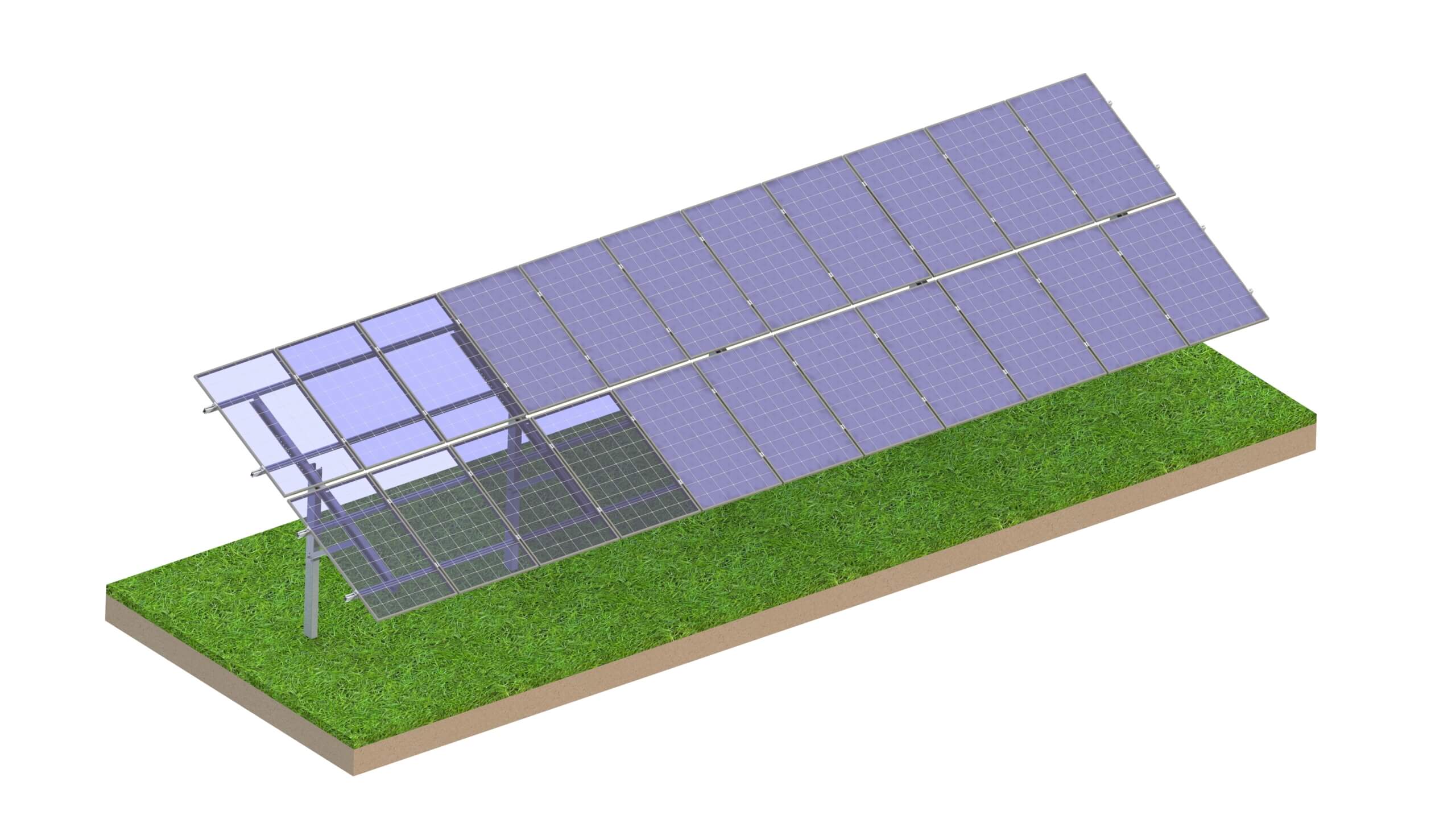

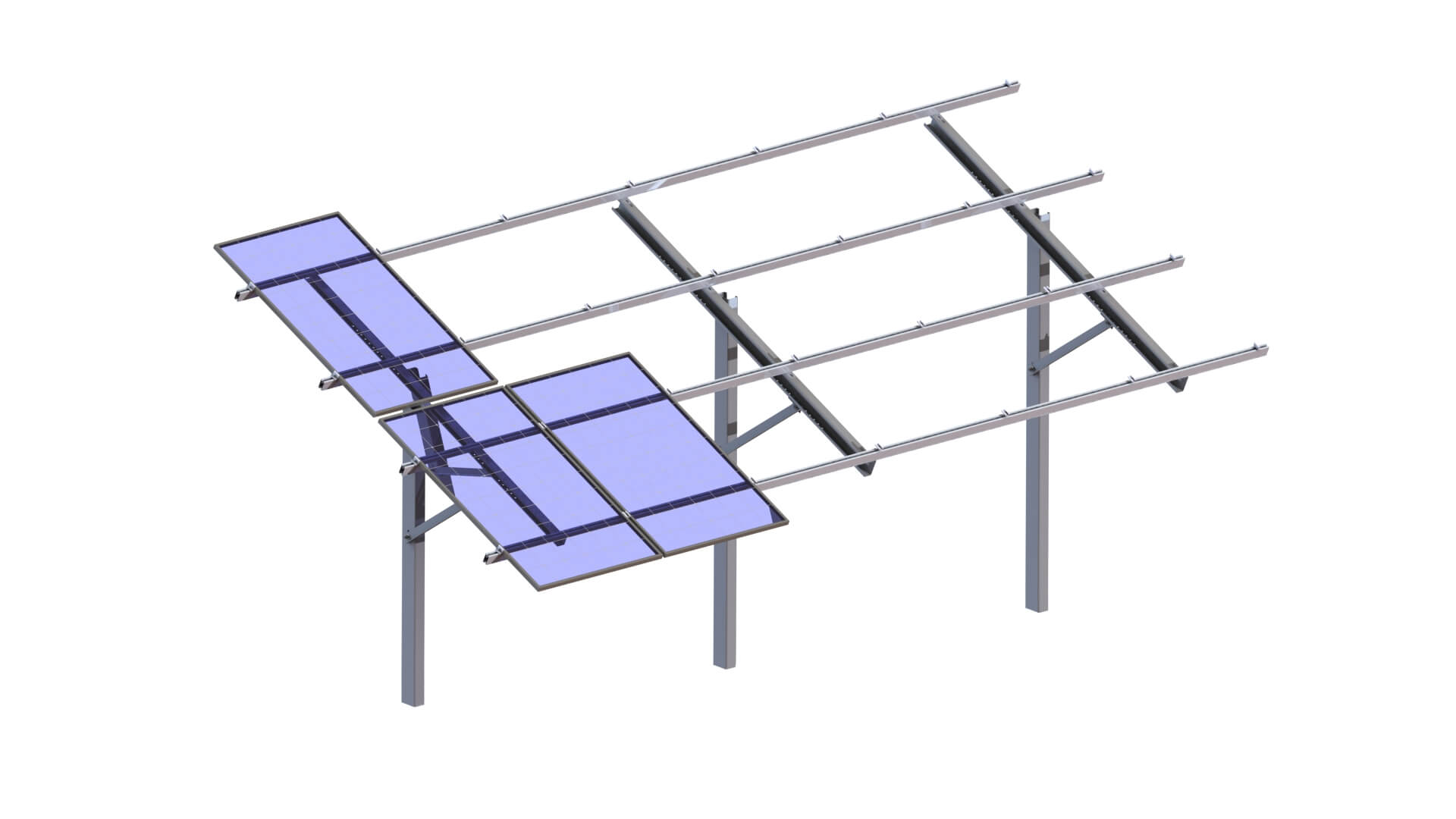

The easyMONO Kit 2x14 is a single-post ground-mounted system from Alumero for open-space installations – according to the manufacturer, it is particularly suitable for installations under 2 MW. The designation 2x14 describes the array layout: two layers of modules stacked vertically on top of one another, with 14 module columns in the row direction, making 28 modules per array. In this configuration, the steel posts are driven directly into the ground – without concrete and without sealing the ground.

Your benefits

Driven anchoring – no concrete, no soil sealing, quick installation
Wider tilt range than the concrete version: 10° to 30° instead of 10° to 25°
Adaptation to terrain contours through adjustment options
Small number of individual components, resulting in rapid assembly
Posts made from S350+ZM430 (Magnelis) with a coating thickness of 35 µm; superstructure made from aluminium EN AW 6063 T66
Landscape maintenance and grazing possible beneath the structure
Fully recyclable, high residual value
25-year manufacturer’s product warranty

Order now

Are you planning an open-space installation? Order the Alumero easyMONO Kit 2x14 (driven into the ground) right here in the Memodo Shop. Planning and structural analysis are carried out on a project-by-project basis – please contact us if you need a design for your site.

Application examples

Ground-mounted installations and solar parks under 2 MW
Sites with uneven terrain, which is levelled out using the adjustment options
Areas that are to continue to be used for grazing or maintained
Projects where soil sealing must be avoided

Technical data

System: Alumero easyMONO, single-post ground-mounted system
Table size: 2x14 – two module layers arranged vertically, 14 module columns
Modules per table: 28
Anchoring: driven
Driving depth: 1600 to 1750 mm or as per soil survey
Table inclination: 10° to 30°
Module orientation: portrait, two stacked on top of each other
Permissible module dimensions: 1,722 to 1,762 × 1,134 mm, frame height 30 to 42 mm
Post material: S350+ZM430 (Magnelis), coating thickness 35 µm, hot-dip galvanised
Module bridge material: steel, individually galvanised
Superstructure material: Aluminium EN AW 6063 T66
Fastening elements: A2-70 stainless steel
Tightening torque for module clamps: 15 Nm (M8 Allen key)
Available table sizes in the range: 2x2 to 2x22, table lengths up to 25 m
Variant for high snow loads: easyMONO ALPIN
Structural analysis: project-specific; ground survey and structural verification to be provided by the client
Warranty: 25-year product warranty
Manufacturer’s item number: 860214
