Alumero easyMONO Kit 2x8 concrete

Manufacturer Art. No.:	862208
Art. Nr.:	16366
Type of roof:	Open space

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16366

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 16366

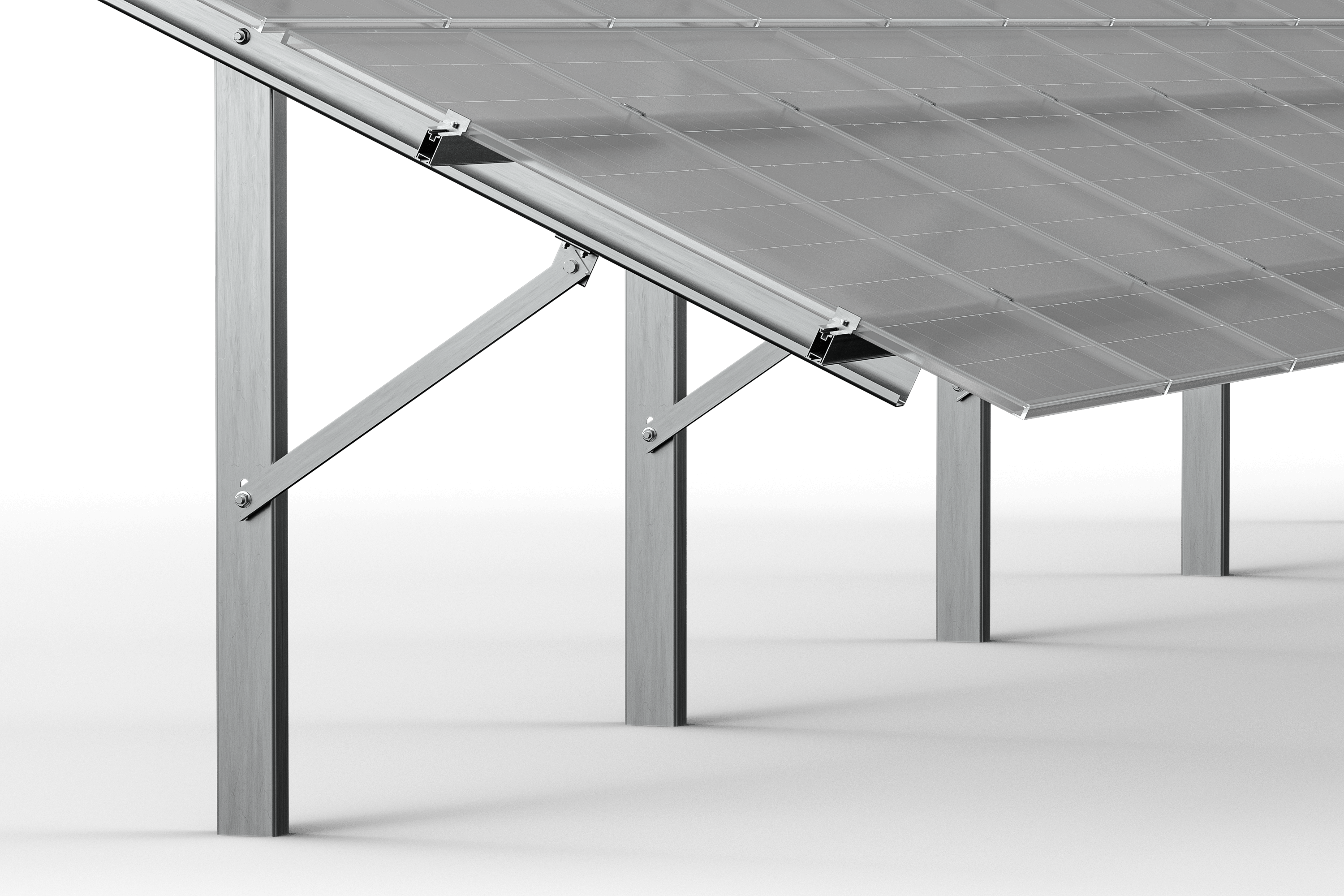

Alumero easyMONO Kit 2x8 Concrete

Are you planning an open-space PV system on concrete foundations and looking for a well-designed, complete system? The Alumero easyMONO Kit 2x8 Concrete is your solution for quick, stable and durable installation.

Product benefits

Pre-assembled kit for 2x8 modules – ready for immediate use
All components for module installation included: support profiles, module clamps (click, silver, incl. earthing pins), connecting elements
No need to spend ages searching for parts – everything fits together perfectly
Ideal for small to medium-sized open-space projects

Product features

Module dimensions: 1,722–1,762 × 1,134 mm, frame height: 30–42 mm
Approved maximum snow load: sk = 1.80 kN/m², maximum wind load: qp = 0.50 kN/m², no further structural analysis required by the manufacturer
Foundation connection: easyMONO steel base for concrete installation (Alumero 800806), material S235
Table inclination: 10° – 30°
Installation: using self-tapping screws, tool-optimised

For the purposes of the guarantee and warranty, both Alumero and we at Memodo require that you have your PV system statically designed and approved using the Alumero SolarProTool. We’ll be happy to assist you with this, of course! You’ll find the relevant data collection form further down this page. Simply fill it in and send it back to us – we’ll then draw up a personalised quote for you with all the necessary information.

Sustainable & regionally produced: Alumero uses metagreen secondary aluminium

Up to 95 per cent lower energy consumption and up to 80 per cent lower CO₂ emissions compared to primary aluminium – thanks to recycling via the metagreen process.
High quality: Secondary aluminium alloys are certified (e.g. ISO 14001, ISO 45001, IATF 16949) and meet the highest technical standards.
An Austrian product, manufactured within the EU: short transport routes, high security of supply and fast delivery.

Bolts and anchors for securing the steel feet to the concrete foundation are not included in the scope of supply.
