Alumero easySEAM TPF angle standing seam clip with quick-fit adapter

Alumero

Manufacturer Art. No.:	802462
Art. Nr.:	14110
Pieces per package unit:	50 per carton 3000 per pallet
Product type:	Trapezoidal sheet bridges / Sheet fasteners
Type of roof:	Flat roof, Pitched roof

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 14110

Prices are only visible to business customers upon successful registration.

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 14110

Tech tip

The key factor for the installation is the sheet thickness: at least 0.5 mm for steel sheet and at least 0.7 mm for aluminium and Rheinzink. Below these thicknesses, the groove in the fixing screw does not provide sufficient hold. Tighten the M10x1 fixing screw to 18 Nm, and the clamps and connectors to 15 Nm (M8) or 30 Nm (M10) – do not rely on feel, as an over-tightened groove is irreparable.

Two further restrictions from the installation instructions: a maximum of 3 m or 3 modules in the direction of the rail, and a minimum distance of 20 mm from the end of the profile to the clamp. Alumero does not recommend use near the sea due to the risk of corrosion, and the aluminium structure must only come into contact with substances with a pH value between 4.5 and 8.5. Work on the roof covering should be carried out by a roofer.

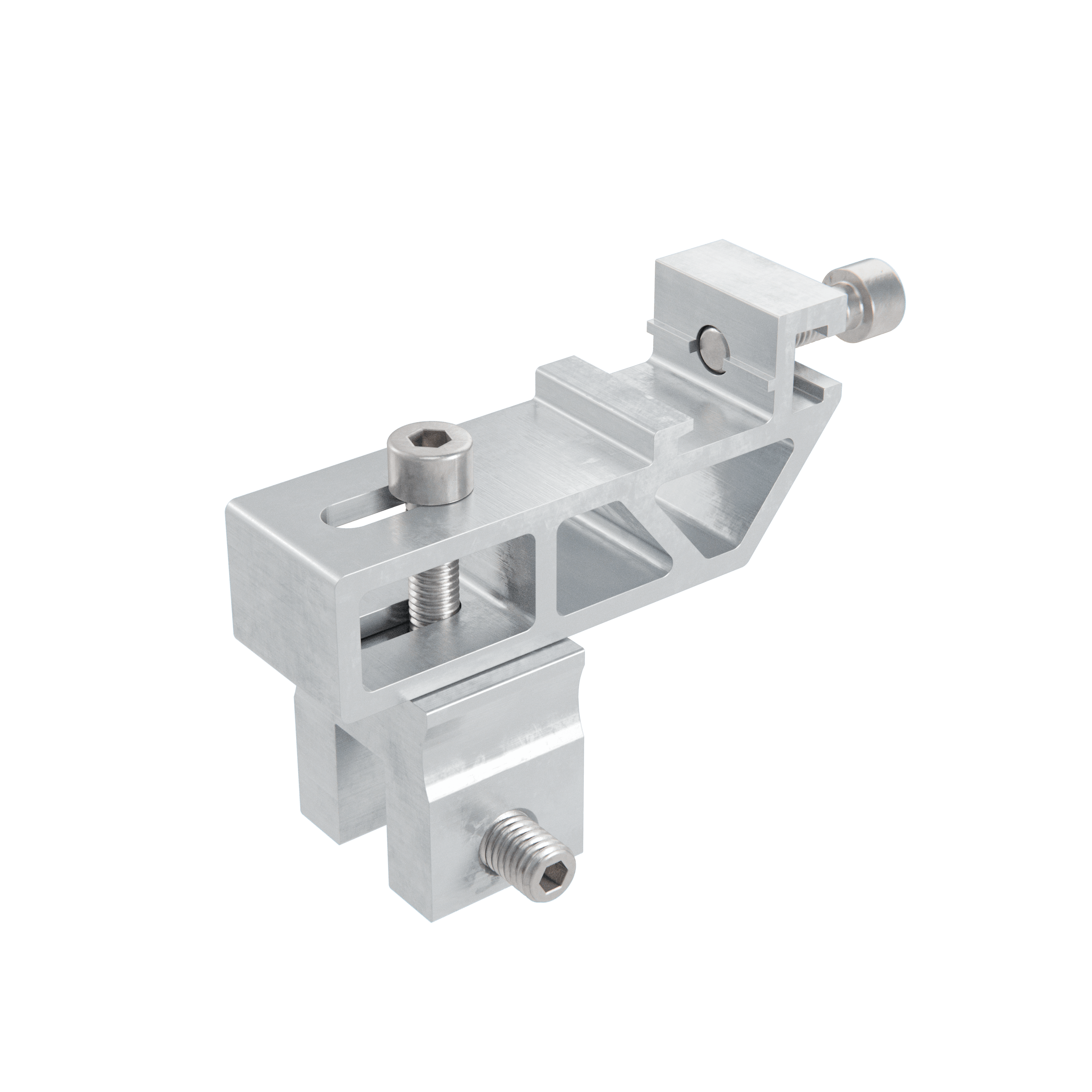

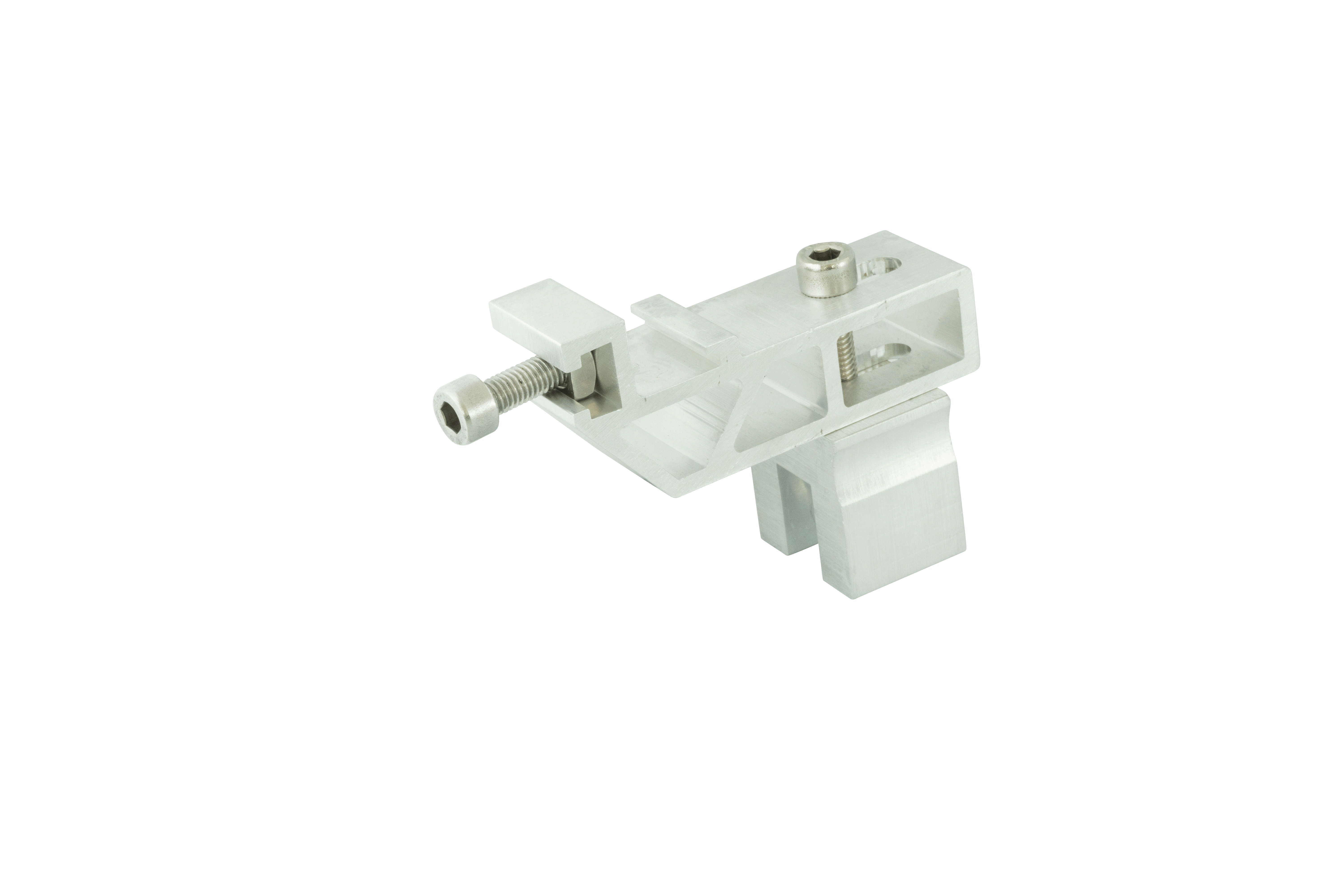

Alumero easySEAM TPF angled standing seam clamp with quick-fit adapter

With the TPF angled standing seam clamp from the Alumero easySEAM system, you can install PV panels on standing seam roofs without penetrating the roof membrane. The clamp is placed on the seam, and the fixing screw presses against the seam – the roof membrane remains intact and existing roof warranties are retained. The quick-fit adapter is pre-assembled at the factory; you simply fit the support profile directly onto it.

Your benefits

Non-penetrating fixing via a fixing screw – no need to cut into the roof membrane
Existing roof warranties remain valid
Quick-fit adapter pre-assembled at the factory – fit the support profile with no extra effort
Clamp jaws positively matched to undefined
Aluminium EN AW 6063 T66 and V2A stainless steel, small parts made from A2-70, EPDM seal
Roof pitch 7° to 60°, building height up to 25 m
Modules can be installed horizontally or vertically

Application examples

PV installation on undefined using continuous support profiles
Refurbishment and retrofitting where drilling into the roof cladding is not permitted
Vertical module orientation, for which the TPF variant is designed

Technical data

System: Alumero easySEAM
Variant: TPF – for continuous support profiles, with pre-assembled quick-fit adapter
Seam type: undefined
Fixing: non-penetrating via fixing screw
Material of load-bearing parts: Aluminium EN AW 6063 T66, V2A stainless steel
Material of small parts: stainless steel A2-70
Seal: EPDM
Permissible roof pitch: 7° to 60°
Maximum building height: 25 m
Minimum sheet thickness: steel 0.5 mm, aluminium and Rheinzink 0.7 mm
Tightening torque for M10x1 fixing screw: 18 Nm
Tightening torque for clamps and connectors: 15 Nm (M8), 30 Nm (M10)
Maximum panel size in the direction of the rails: 3 m or 3 modules
Load verification: project-specific using the Alumero Solar.Pro.Tool
Manufacturer’s item number: 802462
