DEHN BLITZDUCTORconnect ML2 BD 48 combined surge arrester
| Type of manufacturer: | BCO ML2 BD 48 |
|---|---|
| Manufacturer Art. No.: | 927245 |
| Art. Nr.: | 16387 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16387
Description

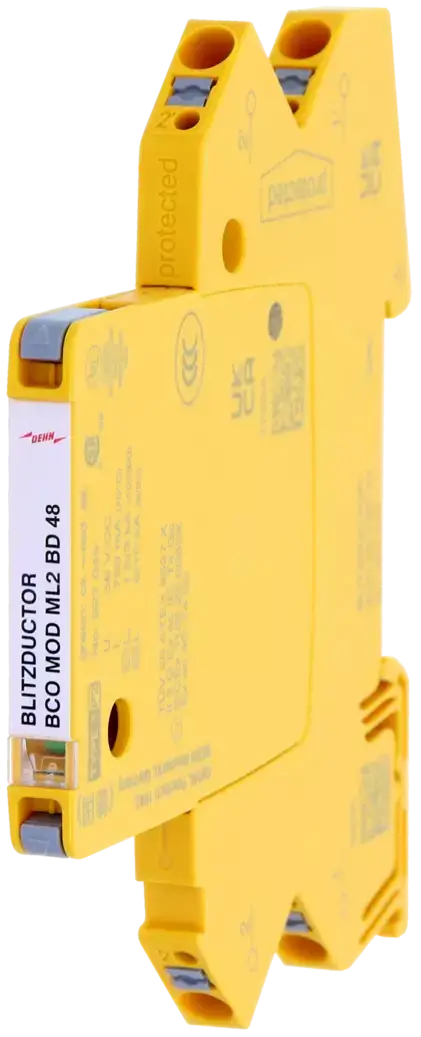

BLITZDUCTORconnect ML2 BD 48

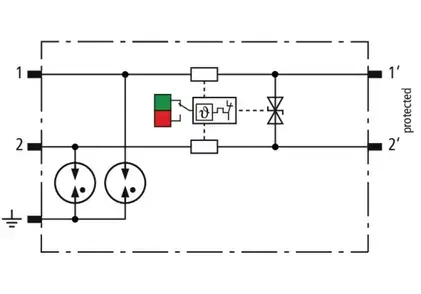

The DEHN BCO ML2 BD 48 is a space-saving, modular combination arrester designed to protect a twin-core, earth-potential-free, symmetrical interface against lightning strikes and overvoltages. With a width of just 6 mm and push-in connection technology, it enables particularly compact and easy installation. The integrated LifeCheck arrester monitoring system with status indicator simplifies condition monitoring. Integrated signal isolation enables the signal circuit to be safely disconnected for maintenance purposes. The arrester is suitable for applications in the fields of information technology and measurement and control technology and can be used at interfaces 0 to 2 and higher in accordance with the lightning protection zone concept.
Product advantages
- Space-saving design with a width of just 6 mm
- Protection for a twin-core cable in symmetrical interfaces
- Combined lightning and surge protection
- Push-in connection technology for quick and easy wiring
- Integrated LifeCheck arrester monitoring
- Status indicator for easy condition monitoring
- Signal isolation for maintenance and servicing
- Suitable for use in accordance with the lightning protection zone concept
Product features
- Arrestor class: L / Type 1 P2
- Pulse categories: D1, C1, C2, C3, B2
- Rated voltage: 48 V
- Maximum continuous DC voltage: 56 V
- Maximum continuous AC voltage: 39.6 V
- Rated current at 70 °C: 0.75 A
- Cut-off frequency (wire-to-wire): 7.2 MHz
- Connection: Push-in
- Mounting: 35 mm top-hat rail

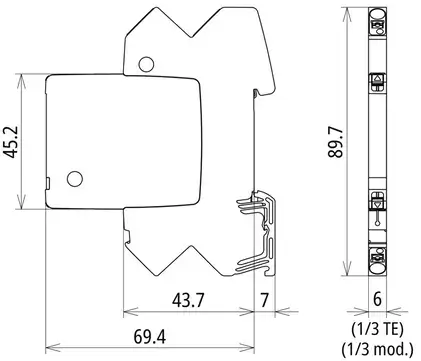

- Width: 6 mm
- Protection class: IP20
