DEHNbloc Maxi DBM 1 440 FM
| Type of manufacturer: | DBM 1 440 FM |
|---|---|
| Manufacturer Art. No.: | 961145 |
| Art. Nr.: | 13917 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
- New
Available from 22.05.2026
Product number:
13917
Description
DEHNbloc Maxi DBM 1 440 FM
The DEHNbloc Maxi DBM 1 440 FM is a single-pole Type 1 arrester that reliably protects your electrical installations against direct lightning currents. Thanks to RADAX Flow technology, the device effectively limits post-lightning currents and prevents fuses from tripping. It is particularly suitable for applications with high short-circuit currents of up to 100 kA. The compact design, the green/red status indicator and the FM changeover contact make integration into your protection concept particularly straightforward.
Product benefits
- High lightning current discharge capacity up to 35 kA (10/350 µs)
- Limitation and suppression of follow-current by RADAX-Flow
- Suitable for use in systems with short-circuit currents up to 100 kA
- Green/red function indicator for quick status checks
- Remote monitoring thanks to integrated FM changeover contact
- Compatible with DEHNguard without cable length – directly coordinated
Product features
- Lightning impulse current (Iimp): 35 kA (10/350 µs)
- Maximum continuous voltage (UC): 440 V AC
- Protection level (UP): ≤ 2.5 kV
- Mains follow-current withstand capacity: up to 50 kA rms
- Response time: ≤ 100 ns
- Tested for max. short-circuit current: 100 kA rms
- Max. upstream fuse: up to 500 A gG

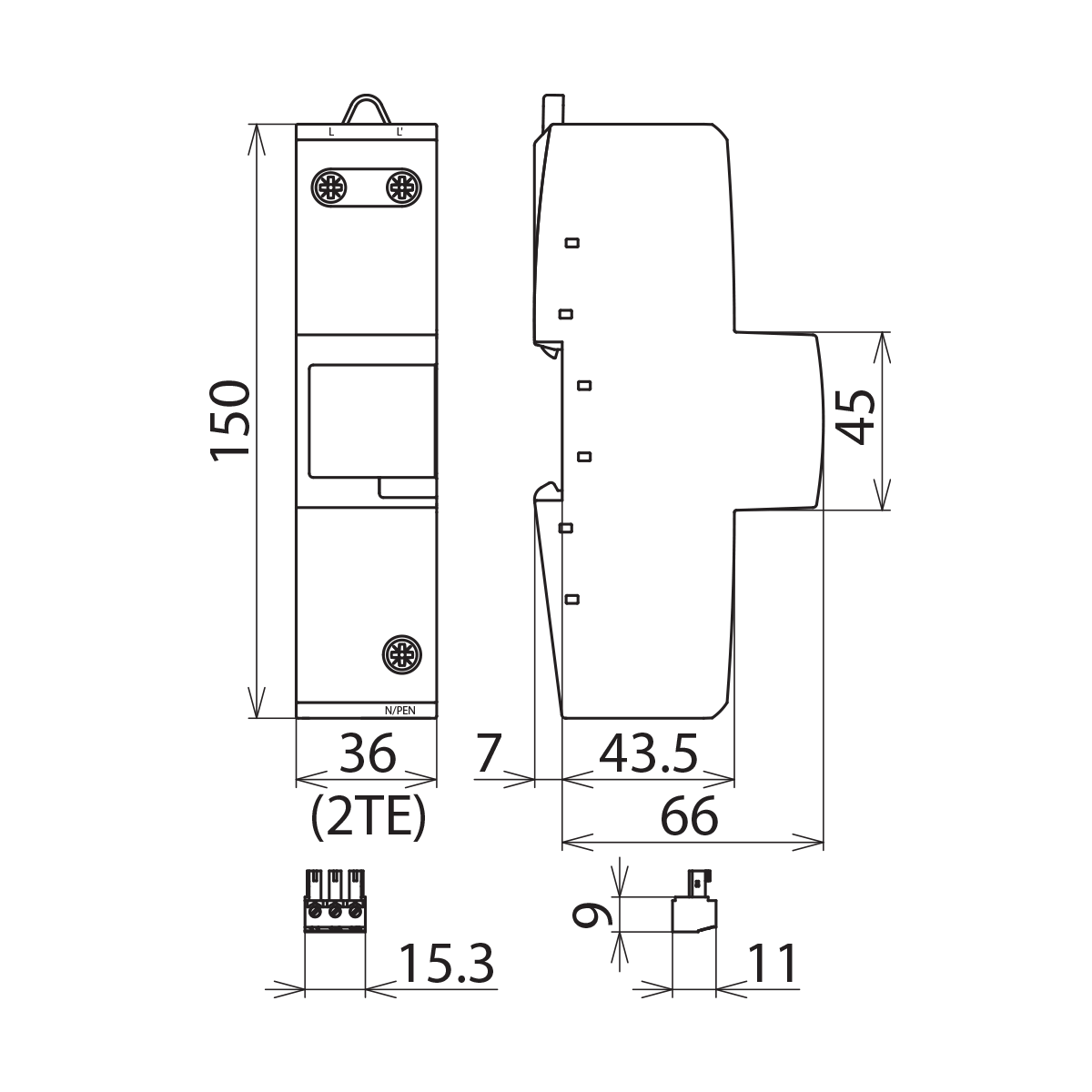

- Mounting dimensions: 2 HP, DIN rail (EN 60715)
- Protection class: IP 20, for indoor use
- FM contact: AC 250 V / 0.5 A, DC up to 250 V / 0.1 A
