DEHNbox DBX TC B 180
| Type of manufacturer: | DBX TC B 180 |
|---|---|
| Manufacturer Art. No.: | 922220 |
| Art. Nr.: | 13964 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
13964
Description

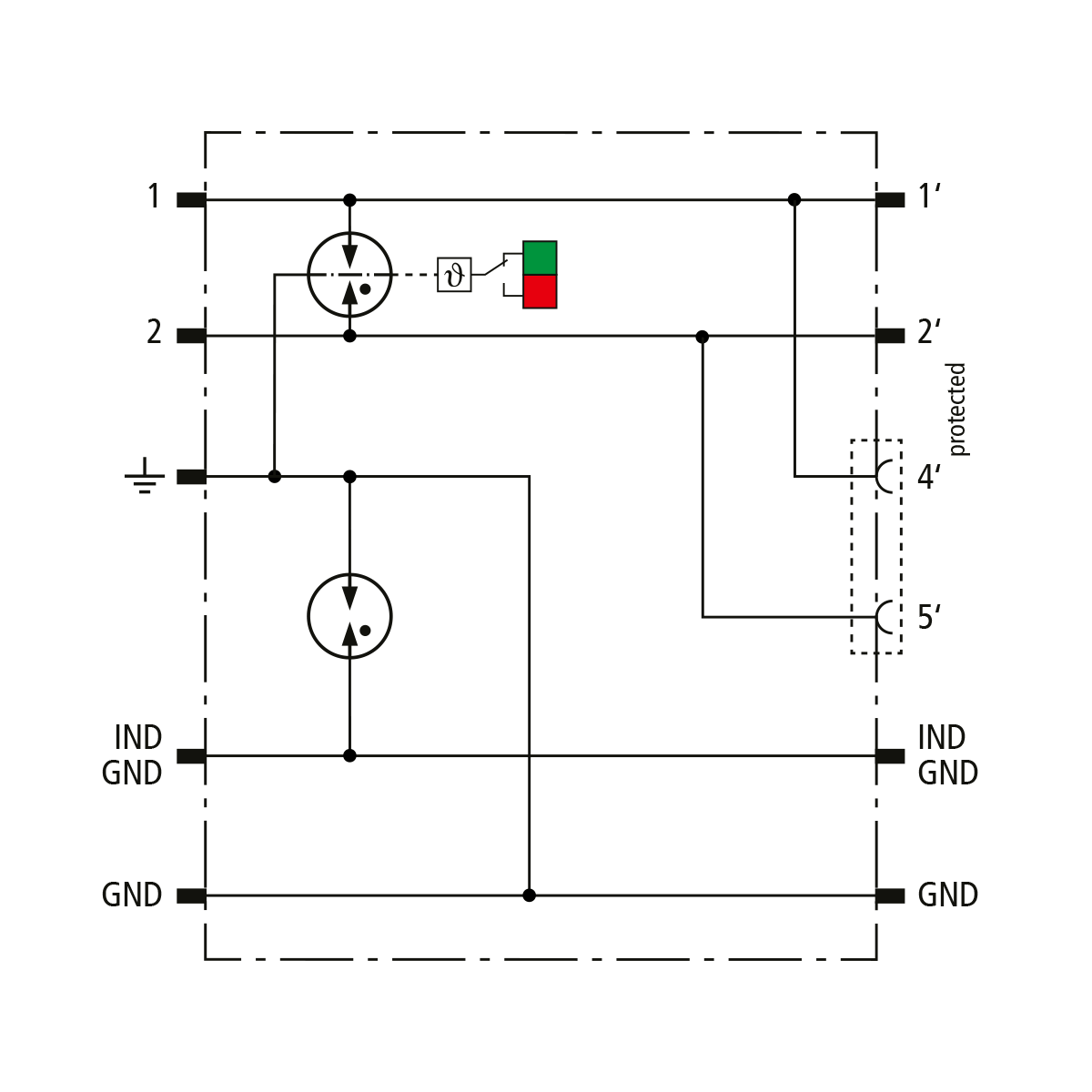

DEHNbox DBX TC B 180
The DEHNbox DBX TC B 180 provides effective protection for telecommunications interfaces against overvoltage. The compact combination arrester in a robust plastic housing is suitable for wall mounting and offers quick installation thanks to push-in technology and an integrated status indicator. It is compatible with modern VDSL and G.fast technologies and is ideal for interfaces in accordance with lightning protection zone concept 0A–2 and higher.
Product benefits
- Optimal protection for VVDSL, SVVDSL and G.fast interfaces
- Compact design for space-saving installation
- Quick connection thanks to push-in technology
- Integrated status indicator for easy function checking
- Compatible with lightning protection zone concept (0A–2)
- Flexible connection options: twisted pair or RJ45
Product features
- Arrestor class: L, impulse categories D1, C1, C2, C3, B2
- Rated voltage: 180 V DC / 127 V AC
- Total lightning surge current: 7.5 kA (10/350 µs)
- Protection level Ad-PG at C2 ≤ 650 V
- Cutoff frequency: 425 MHz (100 Ω)
- Capacitance Ad-Ad ≤ 10 pF, Ad-PG ≤ 20 pF
- Protection class: IP 20
- Operating temperature range: -25 °C to +80 °C
- Connection: Push-in input / Push-in or RJ45 output
- Housing material: Polyamide PA 6.6
