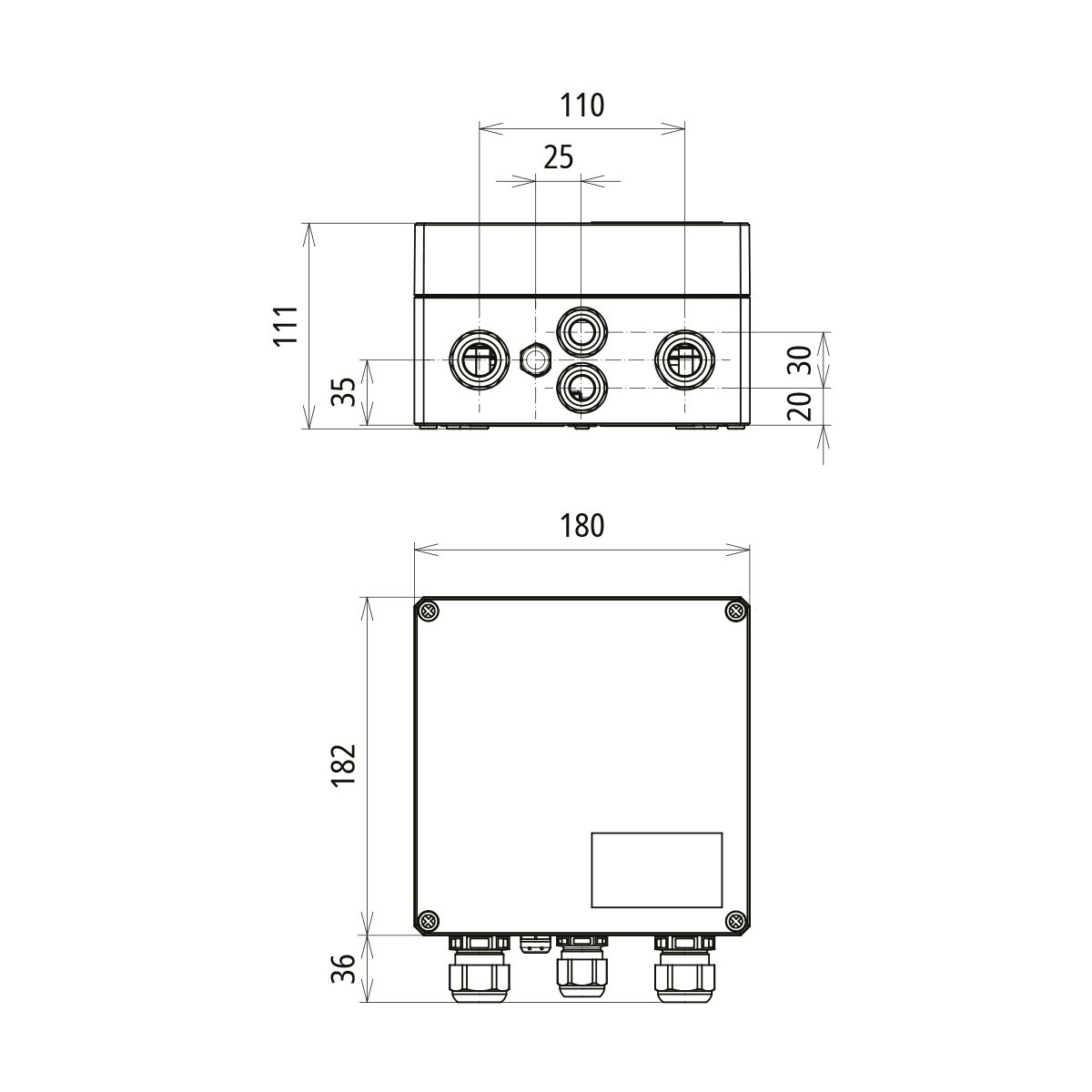

DEHNcube 2 YPV 1+2 1000 1M 2S FM
| Type of manufacturer: | DCU 2 YPV 1+2 1000 1M 2S FM |
|---|---|
| Manufacturer Art. No.: | 900975 |
| Art. Nr.: | 14013 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14013
Description
DEHNcube 2 YPV 1+2 1000 1M 2S FM, GAK Type 1 + 2, IP65, 1 MPPT and 2 strings at 1000 V DC
The DEHNcube PV DCU 2 YPV 1+2 1000 1M 2S FM provides reliable protection for your PV system against overvoltages. The generator connection box is designed for systems up to 1000 V DC and is ideal for protecting an MPP input with two strings. Thanks to integrated isolating terminals and push-in connection technology, you can install it quickly and safely – ideal for outdoor use.
Product benefits
- Protection for one MPP input and two strings up to 1000 V DC
- Combined Type 1+2 surge protection in accordance with EN 61643-31
- Robust housing with IP65 protection rating for outdoor use
- Quick installation thanks to push-in terminals
- Visual status indication via green/red indicator
- Transparent cover for immediate product identification
Product features
- Max. PV voltage: 1000 V DC
- Short-circuit withstand capacity: 10 kA
- Total surge current (8/20 µs): 40 kA
- Rated load current: 30 A
- Lightning surge current (10/350 µs): 6.25 kA per pole (DC+/DC- -> PE)
- Protection level: ≤ 3.8 kV
- Operating temperature: -35 °C to +60 °C
- Protection class: IP65, suitable for outdoor use
- Max. connection cross-section: 35 mm² multi-strand, 25 mm² fine-strand
- Weight: 1.41 kg
