DEHNcube 2 YPV 1+2 1200 1M 1S MC4
| Type of manufacturer: | DCU 2 YPV 1+2 1200 1M 1S MC4 |
|---|---|
| Manufacturer Art. No.: | 900985 |
| Art. Nr.: | 14007 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14007
Description

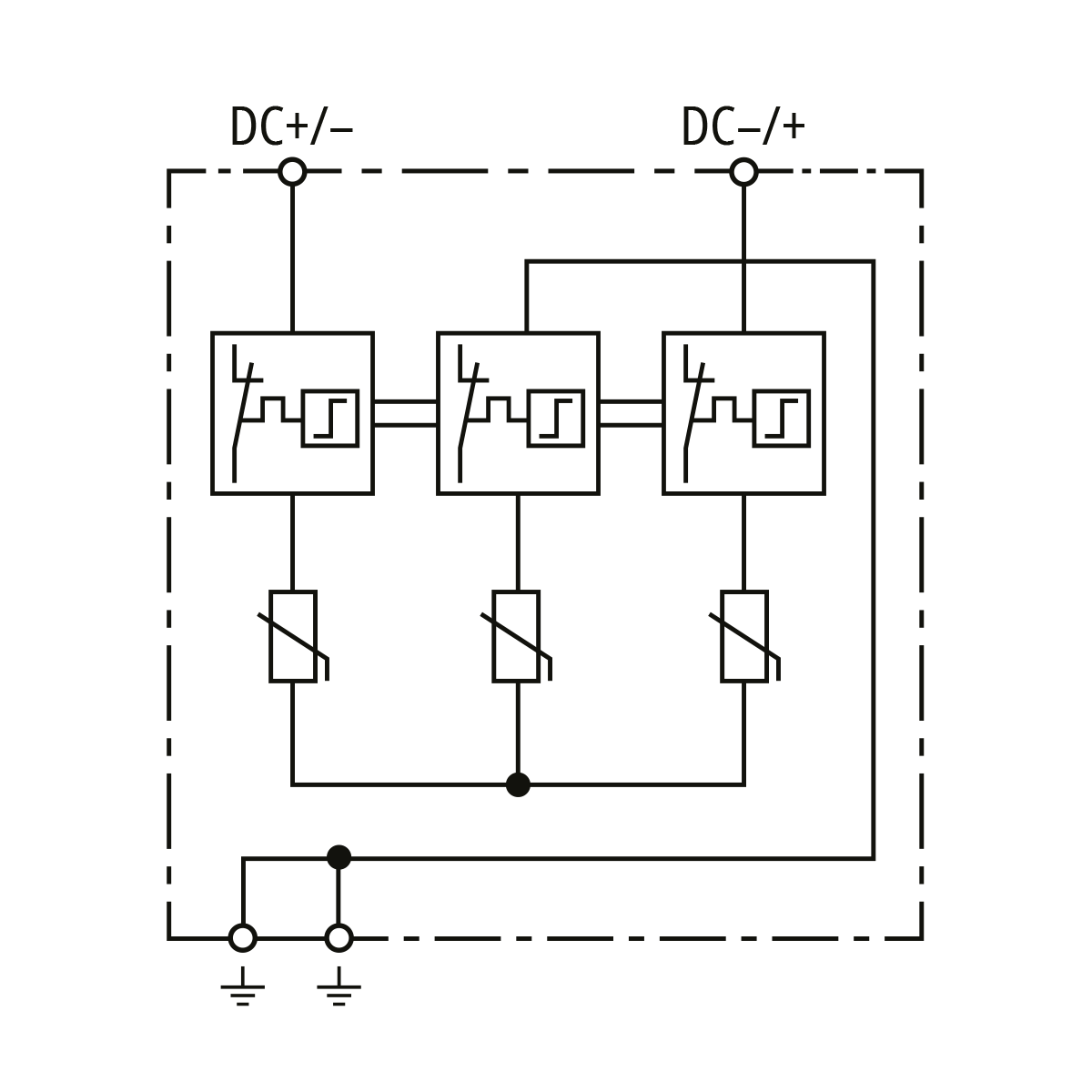

DEHNcube 2 YPV 1+2 1200 1M 1S MC4, GAK Type 1+2 in an IP65 enclosure for PV systems. 1 MPPT with 1 string up to 1200 V DC
Do you want to provide your PV system with optimum protection against surges? The DEHNcube DCU 2 YPV 1+2 1200 1M 1S MC4 is a compact generator connection box for one MPP input and one string up to 1200 V DC. With integrated Type 1+2 surge protection, an IP65 enclosure and MC4 connections, you’re on the safe side – ideal for modern indoor photovoltaic systems.
Product benefits
- Combined Type 1+2 surge protection in accordance with EN 61643-31
- Protection for one MPP and one PV string up to 1200 V DC
- Original MC4 connectors for safe and standard-compliant installation
- Transparent cover with product labelling for easy inspection
- Pressure equalisation element for long-term sealing and safety
- IP65 protection rating – perfect for demanding indoor environments
Product features
- Max. PV voltage: 1200 V DC
- Total discharge current (8/20 µs): 40 kA
- Lightning surge current (10/350 µs): 12.5 kA
- Rated load current: 40 A
- Protection level: < 3.8 kV
- Response time: ≤ 25 ns
- Operating temperature: –35 °C to +60 °C
- Protection rating: IP65
- Connection: 2x MC4 plug + 2x MC4 socket + 2x M20

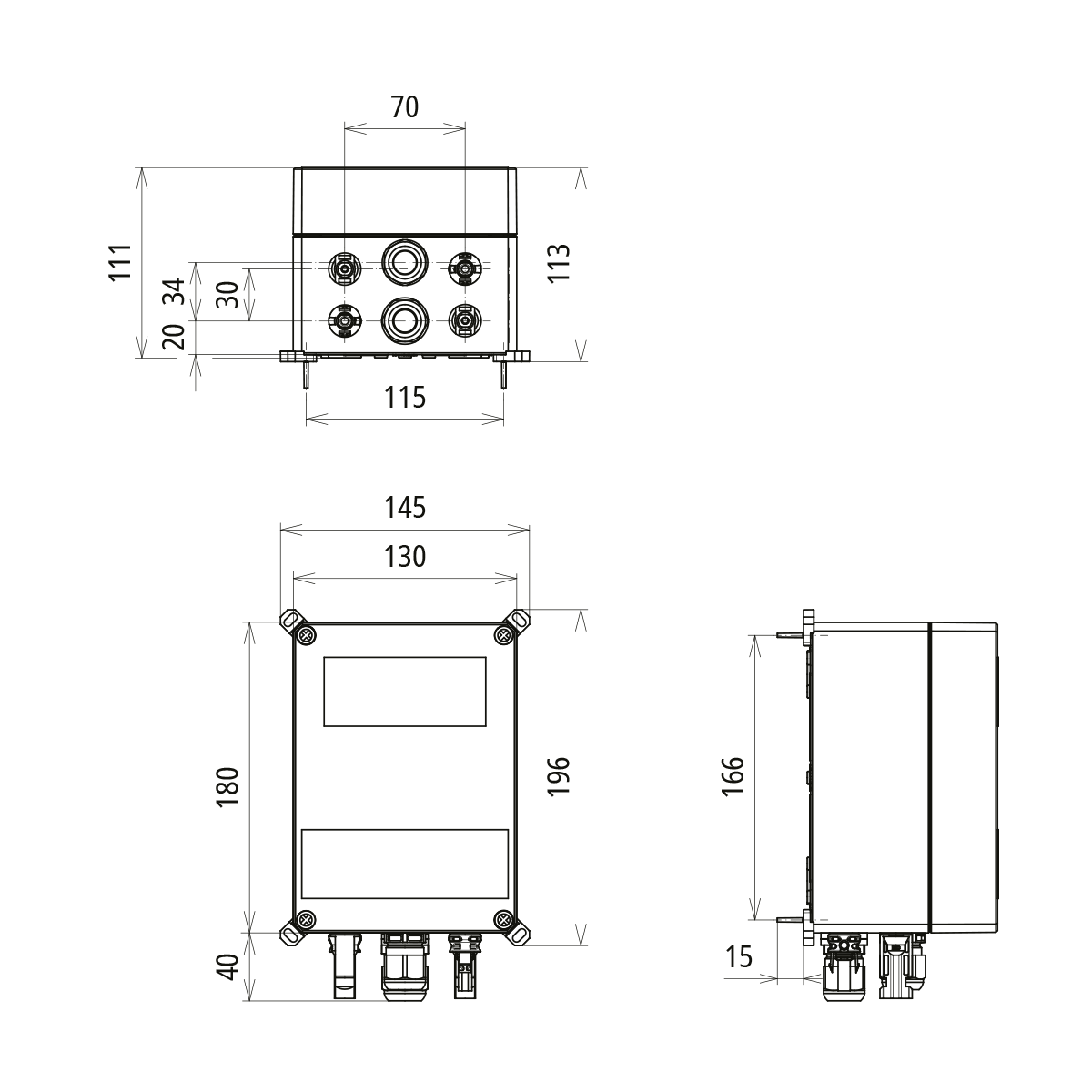

- Dimensions: Compact housing, weight approx. 1.17 kg
