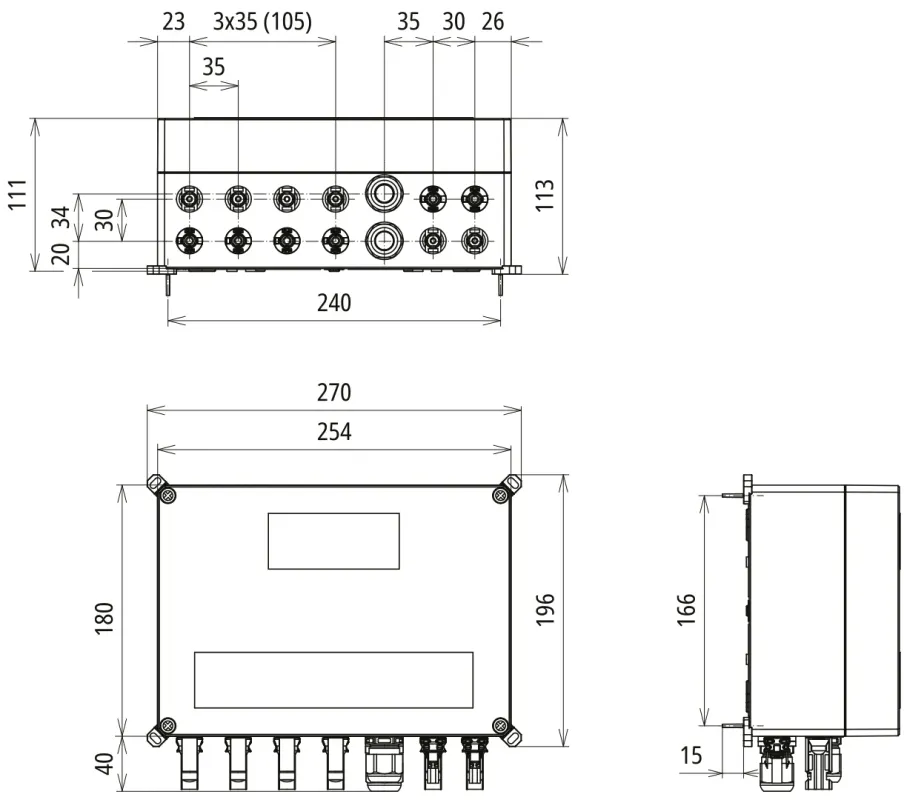

DEHNcube 2 YPV 1+2 1200 2M 2S MC4

DEHNcube 2 YPV 1+2 1200 2M 2S MC4, GAK Type 1+2, IP65, 2 MPPT units, each with 2 strings at 1100 V DC

The DEHNcube PV DCU 2 YPV 1+2 1200 2M 2S MC4 provides reliable surge protection for your Photovoltaic system. The generator connection box is suitable for PV systems up to 1200 V DC and provides two MPP inputs, each with two strings. Thanks to integrated Type 1+2 surge protection, MC4 connectors and an IP65-rated enclosure, it is ideal for indoor use. The transparent cover also makes it easy to check the device’s status.

Product benefits

• Protection of two MPP inputs, each with two strings
• Type 1+2 surge protection in accordance with EN 61643-31
• Pre-assembled with MC4 connectors for easy installation
• Robust housing with IP65 protection for indoor use
• Transparent cover for quick functional testing
• High discharge capacity of up to 40 kA (8/20 µs)

Product features

• MPPT/string count: 2 MPPTs, 2 strings each
• Max. PV voltage: 1200 V DC
• Short-circuit withstand capacity: 10 kA
• Lightning surge current (10/350 µs): 12.5 kA total
• Max. surge current (8/20 µs): 40 kA
• Response time: ≤ 25 ns
• Protection class: IP 65 (suitable for indoor use)
• Connection via 6x MC4 plugs & 6x MC4 sockets
• Housing colour: Grey with transparent cover
• Weight: 2.36 kg
