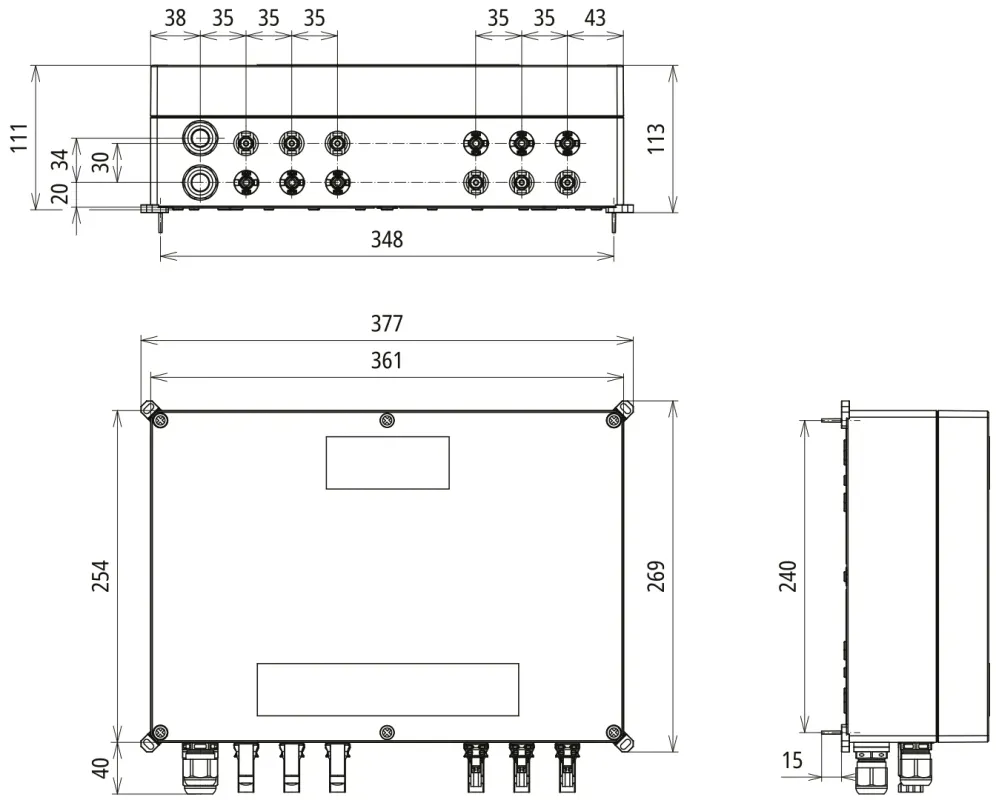

DEHNcube 2 YPV 1+2 1200 3M 1S MC4

DEHNcube 2 YPV 1+2 1200 3M 1S MC4, GAK Type 1+2, IP65, with 3 MPPT units (each with 1 string), 1200 V DC

The DEHNcube PV DCU 2 YPV 1+2 1200 3M 1S MC4 FM provides reliable protection for your PV system against surge damage. The generator connection box is suitable for systems up to 1200 V DC and protects three MPP inputs as well as one string. Thanks to the integrated Type 1+2 combination arrester and pre-assembled MC4 connectors, you can install the system easily and safely. Ideal for indoor use and for demanding PV systems with up to 3 MPP trackers.

Product benefits

• Provides protection for up to three MPP inputs and one string
• Combined Type 1 + Type 2 surge protection for comprehensive safety
• Compatible with PV systems up to 1200 V DC
• Easy installation thanks to pre-assembled original MC4 plugs and sockets
• Robust housing with IP65 protection for indoor use
• Transparent cover with product labelling for quick inspection

Product features

• 3 MPP trackers / 1 string
• Max. PV voltage: 1200 V DC
• Total surge current (8/20 µs): 40 kA
• Lightning surge current (10/350 µs): 12.5 kA
• Rated load current: 40 A
• Response time: ≤ 25 ns
• Operating temperature: –35 °C to +60 °C
• Protection class: IP65
• Connection via original MC4, conductor cross-section up to 10 mm²
• With pressure equalisation element and transparent cover
