DEHNcube 2 YPV 1100 2M 1S MC4
| Type of manufacturer: | DCU 2 YPV 1100 2M 1S MC4 |
|---|---|
| Manufacturer Art. No.: | 900924 |
| Art. Nr.: | 14021 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14021
Description

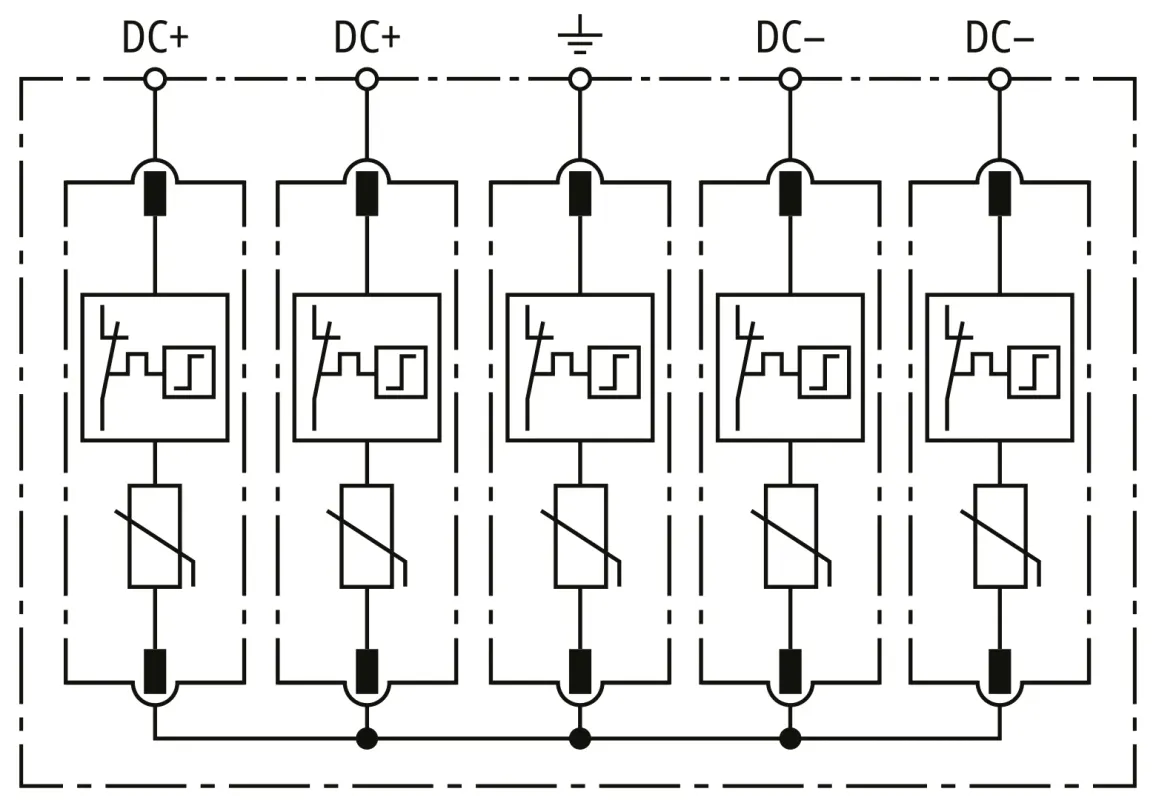

DEHNcube 2 YPV 1100 2M 1S MC4, GAK Type 2, IP65, 2 MPPT channels, each with 1 string up to 1100 V DC
The DEHNcube PV DCU 2 YPV 1100 2M 1S MC4 provides reliable surge protection for your PV system. The generator connection box is designed for PV systems up to 1100 V DC and protects two MPP inputs and one string per input. Thanks to pre-assembled MC4 connectors, it is ready for immediate use and ideally suited for outdoor applications.
Product benefits
- Protects two MPP inputs and strings simultaneously
- Robust housing with IP65 protection rating for outdoor installation
- Integrated Type 2 / Class II surge protection in accordance with IEC 61643-31
- Transparent cover with product labelling for easy inspection
- Pressure equalisation element prevents condensation inside the housing
- Pre-assembled MC4 plugs and sockets for easy installation
Product features
- Number of MPPT / strings: 2 MPP inputs, one string each
- Max. PV voltage: 1100 V DC
- Rated surge current (8/20 µs): 20 kA
- Max. surge current (8/20 µs): 40 kA
- Protection level: ≤ 4 kV
- Rated load current: 40 A
- Response time: ≤ 25 ns
- Operating temperature range: -35 °C to +50 °C
- Protection class: IP65
- Housing with transparent cover and pressure equalisation element
