DEHNcube 2 YPV 1100 2M 1S
| Type of manufacturer: | DCU 2 YPV 1100 2M 1S |
|---|---|
| Manufacturer Art. No.: | 900921 |
| Art. Nr.: | 14012 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14012
Description

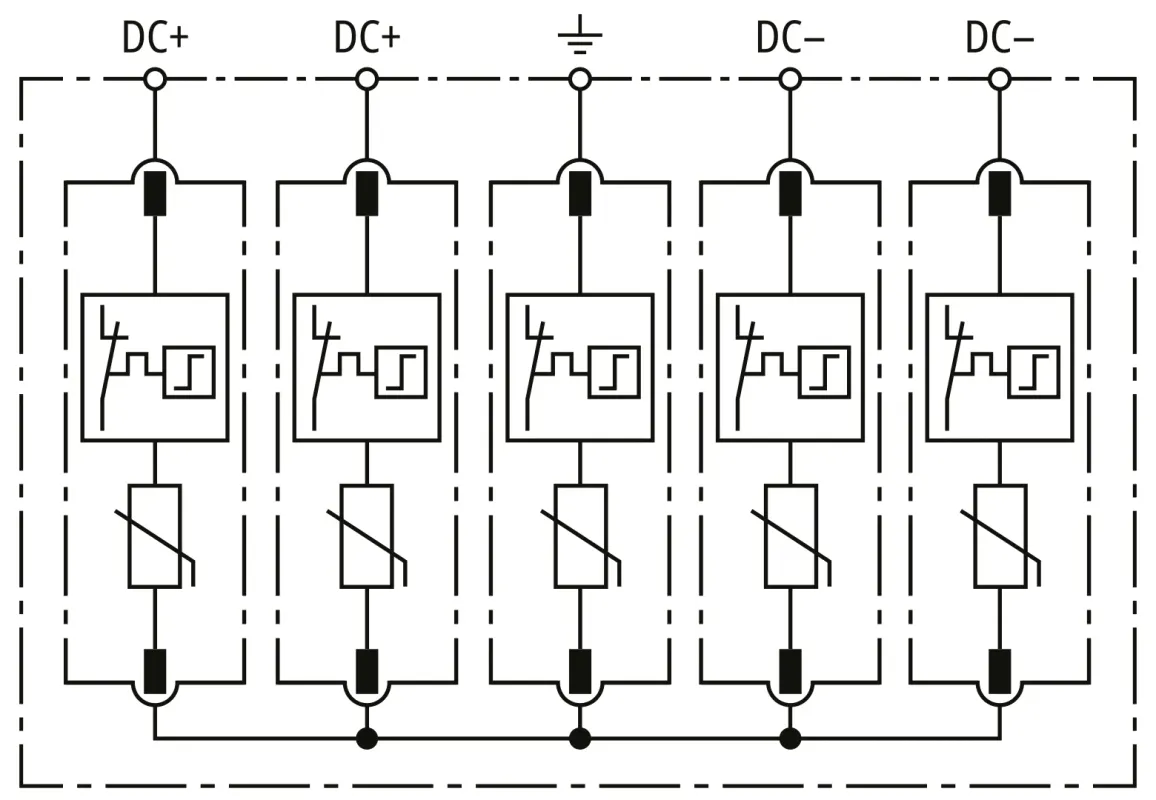

DEHNcube 2 YPV 1100 2M 1S, Type 2 surge protection device, IP65, 2 MPPT and 1 string each at 1100 V DC
The DEHNcube PV DCU 2 YPV 1100 2M 1S provides reliable surge protection for your PV system. This generator connection box is designed for PV systems up to 1100 V DC and protects two MPP inputs and one string. Thanks to its IP65-rated enclosure and push-in terminals, the unit can be easily installed outdoors – ideal for a durable and safe system architecture.
Product benefits
- Reliably protects two MPP inputs and one string each against overvoltage
- Ideal for outdoor use thanks to IP65 protection
- Quick and safe connection via push-in terminals
- Visual status indication via integrated green/red indicator
- Transparent cover with product labelling ensures a clear overview

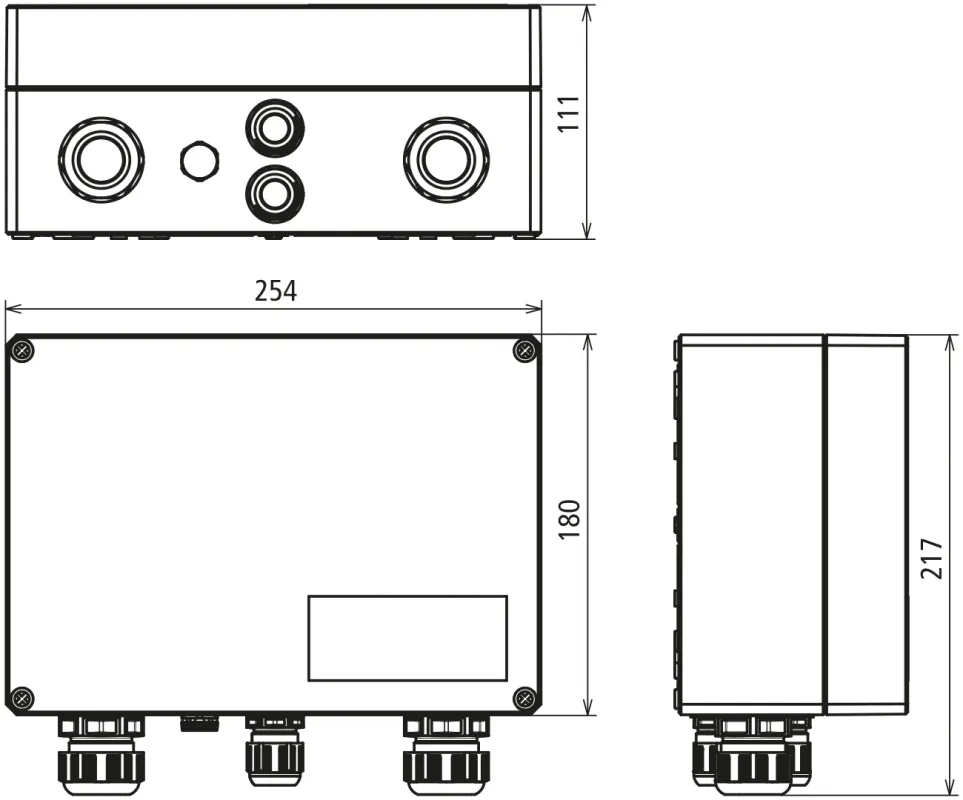

- Compact and robust housing for easy integration
Product features
- 2 MPPTs, 1 string each
- Max. PV voltage: 1100 V DC
- Rated surge current: 20 kA (8/20 µs)
- Max. surge current: 40 kA (8/20 µs)
- Protection level: ≤ 4 kV
- Operating temperature range: -35 °C to +60 °C
- Protection class: IP65
- DC connection cross-section: 2.5–6 mm² fine-stranded
- Cover design: Transparent cover with product labelling
- Installation location: Outdoor
