DEHNcube 2 YPV 1100 2M 2S
| Type of manufacturer: | DCU 2 YPV 1100 2M 2S |
|---|---|
| Manufacturer Art. No.: | 900923 |
| Art. Nr.: | 14024 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14024
Description

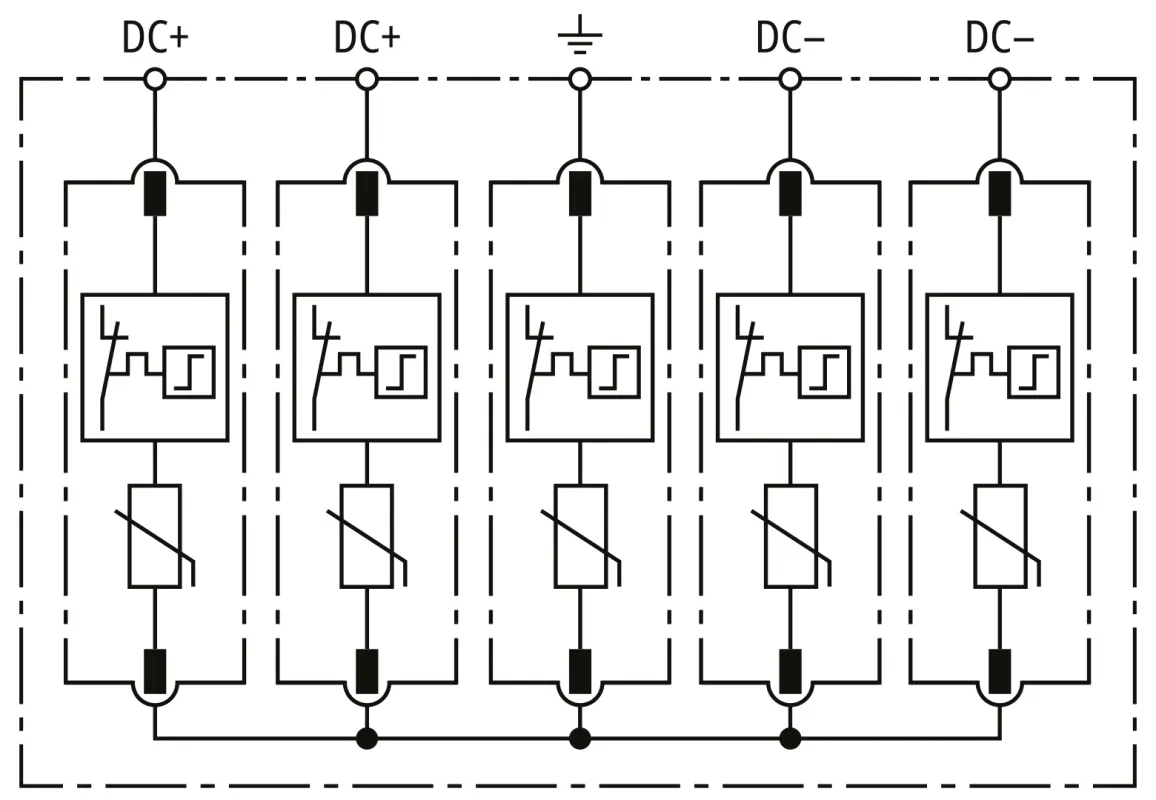

DEHNcube 2 YPV 1100 2M 2S, GAK Type 2, IP65, 2 MPPT and 2 strings each up to 1100 V DC
The DEHNcube PV DCU 2 YPV 1100 2M 2S provides reliable protection for your Photovoltaic system against overvoltages. The generator connection box is suitable for two MPP inputs, each with two strings, at a maximum PV voltage of up to 1100 V DC. Thanks to the integrated Type 2 surge protection devices and push-in terminals, you can install it efficiently and safely – ideal for outdoor use.
Product benefits
- Optimal surge protection for PV systems up to 1100 V DC
- Protection for two MPP inputs, each with two strings
- Easy installation thanks to push-in terminals
- Robust housing with IP65 rating – perfect for outdoor use
- Transparent cover for quick functional checks

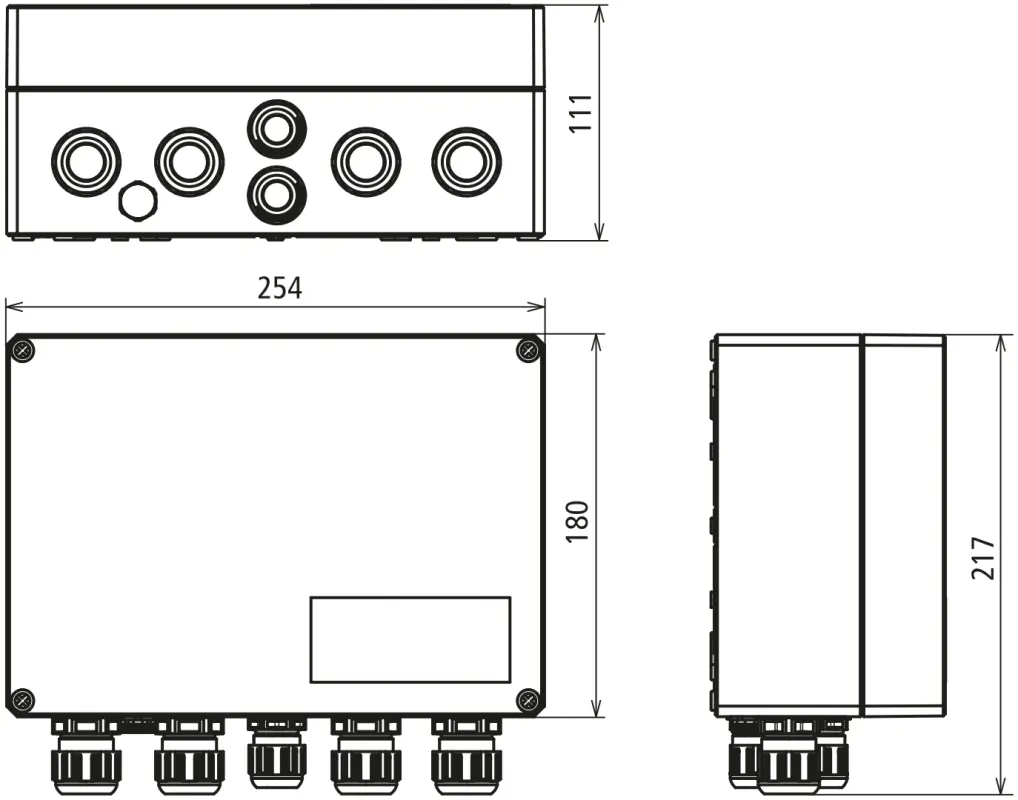

- Compact design for flexible installations
Product features
- For two MPP inputs and two strings each
- Max. PV voltage: 1100 V DC
- Rated surge current: 20 kA / Max. surge current: 40 kA
- Protection level ≤ 4 kV
- Short-circuit withstand capacity: 10 kA
- Operating temperature range: -35°C to +60°C
- Protection class: IP65
- Housing with pressure equalisation element and transparent cover
- Connection cross-sections up to 25 mm² (fine-stranded) possible
- Weight: 1.74 kg
