DEHNguard DG M YPV SCI 1000 FM
| Type of manufacturer: | DG M YPV SCI 1000 FM |
|---|---|
| Manufacturer Art. No.: | 952515 |
| Art. Nr.: | 13916 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
- New
- Project articles
On request
Product number:
13916
Description
DEHNguard DG M YPV SCI 1000 FM
The DG M YPV SCI 1000 FM provides reliable protection for your Photovoltaic system against dangerous overvoltages. The Type 2 arrester with patented SCI principle ensures safe electrical isolation in the event of an overload. The proven Y-circuit increases operational reliability. The complete unit consists of a base unit with plug-in modules and is designed for DIN rail mounting.
Product benefits
- Reliable protection for PV systems up to 1000 V DC
- SCI technology provides safe electrical isolation in the event of an overload

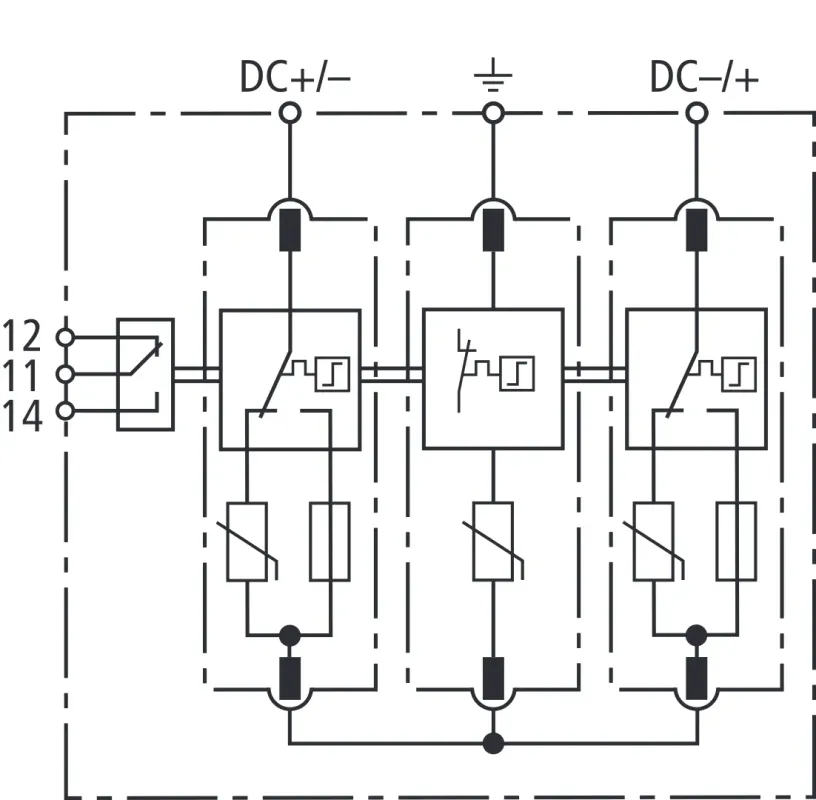

- Fault-tolerant Y-circuit prevents malfunctions
- Visual indicator shows operating status at a glance
- FM contact enables remote monitoring of the device status
- Compact 3-TE design saves space in the control cabinet
Product features
- Max. PV voltage (UCPV): 1000 V DC
- Rated discharge current: 12.5 kA (DC+ / DC– → PE)
- Max. discharge current: 25 kA per pole, 40 kA total
- Protection level: ≤ 4 kV (≤ 3.5 kV at 5 kA)
- Response time: ≤ 25 ns
- Short-circuit withstand voltage ISCPV: 10 kA
- Connection cross-section: up to 35 mm² (multi-strand)

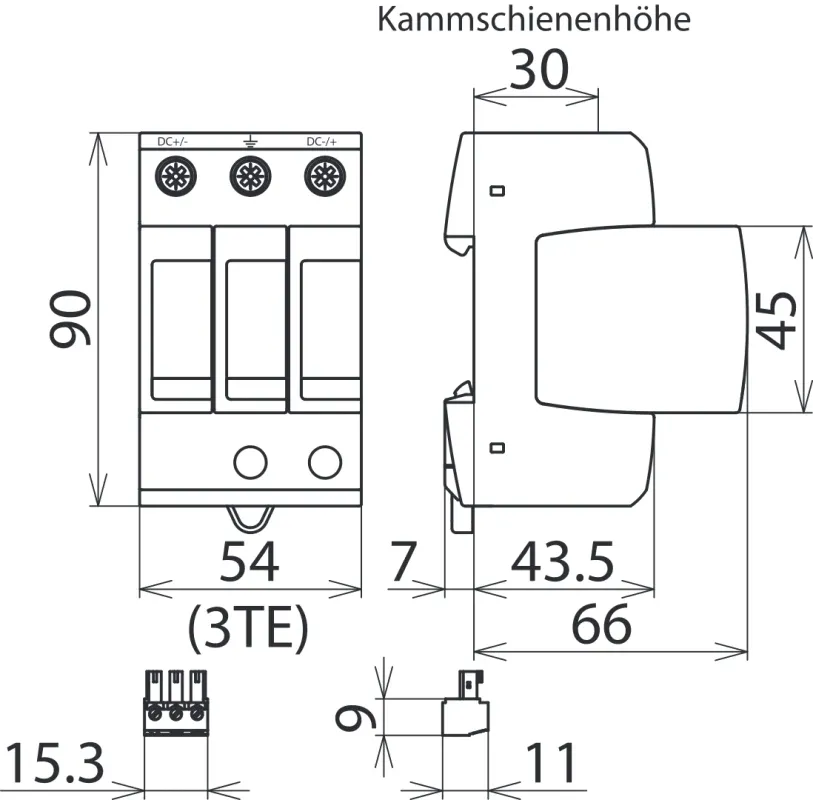

- Mounting width: 3 TE, DIN 43880
- FM contact: changeover contact, AC 250 V / 0.5 A, DC 250 V / 0.1 A
- Protection class: IP 20, indoor use
