DEHNguard DG MP TN 275 FM
| Type of manufacturer: | DG MP TN 275 FM |
|---|---|
| Manufacturer Art. No.: | 942205 |
| Art. Nr.: | 13908 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
- New
- Project articles
Available from 01.06.2026
Product number:
13908
Description
DEHNguard DG MP TN 275 FM

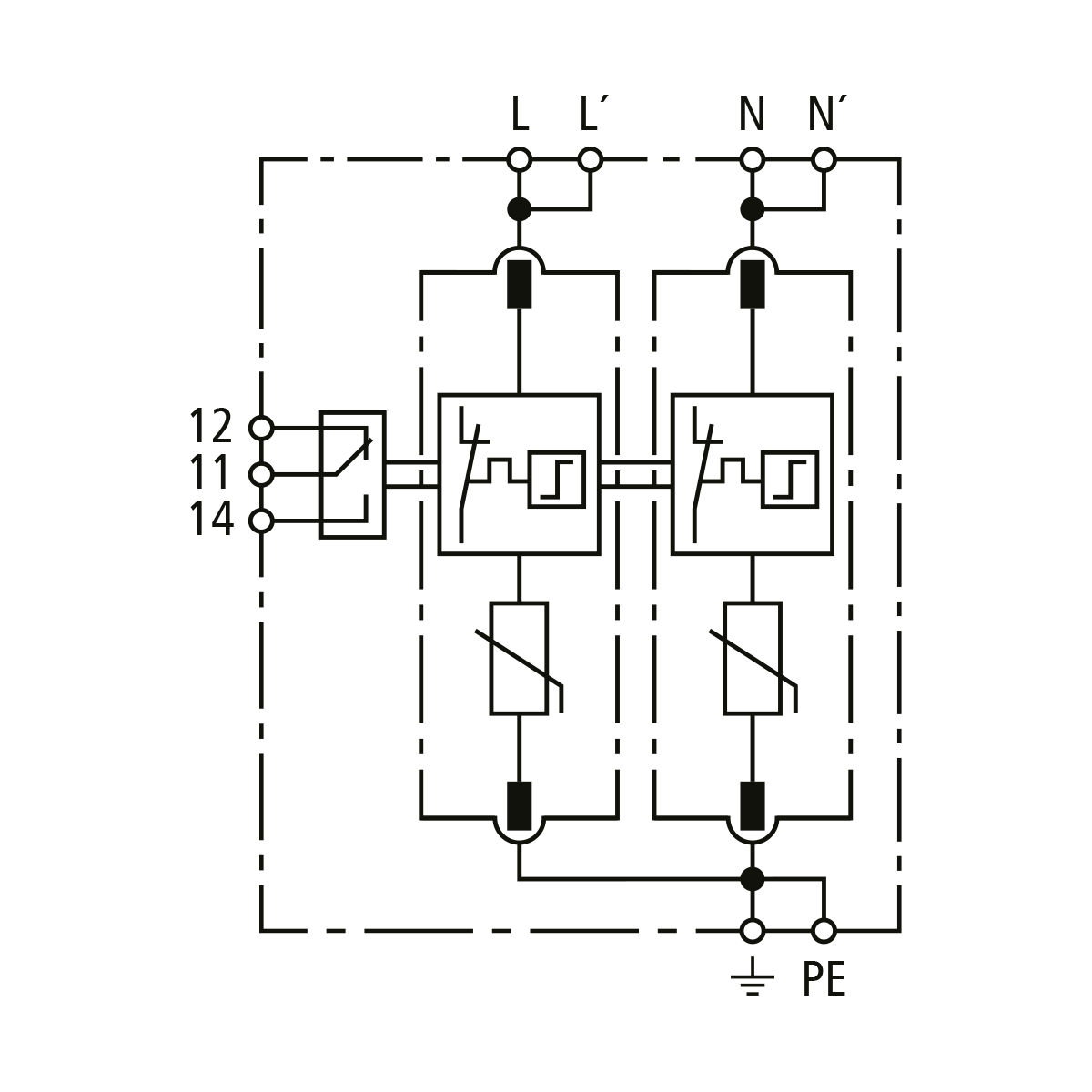

The DG MP TN 275 FM effectively protects your single-phase TN systems against surges and, thanks to its modular design, is easy to install. With an integrated remote signalling contact function, high-performance varistors and thermodynamic control, the arrester ensures a high level of protection and reliable status monitoring – ideal for domestic and commercial installations.
Product benefits
- Compact protection for single-phase TN systems
- Combined Type 2 + 3 surge protection
- Thermo-Dynamic Control for high safety
- Integrated signalling contact for fault indication
- Simple DIN rail mounting with push-in connection
- Only 2 TE wide, saving space in the control cabinet
Product features
- Rated voltage: 230 V AC (50/60 Hz)
- Maximum continuous voltage: 275 V AC
- Max. surge current (8/20 µs): 40 kA
- Protection level (L-PE / N-PE): ≤ 1.5 kV (≤ 1 kV at 5 kA)
- Response time: ≤ 25 ns
- Short-circuit withstand capacity: 50 kA rms

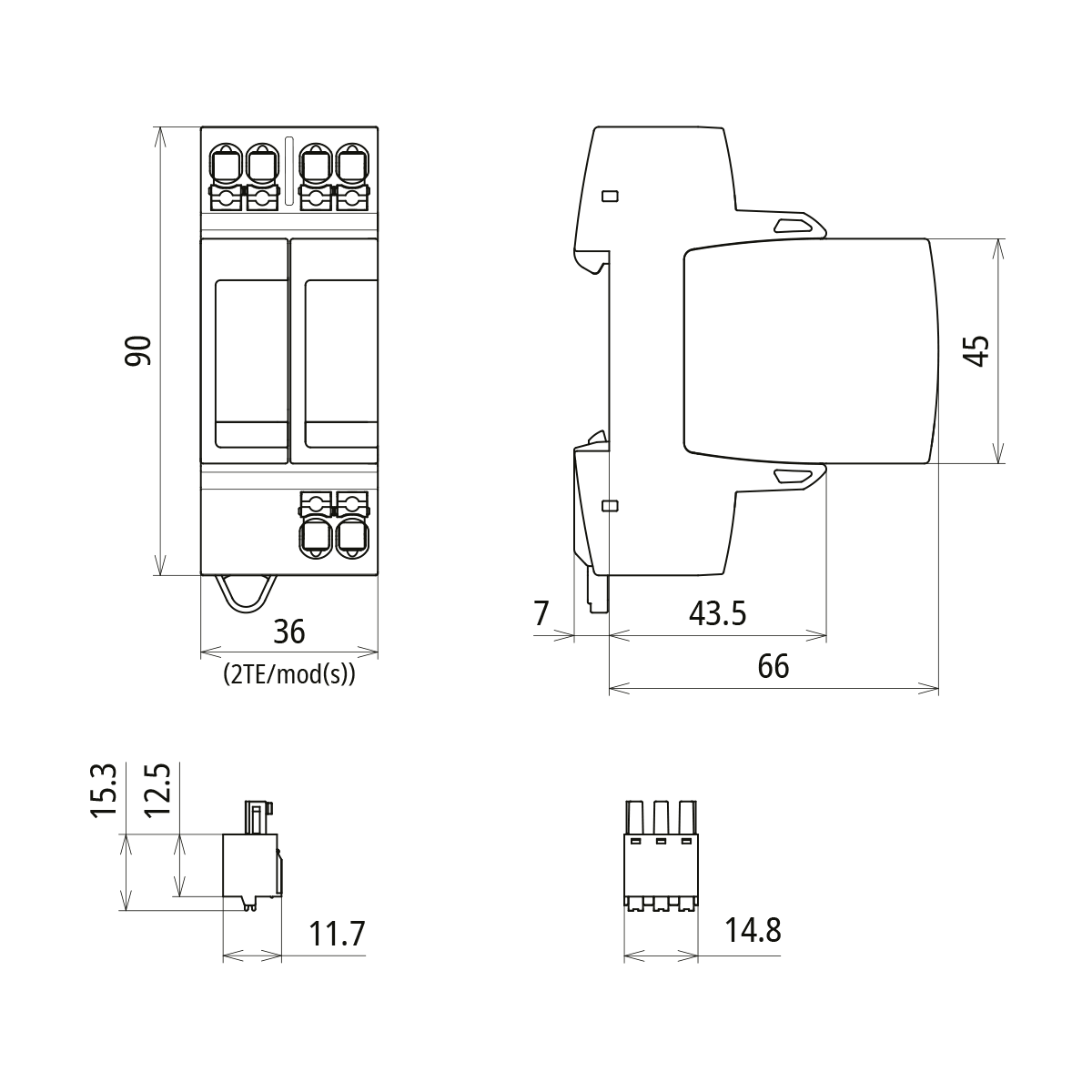

- Mounting dimensions: 2 HP, DIN 43880
- Protection class: IP 20, indoor installation
- Connection cross-section: up to 10 mm² (push-in)
