DEHNguard DG MP TNS 275
| Type of manufacturer: | DG MP TNS 275 |
|---|---|
| Manufacturer Art. No.: | 942400 |
| Art. Nr.: | 13867 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
13867
Description
DEHNguard DG MP TNS 275
With the DEHNguard modular DG MP TNS 275, you can reliably protect your electrical installation against surges in the TN-S system. The arrester combines high-performance zinc oxide varistors with spark gaps and ensures maximum equipment safety thanks to its "Thermo-Dynamic Control". The pre-assembled unit, featuring plug-in modules and push-in connection technology, is particularly easy to install on a 35 mm DIN rail.
Product benefits
- Reliable surge protection for TN-S systems
- Combined Type 2 + Type 3 protection – ideal for end devices
- Fast response time ≤ 25 ns for high system safety
- Easy installation thanks to modular design and push-in technology
- Thermo-Dynamik-Control reliably monitors the arrester status
- Compatible with standard top-hat rails (35 mm in accordance with EN 60715)
Product features
- Rated voltage: 230/400 V AC (50/60 Hz)
- Maximum continuous voltage: 275 V AC
- Max. discharge current (8/20 µs): 40 kA
- Protection level (L/N-PE): ≤ 1.5 kV
- Operating range: -40 °C to +80 °C

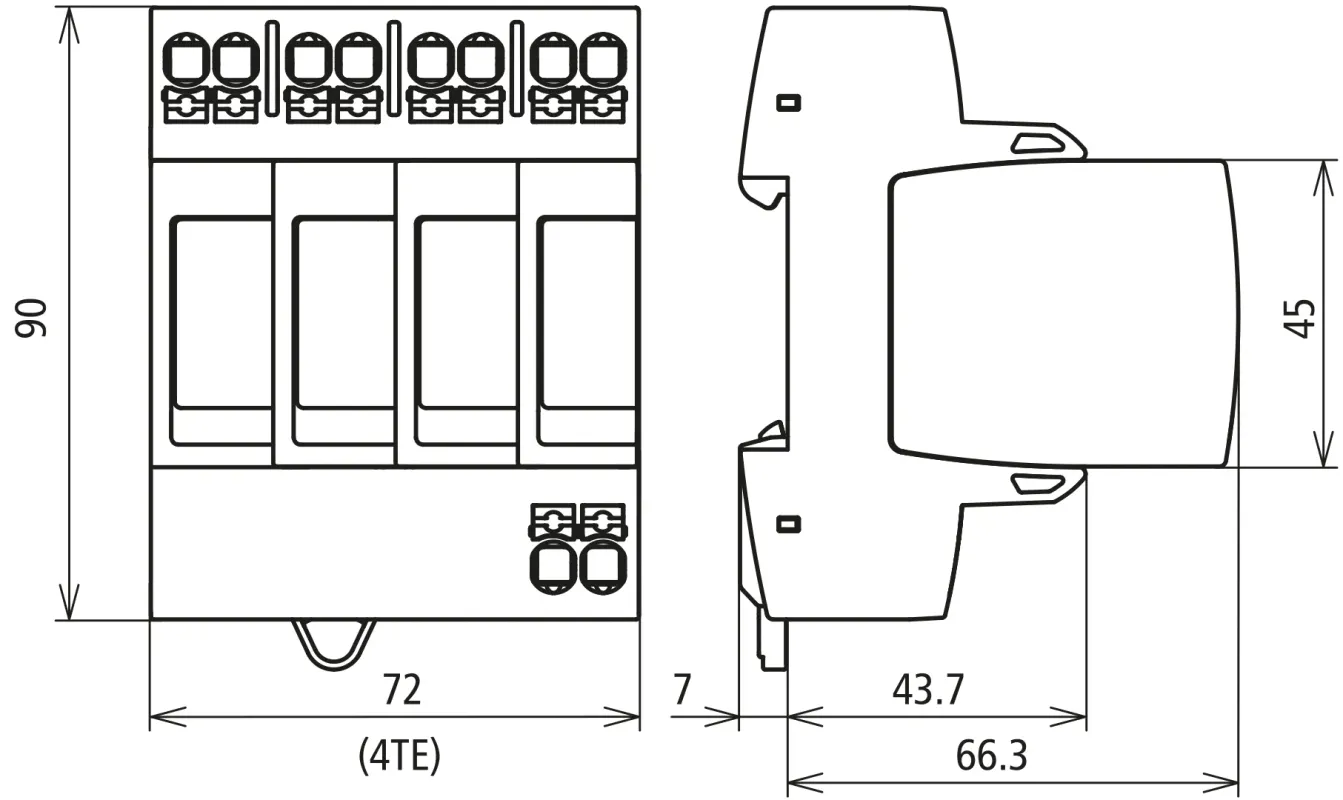

- Mounting width: 4 TE (DIN 43880)
- Protection class: IP 20, for indoor use
- Mounting: 35 mm top-hat rail
- Housing: Thermoplastic, red
