DEHNguard DG MP YPV 1200 FM
| Type of manufacturer: | DG MP YPV 1200 FM |
|---|---|
| Manufacturer Art. No.: | 942565 |
| Art. Nr.: | 13876 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
13876
Description
DEHNguard DG MP YPV 1200 FM
With the DEHNguard DG MP YPV 1200 FM, you can reliably protect your photovoltaic system against surges of up to 1170 V. The ready-to-wire unit combines a fault-tolerant Y-circuit with the proven Thermo-Dynamic Control. Thanks to the potential-free remote signalling contact, the device is ideally suited for connection to monitoring systems – perfect for modern PV installations.
Product benefits
- Specially designed for PV systems up to 1170 V DC

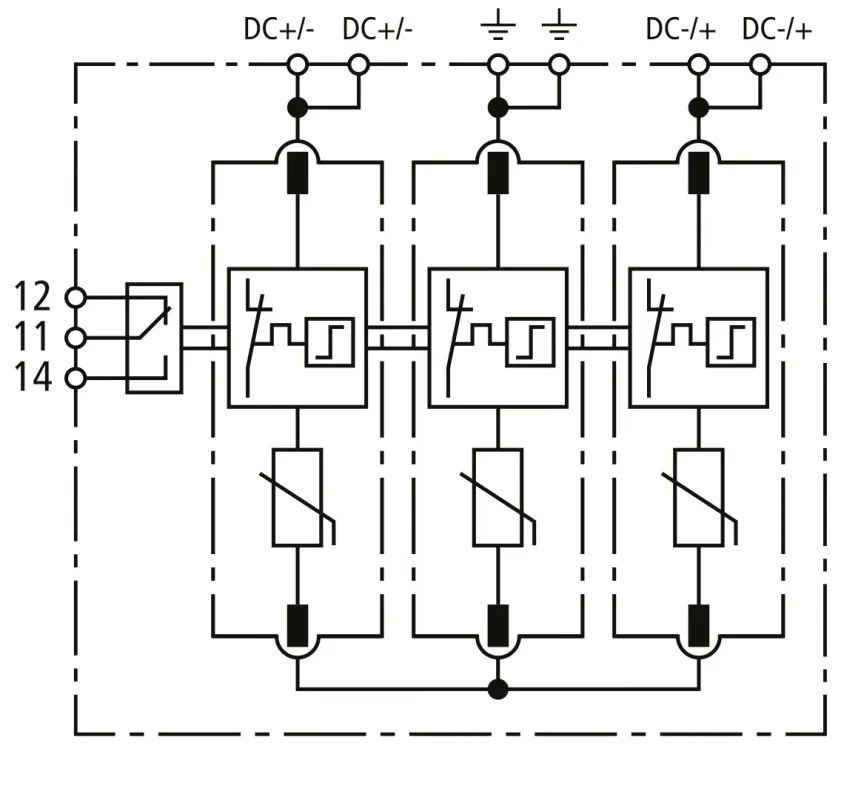

- Fault-tolerant Y-connection for particularly robust operation
- Integrated Thermo-Dynamic Control for status monitoring
- Fast response time ≤ 25 ns protects sensitive components
- Integrated potential-free remote signalling contact for monitoring
- Simple DIN rail mounting with push-in connection technology
Product features
- Max. PV voltage: 1170 V DC
- Max. surge current (8/20 µs): 40 kA
- Protection level: ≤ 4 kV
- Response time: ≤ 25 ns
- Rated DC current: 40 A

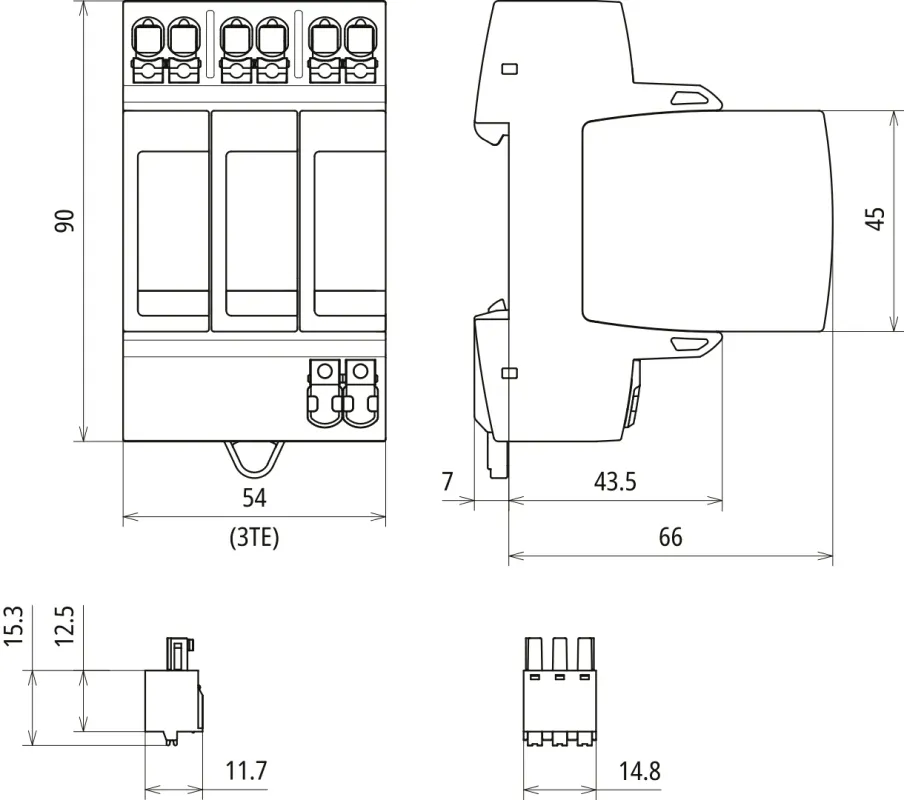

- Mounting dimensions: 3 HP (DIN 43880)
- Protection class: IP 20, for indoor use
- Mounting: 35 mm top-hat rail (EN 60715)
- Housing: Thermoplastic, red, UL 94 V-0
- Approvals: in accordance with EN/IEC 61643-31, Type 2 / Class II
