DEHNguard DG MP YPV 1500 FM
| Type of manufacturer: | DG MP YPV 1500 FM |
|---|---|
| Manufacturer Art. No.: | 942567 |
| Art. Nr.: | 13913 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
- New
- Project articles
On request
Product number:
13913
Description
DEHNguard DG MP YPV 1500 FM
The DG MP YPV 1500 FM reliably protects your Photovoltaic system against surges of up to 1500 V DC. The compact, modular unit with push-in connection technology is easy to install and features reliable thermo-dynamic control, a Y-connection and an integrated remote signalling contact. Ideal for indoor applications in the latest generation of PV systems.
Product benefits
- Surge protection for PV systems up to 1500 V DC
- Thermo-Dynamic Control reliably monitors the system’s status

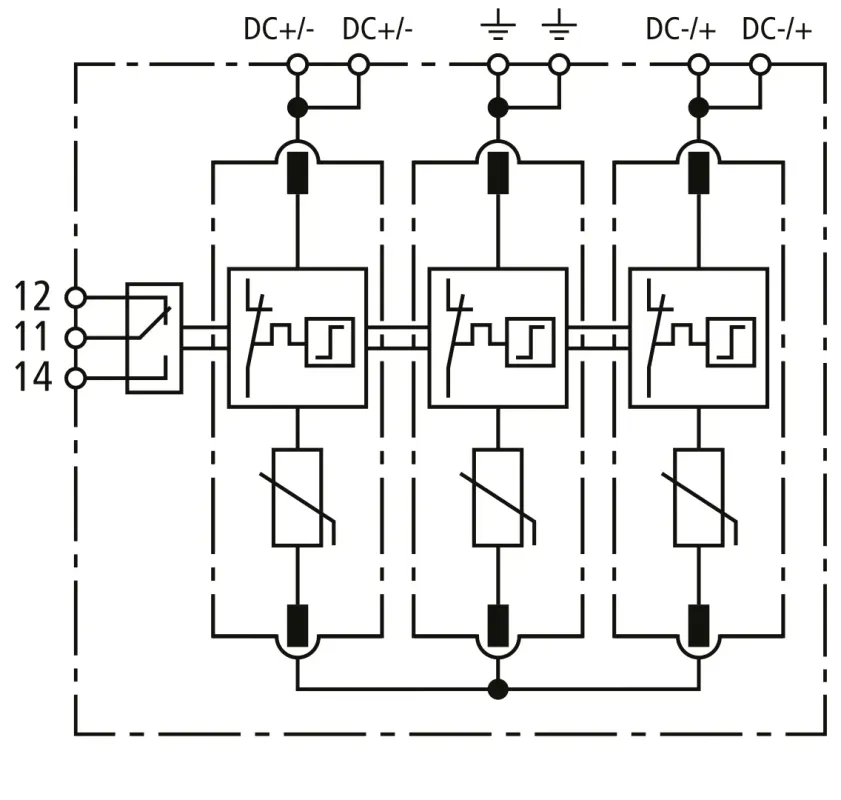

- Fault-tolerant Y-connection increases operational reliability
- FM contact for external fault signal monitoring
- Quick installation thanks to push-in connection technology

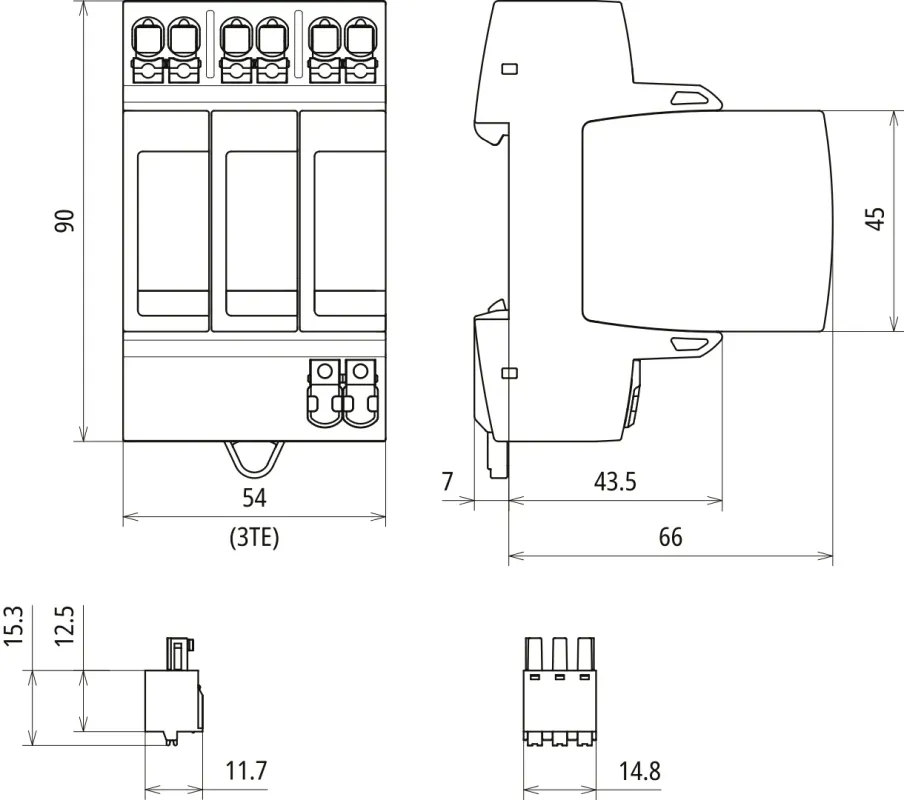

- Compact 3-TE design for easy integration into the control cabinet
Product features
- Max. PV voltage (UCPV): 1500 V DC
- Rated discharge current: 15 kA (DC+/DC– to PE)
- Max. discharge current: 40 kA (8/20 µs)
- Protection level: ≤ 5 kV
- Response time: ≤ 25 ns
- Short-circuit withstand capability ISCPV: 10 kA
- Rated DC current: 40 A
- Mounting width: 3 HP (DIN 43880)
- Protection class: IP 20, indoor installation
- FM contact: Changeover, AC 250 V / 0.5 A, DC 250 V / 0.1 A
