DEHNpatch Class-D lightning current arrester
| Type of manufacturer: | DPA C8 D 4PPOE |
|---|---|
| Manufacturer Art. No.: | 929166 |
| Art. Nr.: | 16386 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16386
Description

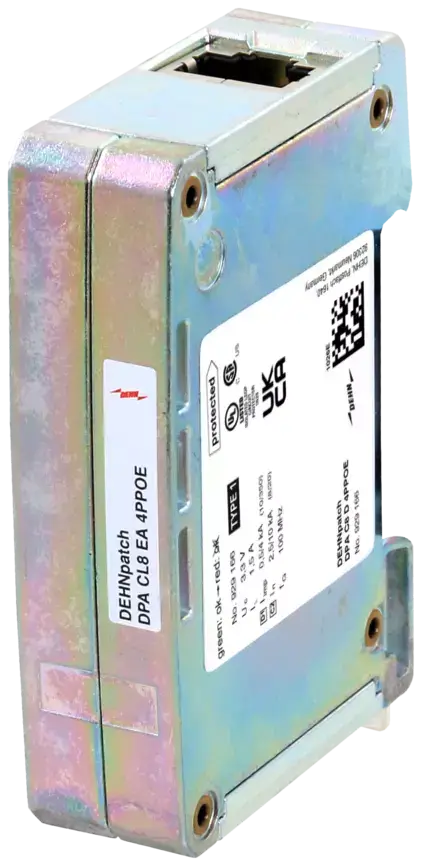

DEHNpatch DPA C8 D 4PPOE
The DEHNpatch DPA C8 D 4PPOE is a universal, space-saving lightning current arrester with a 19 mm width and RJ45 connection technology for lightning protection equipotential bonding.

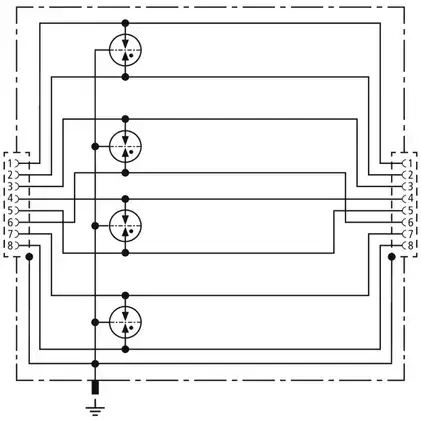

The device is suitable for structured cabling of transmission class D up to 100 MHz, as well as for Power over Ethernet in accordance with IEEE 802.3 up to 4PPoE. All four wire pairs are protected by high-performance gas-discharge arresters. The fully shielded version with RJ45 sockets allows for space-saving mounting on 35 mm top-hat rails.
Product benefits
- Protection for Ethernet applications up to 1 Gbit/s
- Suitable for Power over Ethernet up to 4PPoE
- Protection of all four wire pairs via RJ45 connectors
- Class D surge arrester up to 100 MHz
- High lightning current carrying capacity of up to 4 kA (10/350 µs) in total
- Fully shielded housing for reliable potential management

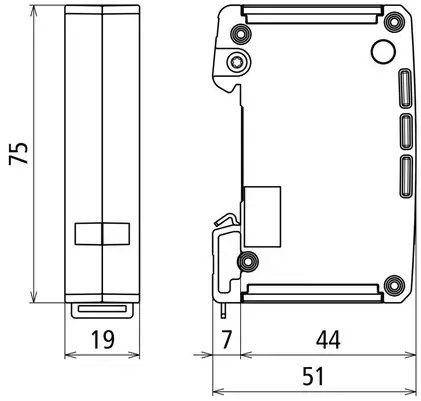

- Particularly compact design with a width of just 19 mm
- Flexible earthing via top-hat rail or additional screw terminal
Product features
- Arrestor class: Type 1
- Pulse categories: D1, C2, C3
- Cut-off frequency: 100 MHz
- Rated voltage: 3.3 V
- Rated current: 1.5 A
- Connection: RJ45 socket / RJ45 socket
- Mounting: 35 mm top-hat rail in accordance with EN 60715
- Protection rating: IP20
