DEHNpatch DPA CL8 EA 4PPOE
| Type of manufacturer: | DPA CL8 EA 4PPOE |
|---|---|
| Manufacturer Art. No.: | 929161 |
| Art. Nr.: | 13907 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
13907
Description
DEHNpatch DPA CL8 EA 4PPOE
The DEHNpatch DPA CL8 EA 4PPOE provides reliable surge protection for Ethernet-based applications up to 10 Gbit/s. This space-saving combination arrester with RJ45 connection technology is specifically designed for structured cabling up to Class EA (500 MHz). It meets the requirements for PoE++ (4PPoE) and is ideal for Industrial Ethernet, camera systems and data distribution units.
Product benefits
- Reliable protection for Ethernet up to 10 Gbit/s
- Suitable for PoE, PoE+ and 4PPoE applications
- Ideal for structured networks up to Class EA (500 MHz)
- Easy mounting on DIN rail with RJ45 connectors
- Status indicator for quick maintenance
- Fully shielded housing with optional earth connection
Product features
- Rated voltage: 3.3 V DC
- Maximum continuous DC voltage: 58 V (PoE)
- Lightning surge current (D1): 0.5 kA per conductor
- Total discharge surge current: 10 kA (C2)
- Protection level (core-to-core / phase-to-phase): ≤ 100 V
- Cut-off frequency: 500 MHz
- Capacitance: ≤ 15 pF (core-to-core), ≤ 40 pF (core-to-ground)
- Protection class: IP 20

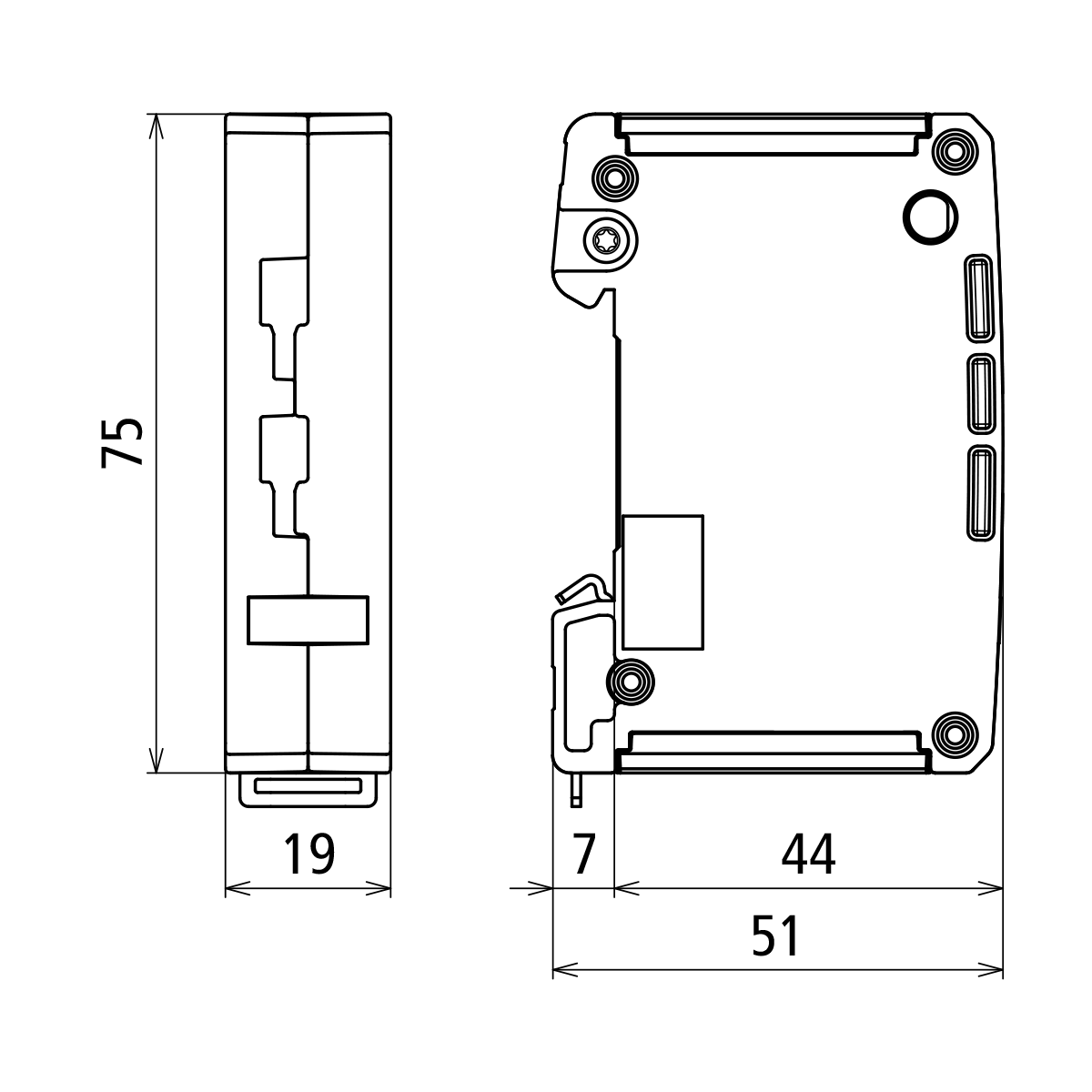

- Housing: Die-cast zinc, mounting on 35 mm top-hat rail
