DEHNshield DSH ZP B2 SG TNC 255
| Type of manufacturer: | DSH ZP B2 SG TNC 255 |
|---|---|
| Manufacturer Art. No.: | 909430 |
| Art. Nr.: | 13965 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
13965
Description
DEHNshield DSH ZP B2 SG TNC 255
The DEHNshield ZP is a high-performance combined arrester (Type 1 + Type 2 + Type 3), specially developed for residential buildings without external lightning protection. Thanks to its compact design, it can be easily mounted on 40 mm busbar systems. Thanks to its overcurrent-protected power supply, the device is also suitable for applications in RfZ and APZ in accordance with VDE-AR-N 4100.
Product benefits
- Effectively protects end devices in overhead line feed-in applications

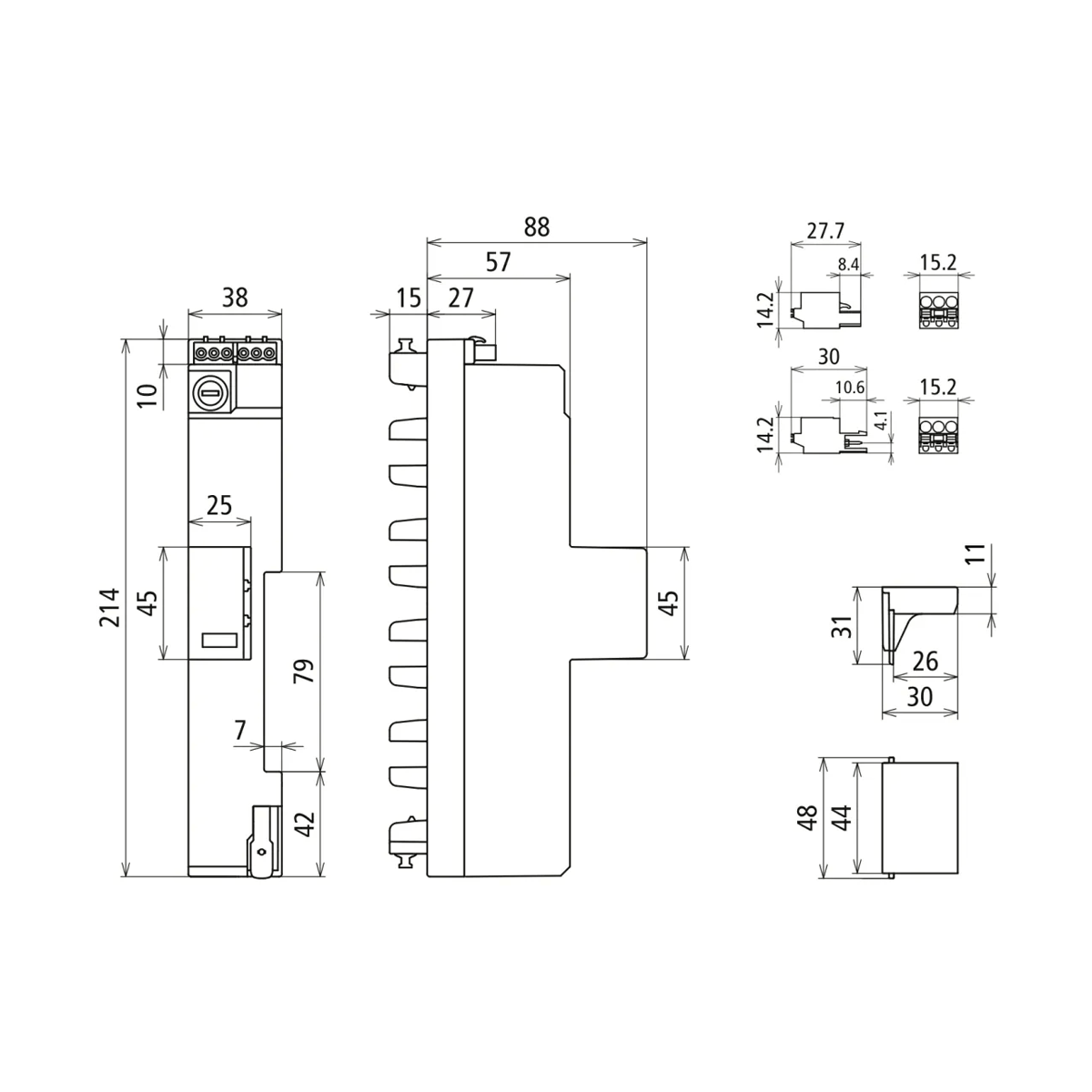

- Compact design for space-saving installation in the meter panel
- Tool-free installation saves time during fitting
- Integrated power supply for additional applications such as RfZ and APZ
- Compatible with feed-in adapters and SH switches
- Cover clip and accessories for meter panel mounting included
Product features

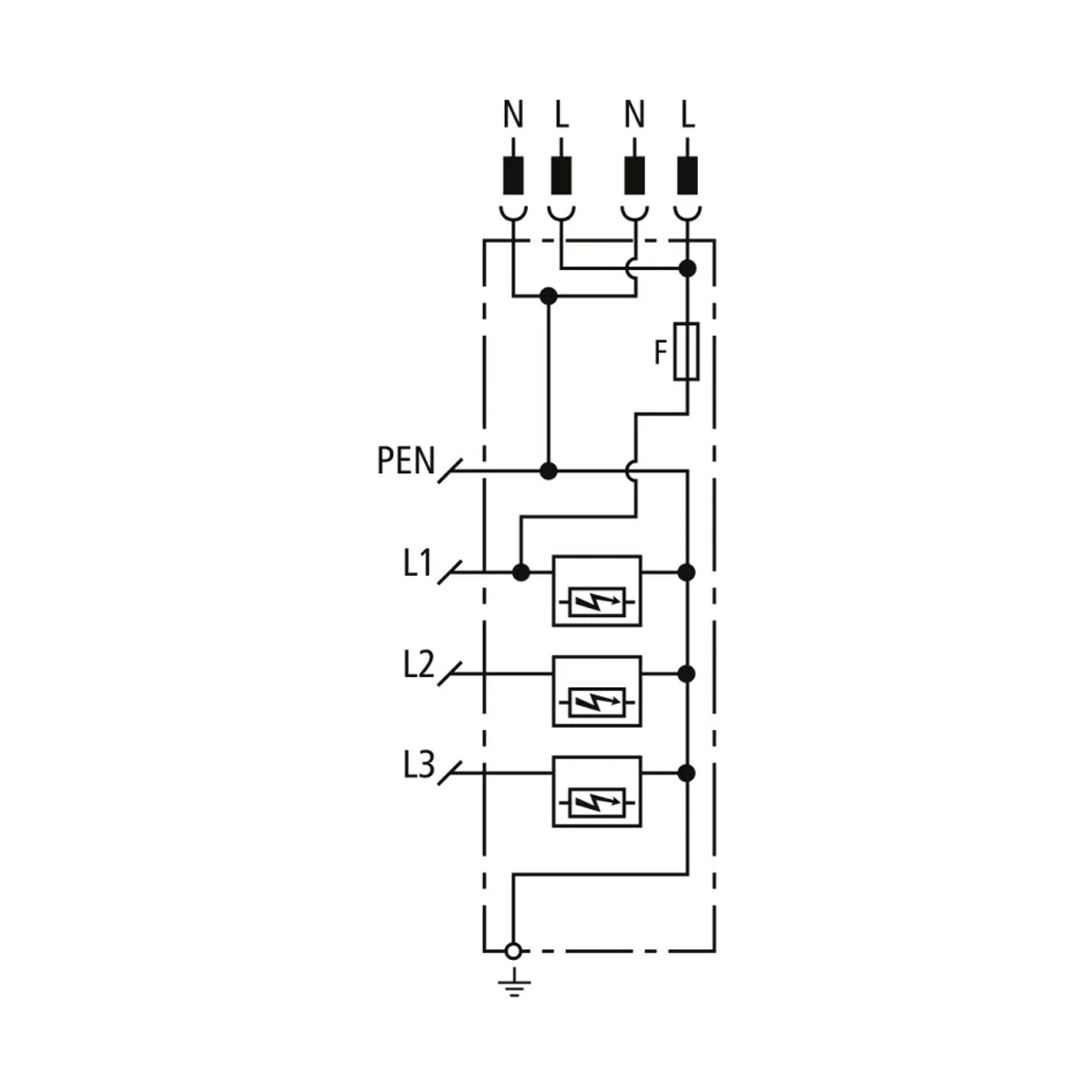

- Combined arrester type 1 + 2 + 3 for TN-C systems
- Rated voltage: 230 / 400 V AC (50/60 Hz)
- Maximum continuous voltage: 255 V AC
- Lightning surge current (10/350 µs): up to 22.5 kA total
- Protection level: ≤ 1.5 kV
- Mounting on 40 mm busbar system
- Temperature range: -40 °C to +80 °C
- Protection class: IP 30 (with cover)
- Operating indicator: green/red
- PEN connection cross-section: 16–25 mm² fine-stranded
