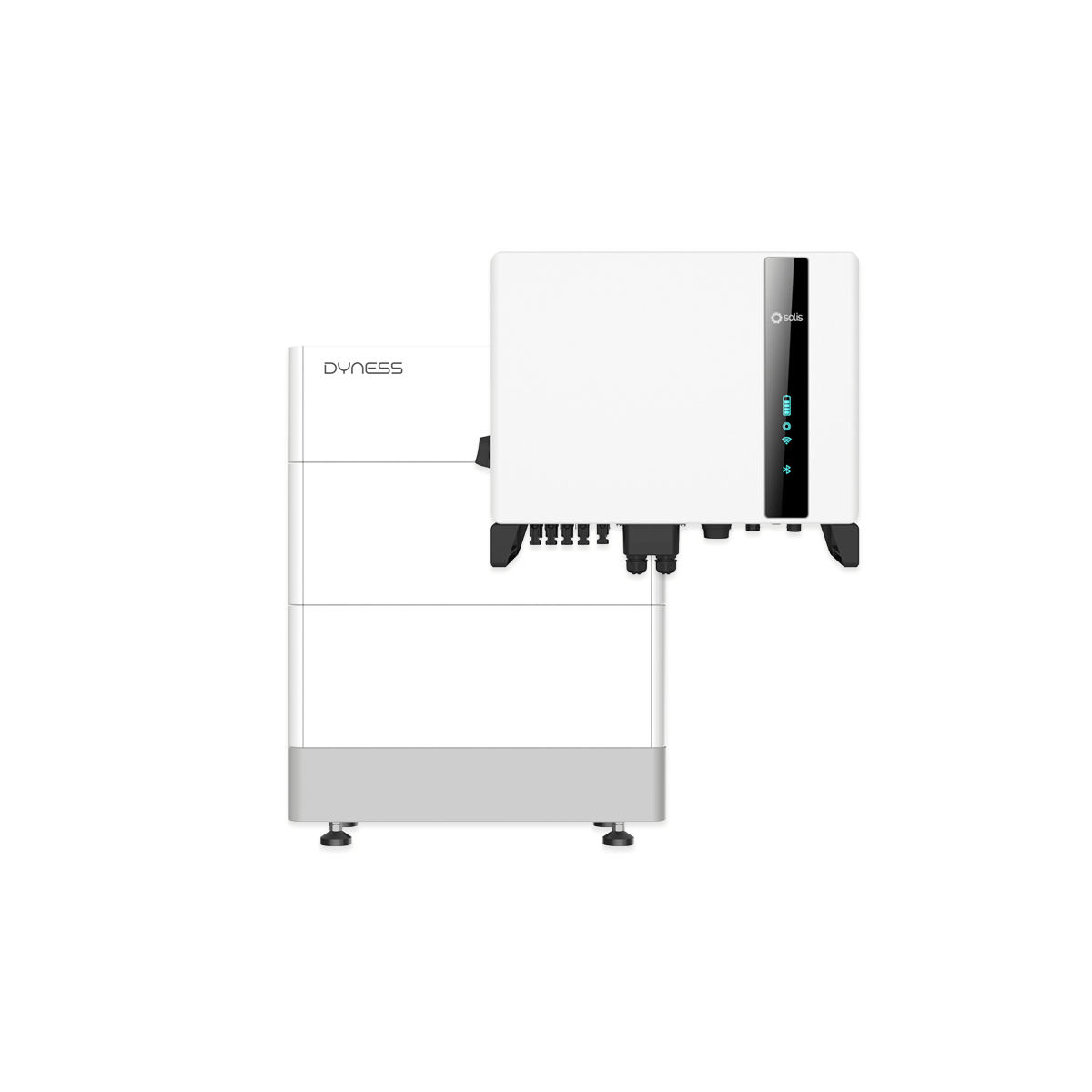

Dyness Tower Pro TP7 with 7.296 kWh with Solis S6 3P-Hybrid - 6 kW
| Art. Nr.: | 14908 |
|---|---|
| Inverter: | Solis S6 3P-Hybrid - 6 kW |
| Phases: | 3 |
| Solar battery: | Dyness Tower TP7 mit 7,296 kWh |
| Net capacity: | 7.296 kWh |
| Battery type: | High volt lithium-iron-phosphate |
| Package type: | 3-phase, High voltage battery, Solar battery packages |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
14908
Description
Dyness Tower TP7 with 7.296 kWh and Solis S6 3P hybrid – 6 kW in the storage package
Dyness introduces the stackable high-voltage TP7 battery. The Battery storage system is available with 2–6 battery modules and an usable storage capacity of 7,296–22,888 kWh. In combination with the Solis S6 3P Hybrid, Self-consumption can be increased. Together, they can continue to supply selected loads with power in the event of a grid failure.
In Austria, please check local approval requirements!
Product features of the Dyness Tower TP7 with 7.296 kWh
- Modular design
- Battery capacity: 7.68 kWh
- DOD: 95%
- Usable battery capacity: 7.296 kWh
- Lithium iron phosphate (LFP) technology
- Nominal voltage: 192 V
- Charge/discharge current: 18.5 A
- Weight: 109.5 kg
- Warranty: 10 years
- Protection rating: IP 55
- Dimensions: 788 x 587 x 310 mm (H/W/D)
Product features Solis S6 3P Hybrid - 6 kW
- Mains connection: 3-phase
- AC power: 6 kVA
- 6.0 kW emergency power output via separate output
- MPP trackers: 3, each with 1 string output
- Max. short-circuit current per MPPT: 24 A
- Max. input current: 16 A
- Communication: CAN, RS485, WiFi
- Includes WiFi+LAN kit
- Protection class: IP66
- Dimensions: 500 x 600 x 210 mm (H x W x D)
- Weight: 27.6 kg
- Warranty: 5 years
Contents
- Dyness Tower TP7 with 7.296 kWh, comprising 1 BDU and 2 battery modules
- Solis S6 3P Hybrid – 6 kW including 3-phase Smart meter
