Easee Charge Max Black (MID)
| Manufacturer Art. No.: | 10233 |
|---|---|
| Art. Nr.: | 15139 |
| Pieces per package unit: |
|
| Power: | 22 kilowatt |
| Number of charging points: | 1 |
| Access control: | RFID |
| AC phases: | 3 |
| Surplus charging: | Yes |
| Charging port: | Socket |
| Energy meter: | MID compliant meter |
| KfW (441) förderfähig: | No |
| BMVI förderfähig: | No |
| Electric charging system: | Private, Wallbox |
Prices are only visible to business customers upon successful registration.
- New
Available from 16.06.2026
Product number:
15139
-
-
Phoenix Contact charging cable type 2 32A 3PH 7.5m- Art. Nr.: 15304
- Phoenix Contact
Available from stock{ "id": "7bcf0ad75e2258d78782ae4f60f0c15b", "item_brand": "", "item_name": "Phoenix Contact charging cable type 2 32A 3PH 7.5m", "item_id": "15304", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7bcf0ad75e2258d78782ae4f60f0c15b" } } -
{ "id": "1f6d0390f07f5350acf261346ec82388", "item_brand": "", "item_name": "Mennekes charging cable mode 3 type 2 32A 3PH 7.5m", "item_id": "14618", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "1f6d0390f07f5350acf261346ec82388" } }
-
Description

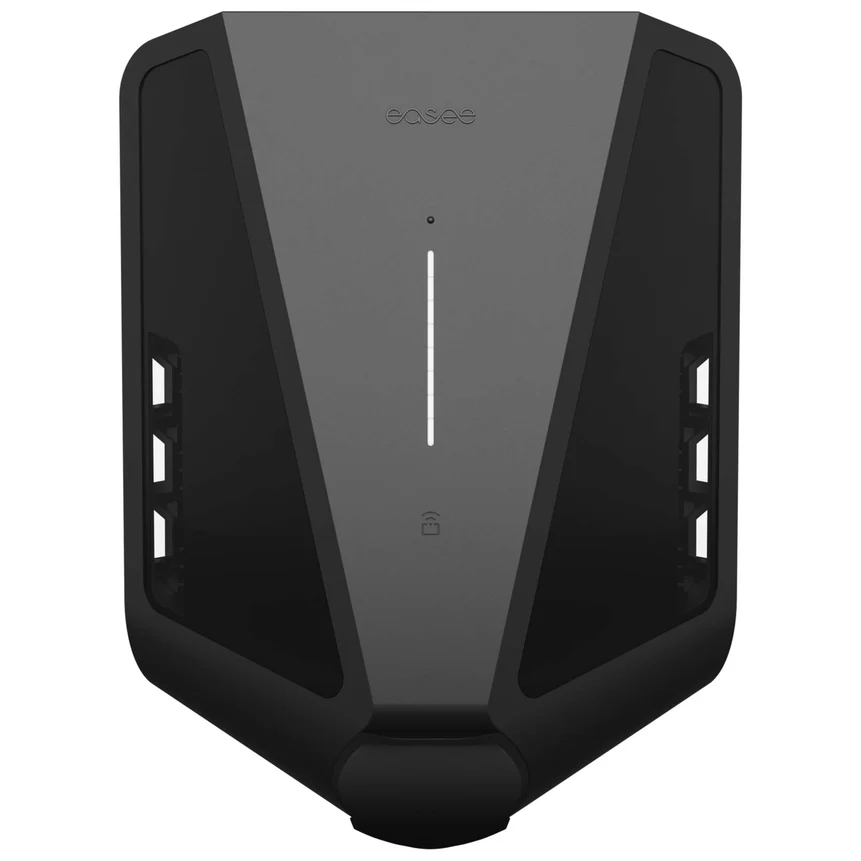

Easee Charge Max Black (MID)
The Easee Charge Max is a powerful, smart Wallbox for home use with an integrated MID energy meter for precise and metrology-compliant billing. It charges electric vehicles at up to 22 kW (three-phase) or 7.4 kW (single-phase) and dynamically adjusts the charging power to the available energy. With Wi-Fi, Bluetooth, eSIM, RFID/NFC authorisation and app control, it offers high connectivity and control. Its robust design with protection class IP54 / IK10 makes it ideal for indoor and outdoor use.
Configuration is simple using the Easee Installer app.
Product benefits
- Integrated MID-compliant energy meter for accurate measurement and billing
- Simple installation and commissioning (using the Easee Installer App and Easee Ready)
- Flexible control & connectivity via app, eSIM (LTE), Wi-Fi and RFID/NFC
- Smart load and phase management for efficient energy use
- Integrated Type A 30 mA AC RCD in accordance with EN 60947-2 and 6 mA residual current circuit breaker (RDC-DD) in accordance with IEC 62955, 9.9
Product features
- Meter: Integrated MID energy meter (Class B)
- Voltage: 3x 230 V / 400 V AC (+/-10%).
- Charging power: 1.4–7.4 kW (single-phase) and up to 22 kW (three-phase)
- Mains frequency: 50 Hz
- Connection point: Type 2 socket (Mode 3).
- Controllable via the Easee app, OCPP 1.6J and remote access.
- Connectivity: Wi-Fi, Bluetooth, integrated eSIM (LTE), OCPP.
- Integrated RFID/NFC reader for access control
- Protection class: IP54 (dust/water-resistant)
- Impact resistance: IK10
- Dimensions: 256 x 193 x 106 mm (HxWxD)
- Weight: 1.6 kg
-
