EcoFlow 3-phase smart meter (80 A)
| Type of manufacturer: | EFA-ADL400-CT |
|---|---|
| Manufacturer Art. No.: | 5008604013 |
| Art. Nr.: | 16567 |
| Pieces per package unit: |
|
- New

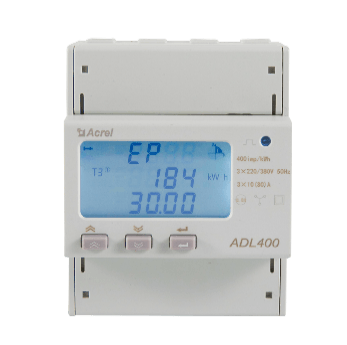

EcoFlow 3-phase Smart meter ADL400-CT (80 A)
The EcoFlow ADL400 is a three-phase, four-wire energy meter for DIN rail mounting and has been specially developed for the EcoFlow PowerOcean range. Installed at the grid connection point, it measures all relevant electrical parameters such as voltage, current, active and reactive power, power factor, frequency, as well as grid consumption and feed-in. The measured values are transmitted to the Inverter via RS485, enabling the system to precisely control Self-consumption, battery charging and feed-in. Measurements are taken directly up to 80 A; external current transformers are not required. With a width of just four modular units, the meter fits neatly into any meter cabinet or sub-distribution board, saving space.
When is an additional Smart meter required?
- PowerOcean Plus and OCEAN 2 (3-phase) without whole-house backup – the integrated Smart meter in these Inverters only covers the whole-house backup installation
- An Inverter from another manufacturer is already installed
- Other special installation scenarios
- As a spare part for servicing
Compatible with:
- EcoFlow PowerOcean (3-phase)
- EcoFlow PowerOcean Plus (3-phase)
- EcoFlow OCEAN 2 (3-phase)
Technical specifications:
- Rated voltage: 3 x 230 / 400 V AC
- Operating voltage range: 3 x 57.7/100 V to 3 x 276/480 V
- Rated frequency: 45 – 65 Hz
- Input current: 0.1 – 10 (80) A, direct measurement
- Accuracy (active/reactive power): 0.5% of the maximum range
- Communication: RS485, 1,200 – 19,200 baud
- Pulse rate: 400 pulses/kWh
- Operating temperature: –40 to 70 °C
- Relative humidity: ≤ 95 per cent (non-condensing)
- Installation category: CAT III
- Protection rating: IP51 (indoor installation)
- Mounting: 35 mm DIN top-hat rail
- Dimensions (W x D x H): 72 x 65 x 90 mm
- Weight: 0.32 kg
Contents:
- EcoFlow 3-phase Smart meter ADL400-CT
Note: Installation and connection must only be carried out by a qualified electrician. The Smart meter is supplied with pre-set parameters; these must not be altered.
-
Matching accessories
-
- New
EcoFlow OCEAN 2 Hybrid 3-phase 6kW Inverter- Type of manufacturer: OCEAN2-INV-P3-6kW-EU
- Art. Nr.: 15863
{ "id": "32333490c7545558939336817bbac092", "item_brand": "", "item_name": "EcoFlow OCEAN 2 Hybrid 3-phase 6kW Inverter", "item_id": "15863", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "32333490c7545558939336817bbac092" } } -
- New
EcoFlow OCEAN 2 Hybrid 3-phase 8kW Inverter- Type of manufacturer: OCEAN2-INV-P3-8kW-EU
- Art. Nr.: 15864
{ "id": "6c8d2f93cc9b55d48f7171b870558602", "item_brand": "", "item_name": "EcoFlow OCEAN 2 Hybrid 3-phase 8kW Inverter", "item_id": "15864", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "6c8d2f93cc9b55d48f7171b870558602" } } -
- New

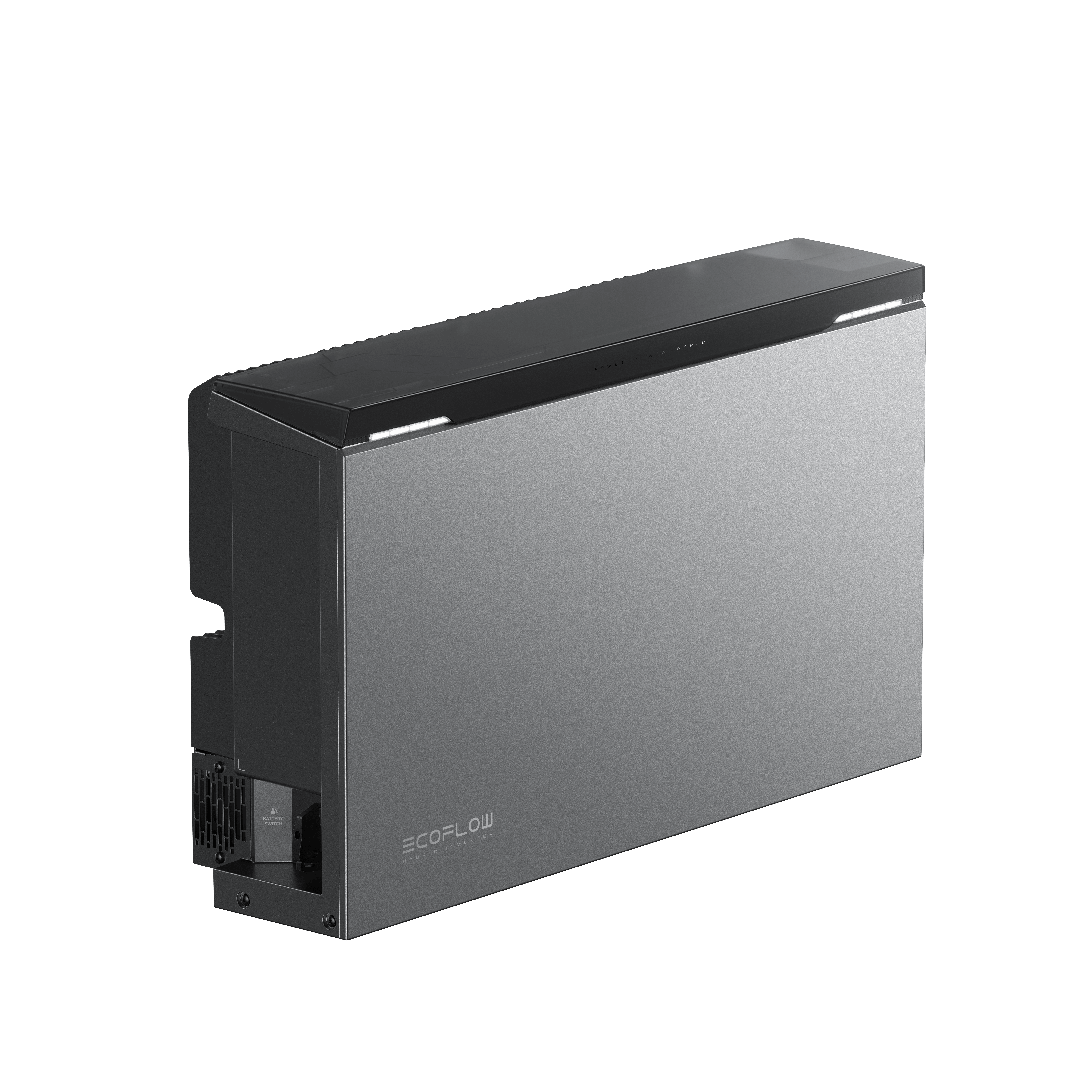

EcoFlow OCEAN 2 Hybrid 3-phase 10kW Inverter- Type of manufacturer: OCEAN2-INV-P3-10kW-EU
