Eniris SmartgridOne Pro OM1
| Type of manufacturer: | SG1-OM1 |
|---|---|
| Manufacturer Art. No.: | 10593594 |
| Art. Nr.: | 16092 |
| Pieces per package unit: |
|
| Energy management systems: | Commercial |
| Mounting type: | DIN rail |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16092
Description

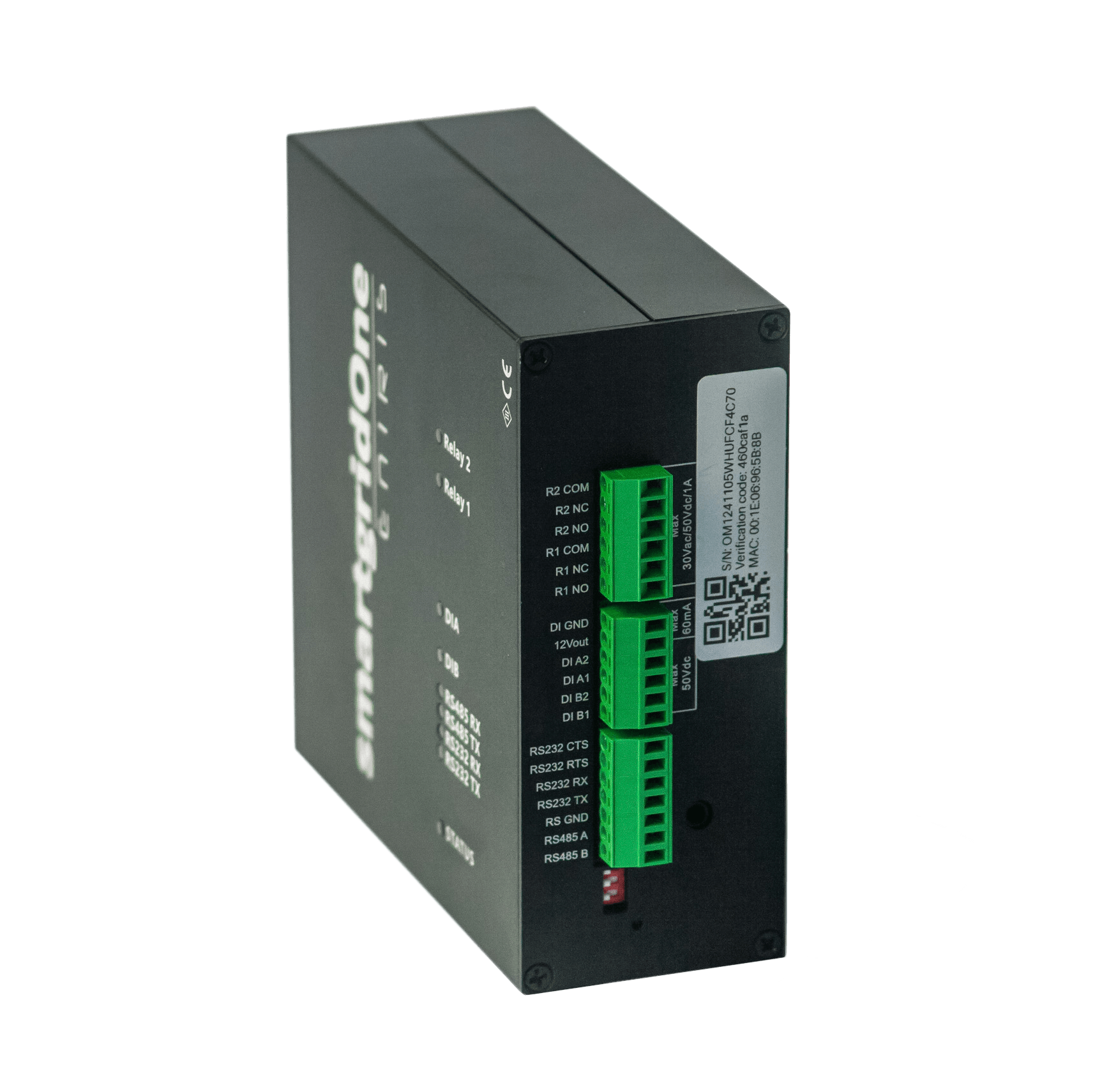

Eniris SmartgridOne Pro OM1
Please note: The relevant licences must be activated within 60 days of the SmartgridOne being commissioned!
The Eniris SmartgridOne Pro OM1 is an intelligent Energy management system (EMS) for residential and commercial premises with a total controllable power output of up to 1 MW.
It automatically optimises energy consumption and generation, thereby supporting a higher self-consumption rate as well as reducing energy costs and Consumption peaks.
As a central energy management solution, it enables the intelligent coordination of various energy components.
Product benefits
- Manufacturer-neutral – highly compatible with the Memodo portfolio
- Optimisation of energy consumption and generation
- Maximisation of self-consumption of solar power
- Reduction in energy costs and Consumption peaks
- Suitable for PV systems, Battery storage system and electric vehicle charging stations
- Support for heat pumps and energy meters
- Centralised communication via Ethernet/Modbus TCP
- Multiple Modbus interfaces for device integration
Product features – SmartgridOne Pro OM1
- Application: Commercial and industrial (C&I)
- Power range: 0–1 MW
- Interfaces: RS485, 2x digital inputs (5–50 V DC), 12 V DC output (max. 60 mA), 2x relays (max. 1 A, 50 V DC/30 V AC), RJ45 Gigabit Ethernet
- Remote access: Configuration and monitoring via SmartGridX
- Power supply: 230 V to 12 V via mains adaptor
- Housing material: aluminium
- Dimensions: 135 x 125 x 50 mm
- Weight: 0.615 kg
Contents
- Eniris SmartgridOne Pro OM1
- Modbus RS485 interface (for multiple Modbus RTU connections)
- Modbus RJ45 interface (for multiple Modbus TCP connections)
- Power supply unit 230 V / 12 V
- 2 relay contacts
Optional
- P1 adapter cable for the smart meter / digital meter
- DIN rail mounting
