Enwitec mains switch box Power Backup Dual EU
| Type of manufacturer: | 3PH_BBDAP_30KW_3PH_1.0_EU |
|---|---|
| Manufacturer Art. No.: | 10019361 |
| Art. Nr.: | 13546 |
| Accessory type: | Emergency power |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
13546
Description

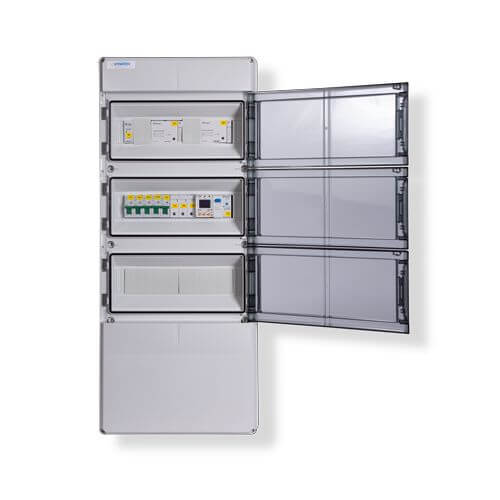

Enwitec Power Backup Dual EU mains transfer box
The Enwitec Power Backup Dual EU mains transfer box is the ideal solution for three-phase emergency power systems up to 30 kW. It enables reliable, all-pole mains disconnection and is compatible with hybrid and battery inverters with their own backup output. Thanks to an integrated current and voltage monitoring relay, it ensures maximum operational reliability. The mains transfer box is designed for use in Europe and is perfectly suited to PV systems that are intended to ensure an uninterrupted power supply in the event of a mains failure. Compact, easy to install and manufactured to the highest quality standards – ideal for professional installations.
Product benefits
- All-pole grid disconnection for maximum safety
- Compatible with all off-grid capable hybrid and battery inverters (up to 30 kW)
- Integrated voltage and current monitoring relay
- Compact design with simple wall mounting
- Ideal for three-phase AC systems with a backup output
- Designed for the European market with TN-C/S, TN-S and TT networks
Technical data
- Mains configuration: 3PH 230/400 V – TN-C/S, TN-S, TT (no TN-C in customer installation!)
- Rated voltage: 3PH – 230/400 V
- Max. power: 30 kW at 25 °C ambient temperature
- Max. mains-side fuse rating: 63 A
- Protection class: IP22 (for indoor use only, protected area)
- Operating temperature: –5 °C to +35 °C
- Housing: Polycarbonate, Protection Class II, RAL 7035
- Dimensions (W×H×D): 315 × 750 × 155 mm
- Weight: approx. 11.5 kg
