Enwitec NA protection 172.5 kVA, 250 A - TNS & TT
| Type of manufacturer: | NA4105-PV172.5KVA-TNS_TT |
|---|---|
| Manufacturer Art. No.: | 10018522 |
| Art. Nr.: | 11075 |
| Pieces per package unit: |
|
| Accessory type: | Grid and system protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
11075
Description

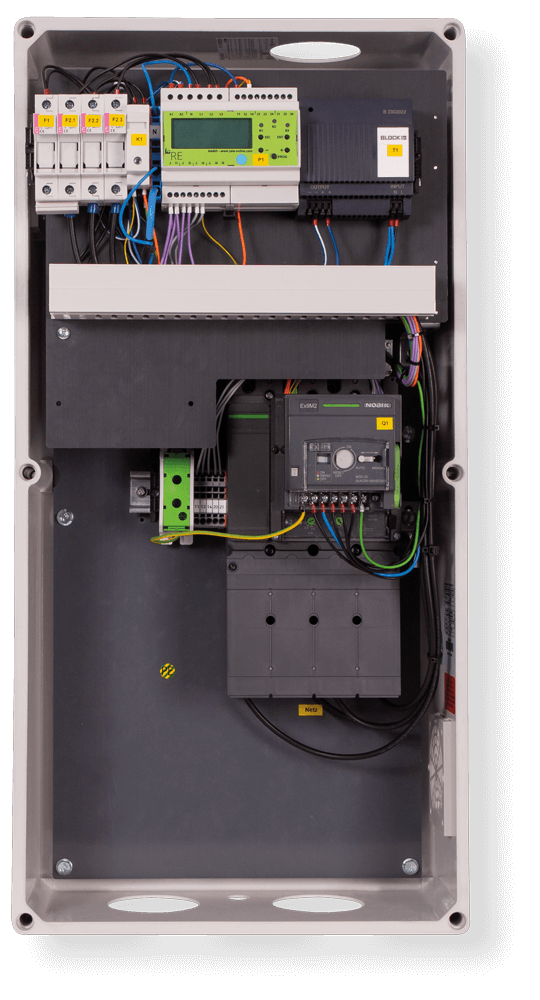

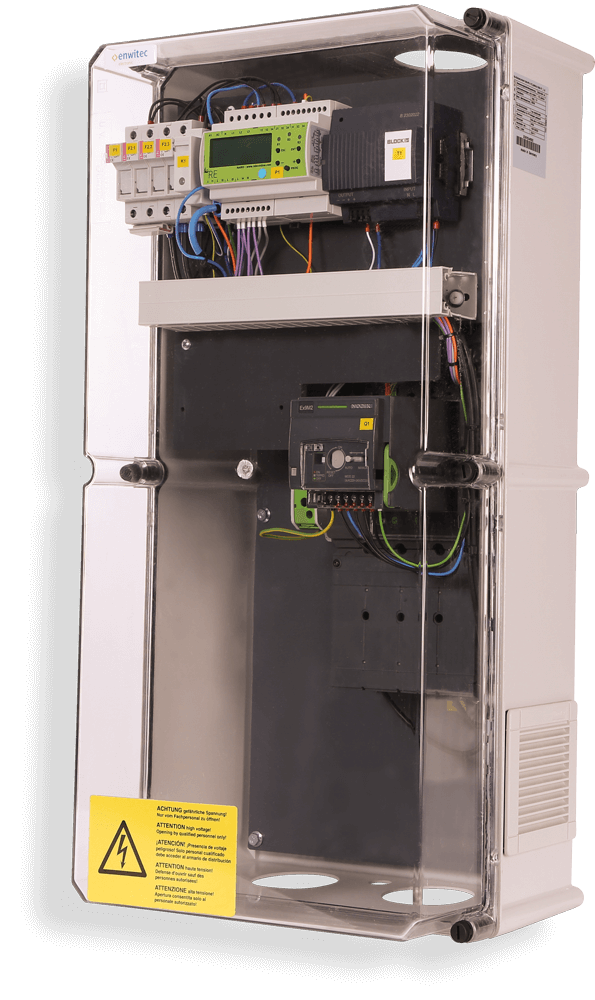

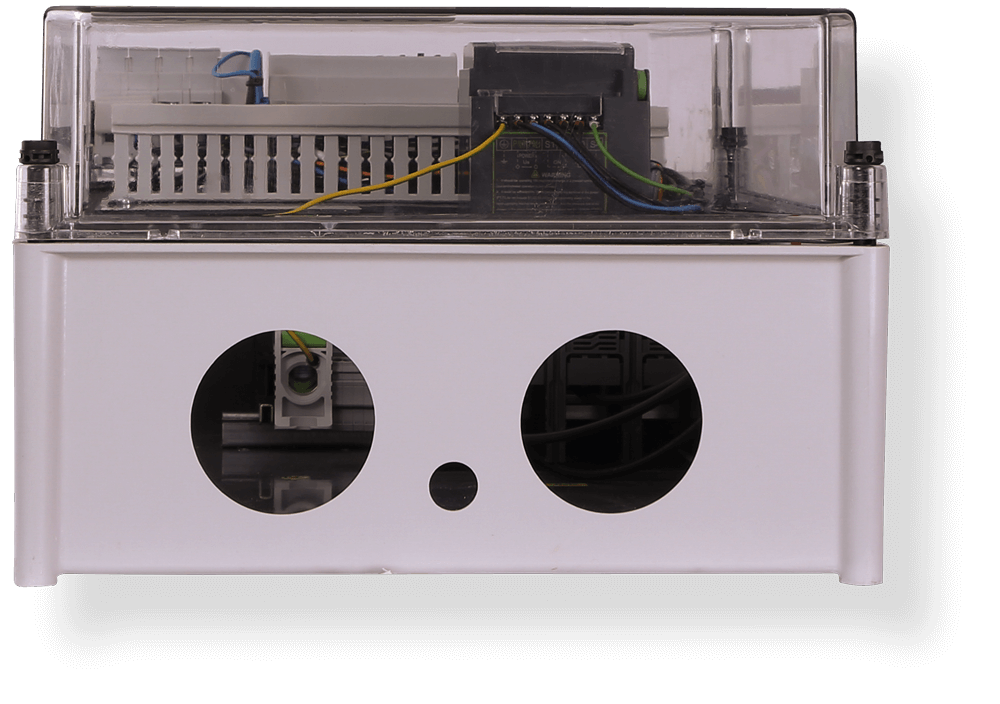

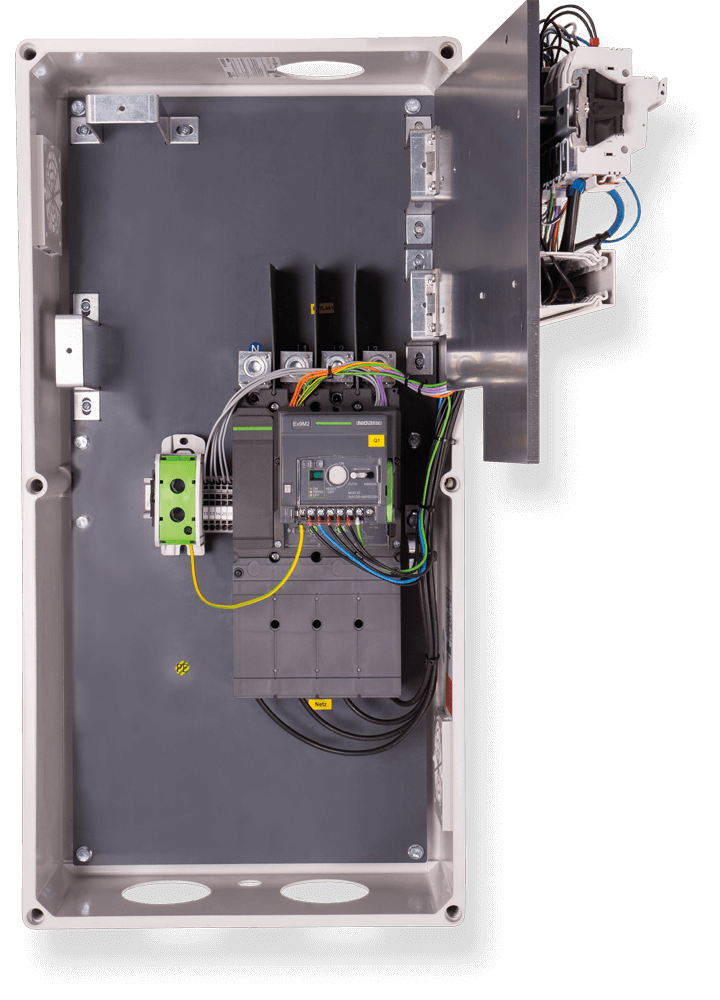

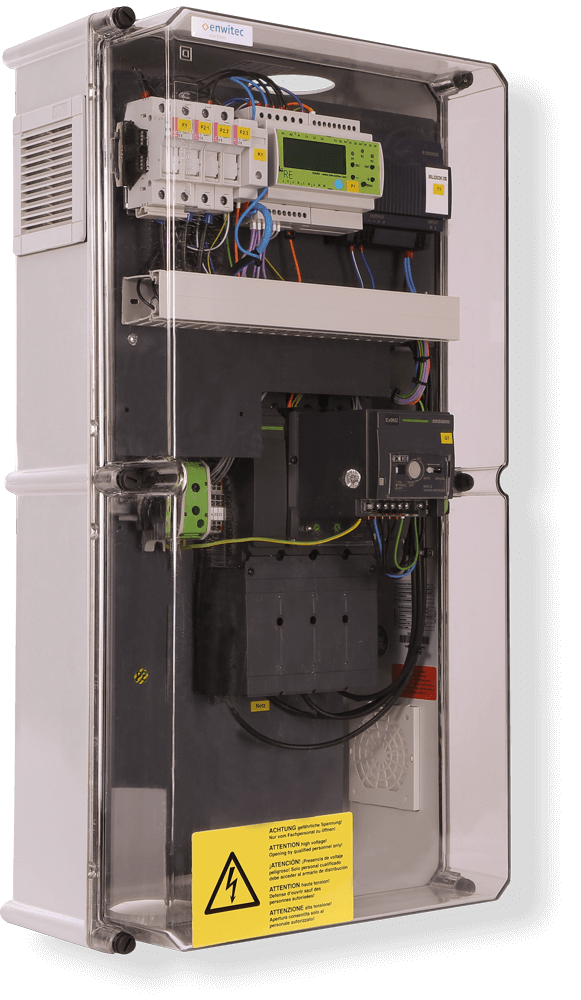

Enwitec NA protection 172.5 kVA, 250 A – TNS & TT
Central low-voltage protection and disconnect switch for PV systems up to 155.3*kW/172.5 kVA in accordance with VDE-AR-N 4105:2018-11.
Product features:
- Max. apparent power of the generation system: 172.5 kVA
- Mains voltage: 3 x 230 / 400 V, 50 Hz
- Rated current: 250 A
- Mains configuration: TT or TN-S (all-pole isolation)
- FRT capability: Yes
- Protection class: IP54
- Dimensions: approx. 360 x 720 x 230 (mm) (W x H x D)
- Weight: 15.4 kg
