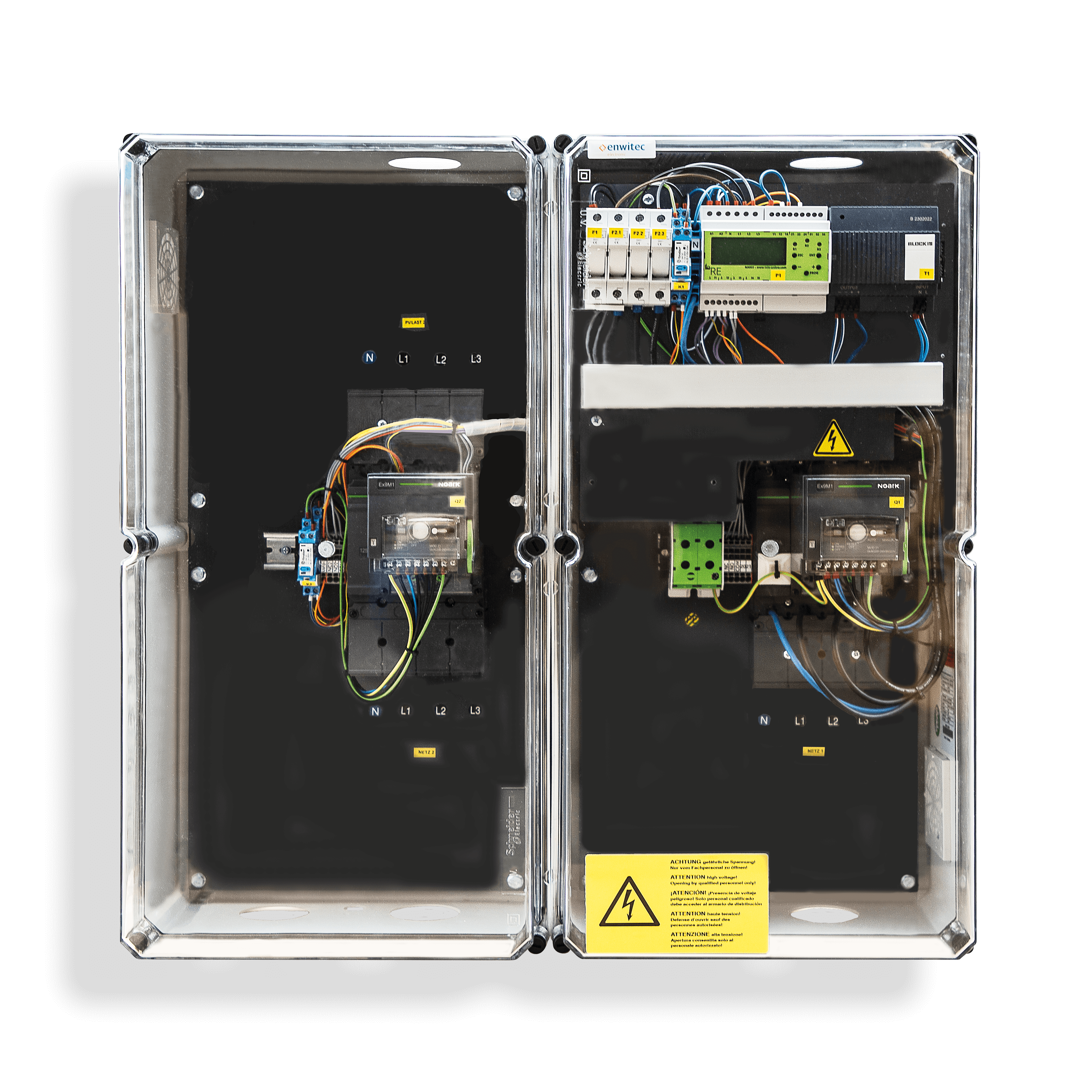

Enwitec NA protection 2x86.3 kVA, 2x125 A - TNS / TT network
| Manufacturer Art. No.: | 10018716 |
|---|---|
| Art. Nr.: | 11236 |
| Pieces per package unit: |
|
| Accessory type: | Grid and system protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
11236
Description
Enwitec NA protection 2x86.3 kVA, 2x125 A – TNS / TT network
Central low-voltage protection and coupling switch for PV systems up to 2x 77.6 kW / 86.3 kVA in accordance with VDE-AR-N 4105:2018-11.
Product features:
- Max. apparent power of the generation system: 2 x 86.3 kVA
- Mains voltage: 3 x 230 / 400 V, 50 Hz
- Rated current: 2 x 125 A
- Mains configuration: TT or TN-S
- Protection class: IP54
- Dimensions: approx. 720 x 720 x 230 (mm) (W x H x D)
- Weight: 23 kg
