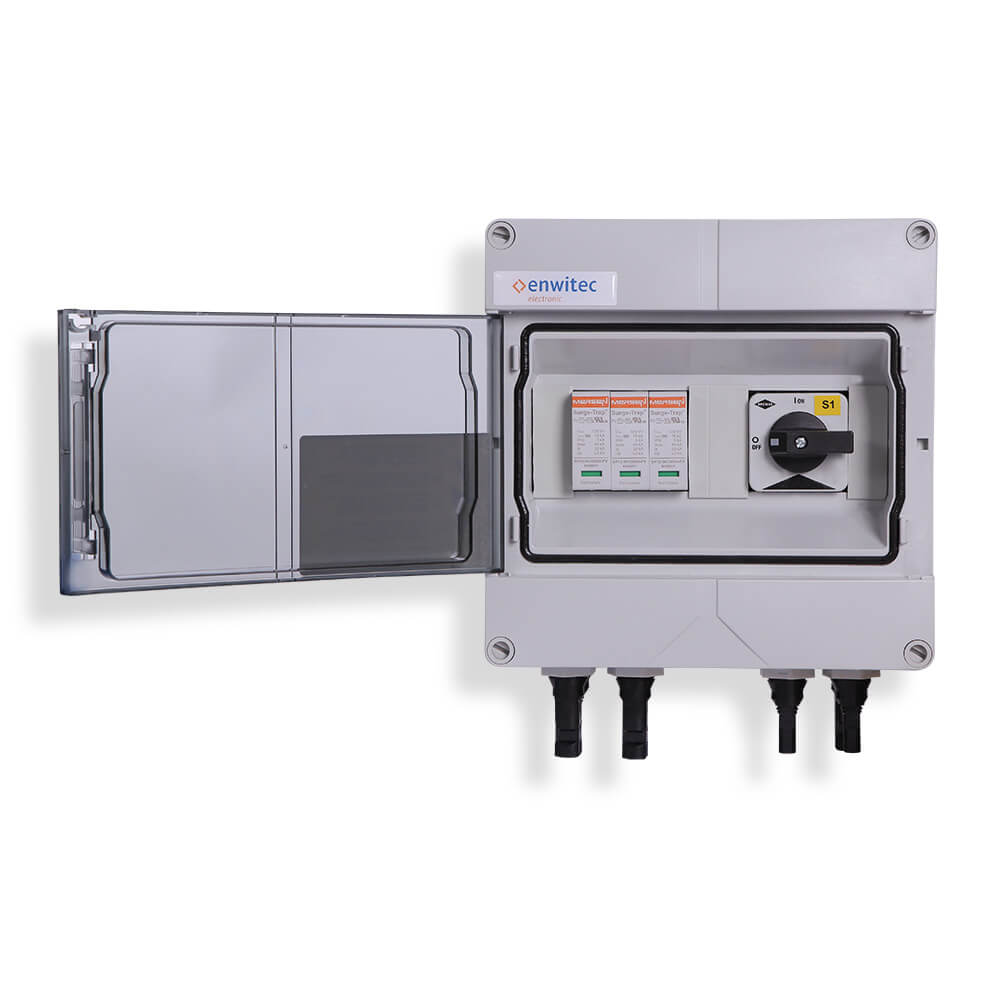

Enwitec overvoltage protection DC type I+II, 1 MPPT m. load-break switch
| Type of manufacturer: | GAK-S-1000-2R-T50-BC-PC-1.0_MC4 |
|---|---|
| Manufacturer Art. No.: | 10017213 |
| Art. Nr.: | 12287 |
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Available from stock
Product number:
12287
Description
DC Generator Connection Box GAK-S-1000-2R-T50-BC-PC-1.0_MC4 – Safe and efficient PV cabling
The Enwitec DC generator connection box GAK-S-1000-2R-T50-BC-PC-1.0_MC4 is the ideal solution for reliable and safe cabling of Photovoltaic systems. With an integrated load break switch (50 A) and Class I+II surge protection, it protects inverters and PV strings from damage caused by lightning strikes and grid feedback. Thanks to its compact design and MC4 connectors, quick installation and maintenance are guaranteed. The robust polycarbonate housing (IP65) makes it ideal for sheltered outdoor areas.
Product benefits
- Safe and efficient DC cabling for Photovoltaic systems
- Integrated load break switch (50 A) for simple and safe maintenance
- Type I+II surge protection ensures reliable protection against lightning strikes
- MC4 connectors for quick and easy installation
- Robust polycarbonate housing (IP65) for use in sheltered outdoor areas
- Space-saving design (200 x 200 x 123 mm) with practical wall mounting
Product features
- Rated operating voltage: 1000 V DC
- Max. number of PV strings: 2 inputs / 1 output
- Rated current: 32 A total, 16 A per string
- Load break switch: Bremas DX150301EUADMV4 (50 A, DC-21B)
- Surge protection: Type I+II (max. lightning surge current: 5 kA)
- Cable entry: MC4 PV-ADBP4-S2/6 and MC4 PV-ADSP4-S2/6
- Protection rating: IP65, Protection class II
- Operating temperature: -25°C to +35°C
- Housing material: Polycarbonate, RAL 7035, transparent hinged cover
- Dimensions & weight: 200 x 200 x 123 mm, approx. 1.8 kg
