enwitec overvoltage protection DC type II, 3 MPPT, terminals
| Manufacturer Art. No.: | 10014959 |
|---|---|
| Art. Nr.: | 3760 |
| Pieces per package unit: |
|
| Accessory type: | Overvoltage protection |
Prices are only visible to business customers upon successful registration.
Product number:
3760
Description
DC overvoltage protection, type II for 3 MPP
Area of application: according to VDE 0100-443 and 0100-534, building without external lightning arrester

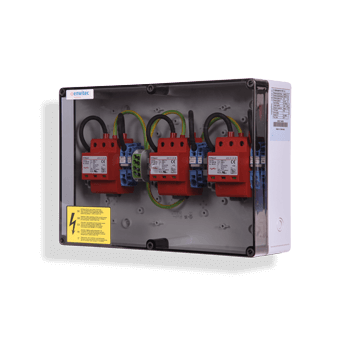

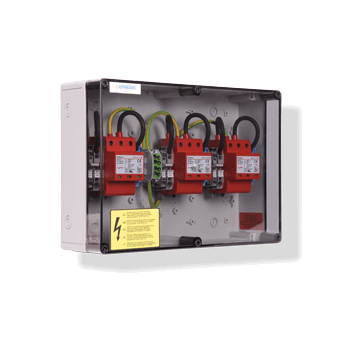

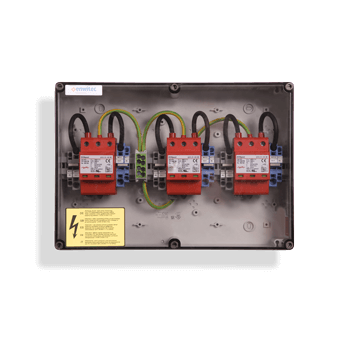

Compact and pre-fabricated box with type II surge arresters for the DC side. Suitable for INV with only 3 MPP up to 1000 V DC voltage. This overvoltage box has 3 input terminals each with spring-type terminal contacts per pole and arrester. Here, cable end sleeves are not required. This results in an even larger contact area and low contact resistance. The output terminal is also screwless.
Specifications:
- Arrester element of type II for 3 MPP trackers
- 3 input terminals up to 6 mm² each
- 1 input terminal up to 10 mm each
- IP65
- 361 x 254 x 112 mm wall mount
Downloads
Downloads
-
Matching accessories
-
- Remaining quantity
Raycap AC ÜSS ZPS T1H-300-3+1-E-F-L- Art. Nr.: 6120
{ "id": "67990dabed585d789f97311907b60e4c", "item_brand": "", "item_name": "Raycap AC ÜSS ZPS T1H-300-3+1-E-F-L", "item_id": "6120", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "67990dabed585d789f97311907b60e4c" } } -
Raycap AC ÜSS ZPS T1H-300-3+1-F-L- Art. Nr.: 6121
{ "id": "b7d9996e32d153d2987af647e471bf8b", "item_brand": "", "item_name": "Raycap AC ÜSS ZPS T1H-300-3+1-F-L", "item_id": "6121", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "b7d9996e32d153d2987af647e471bf8b" } } -

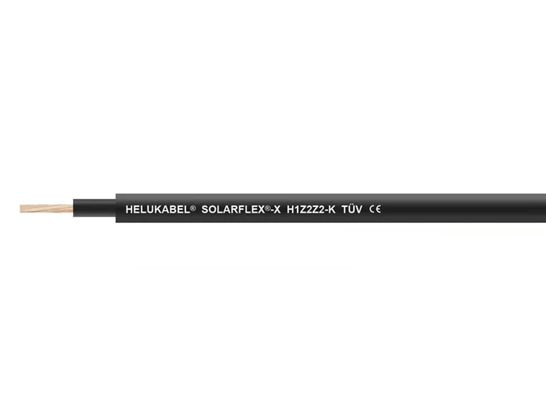

Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 100m black- Type of manufacturer: 713531
