enwitec overvoltage protection DC types I+II, 4 MPPT, terminals

Type of manufacturer: GAK-enwitec-S-1000-4x2R-X-BC-PES-1.0
Manufacturer Art. No.: 10014278
Art. Nr.: 4339
Pieces per package unit:
  • 1 per carton
Accessory type: Overvoltage protection
Prices are only visible to business customers upon successful registration.
  • Remaining quantity
Successor product available
A successor for this product is available.
Product number: 4339
Prices are only visible to business customers upon successful registration.
  • Remaining quantity
Successor product available
A successor for this product is available.
Product number: 4339
  • Tech tip

    Overvoltage protection on the DC side is only half the thing. This is rounded by another protective box for the AC side.

Description

DC surge protector, Type I+II for 4 MPPT

This product has been discontinued by the manufacturer. You can find the successor here: enwitec DC surge protection, Type I+II, 4 MPPT, terminals | 16927

Scope of application: in accordance with VDE 0100-443 and 0100-534, buildings with and without external lightning protection.

Compact, pre-assembled box with Type I+II surge arresters for the DC side. Suitable for inverters with up to 4 MPPT channels and a DC voltage of up to 1000 V. This surge protection box has 2 terminals per MPPT with spring-loaded contacts on both the input and output sides. No ferrule terminals are required here. This results in an even larger contact area and low contact resistance.

Technical data:

  • Type I+II surge arrester element for 4 MPPT trackers
  • Input: 2 strings per MPPT with terminals for 0.5–10 mm² fine-stranded copper wire without ferrules
  • Output: 1 string per MPPT with terminals for 0.5–25 mm² fine-stranded copper wire without ferrules
  • Rated insulation voltage: 1000 V
  • Rated current per string: 15 A
  • Protection class: IP65

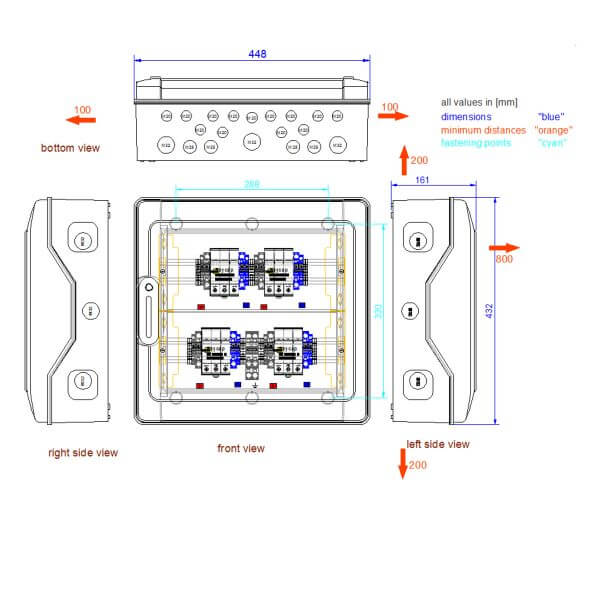

  • Dimensions (WxHxD): 448 x 432 x 161 mm
  • Matching accessories

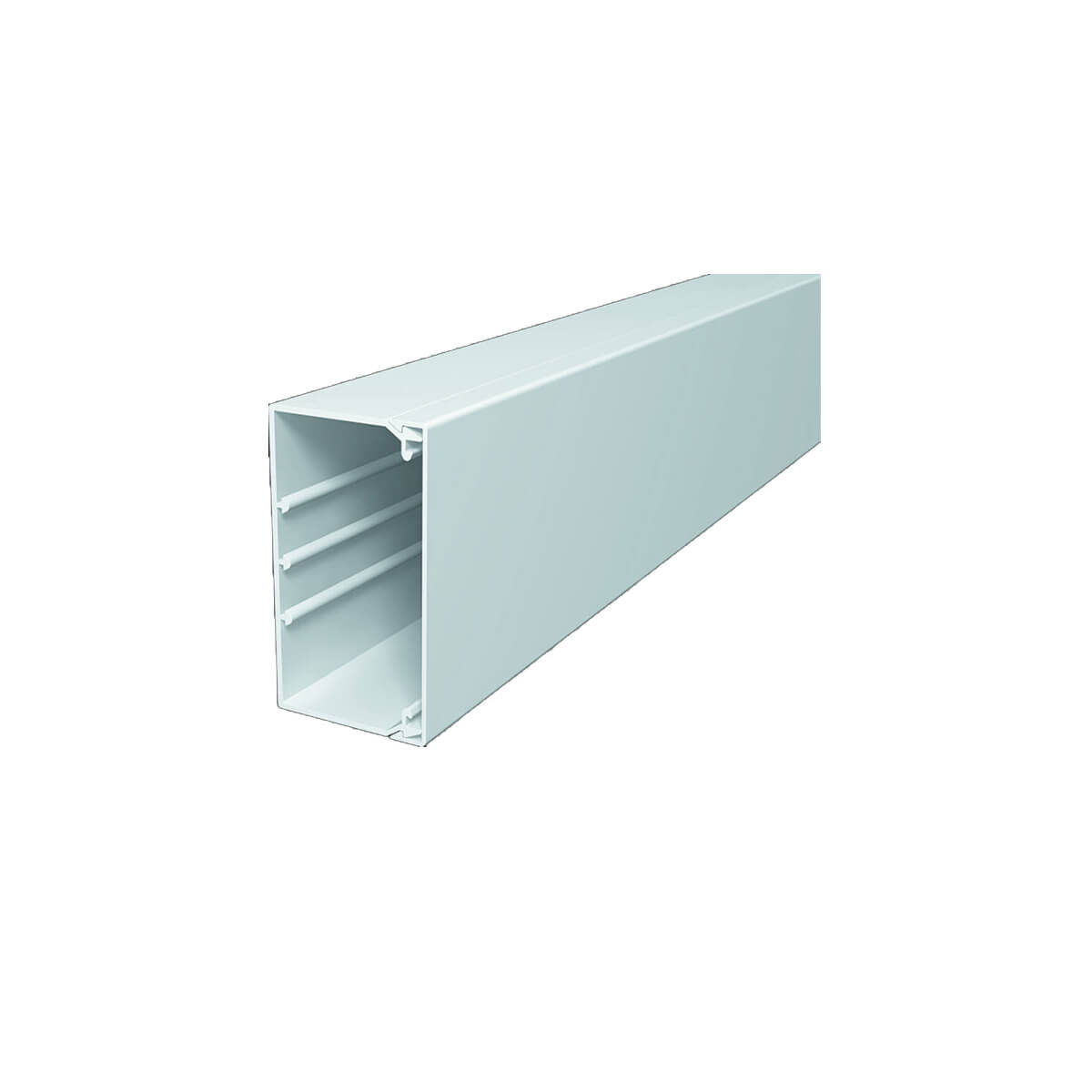

    • Cable duct 60x110 mm, pure white, PU 16.0 m
      • Type of manufacturer: WDK60110RW
      • Art. Nr.: 5009

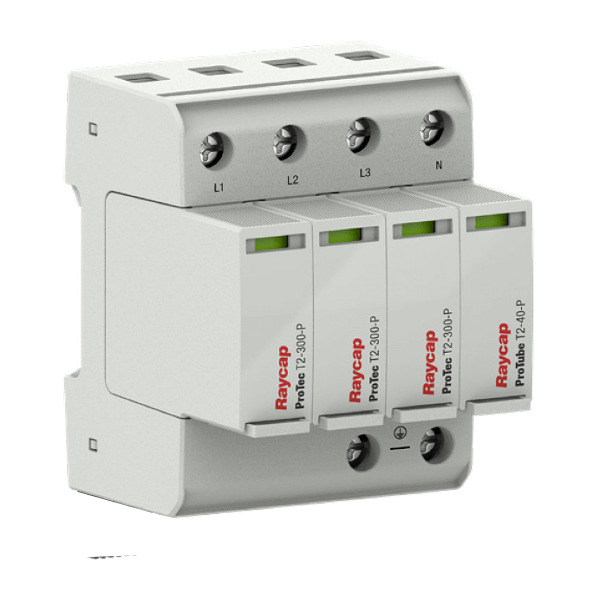

    • Raycap AC overvoltage protection top-hat rail type II TN-S/ TT
      • Type of manufacturer: Protec T2-300-3+1
      • Art. Nr.: 4329
