Enwitec switching device Fronius Symo Hybrid / Gen24, with FRT, AT
| Type of manufacturer: | 3PH_FRO_BBD3P_20KW_3PH_FRT_1.0 |
|---|---|
| Manufacturer Art. No.: | 10016181 |
| Art. Nr.: | 5814 |
| Pieces per package unit: |
|
| Accessory type: | Emergency power |
Prices are only visible to business customers upon successful registration.
- Remaining quantity
Product number:
5814
Description
Emergency power with your Enwitec switching device Fronius Symo Hybrid / Gen24, with FRT, AT
This switching device enables your Fronius Symo Hybrid / Symo Gen24 system to provide a 3-phase backup power supply for specific loads in the event of a power failure. Due to the DC coupling, the modules remain active and can contribute to the supply or storage charging.
3-pole mains disconnection - the variant with all-pole disconnection can be found here.
This variant includes the Fault-Ride-Through function. You will find the standard variant with 3-pole disconnection here.
Product benefits:
- Completely ready for connection and approved by Fronius
- Implements the function Fault-Ride-Through (FRT). This is required by a few grid operators in Austria according to TOR generator type A.
- 3-pole mains disconnection
- Fronius Smart Meter TS65A-3 is integrated
- Very quiet, hum-free contactor

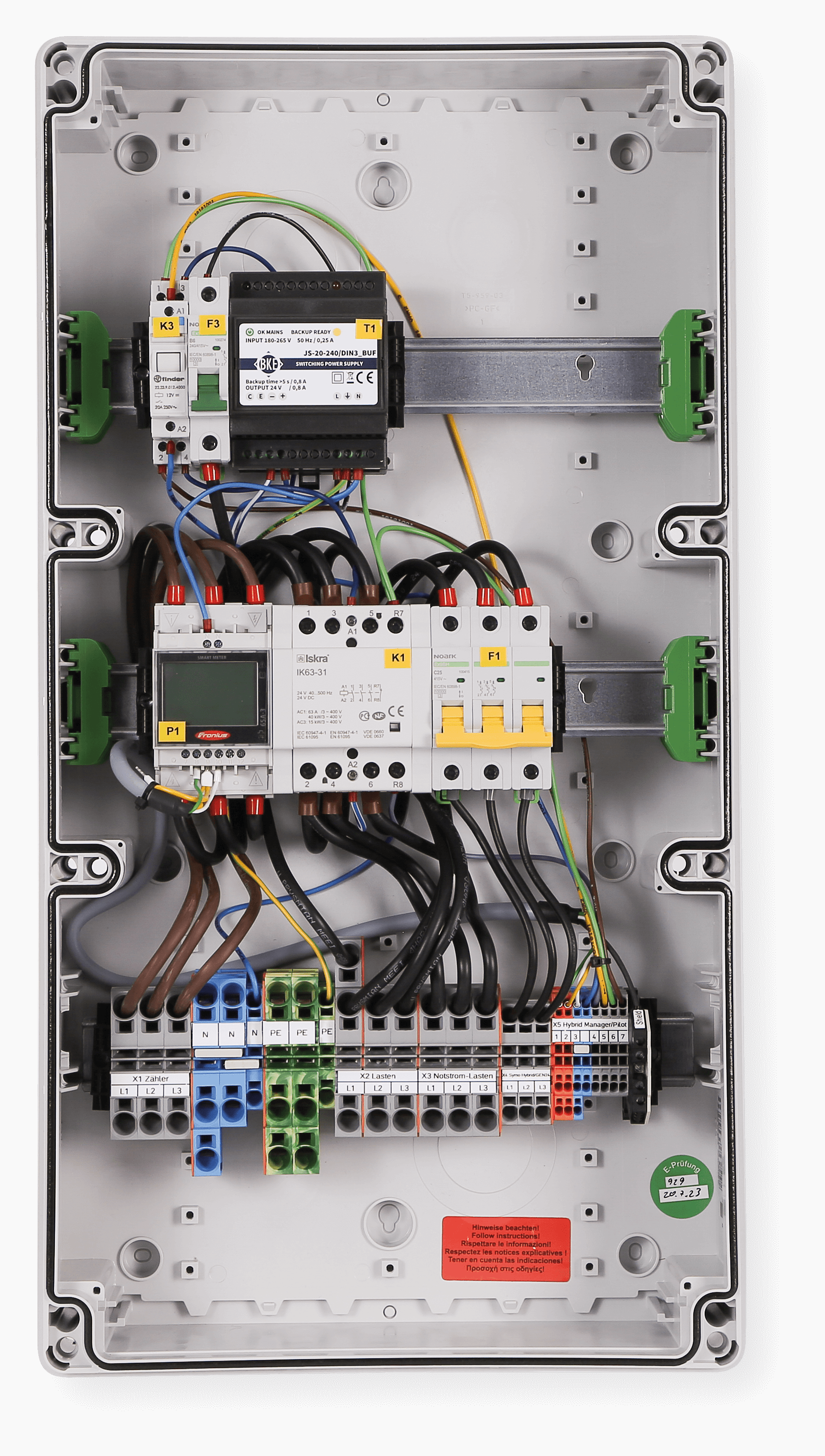

- Pre-assembled including all cable glands and installation guide
- Design according to the "Fronius Symo Hybrid / Gen24 - Overview" circuit diagram

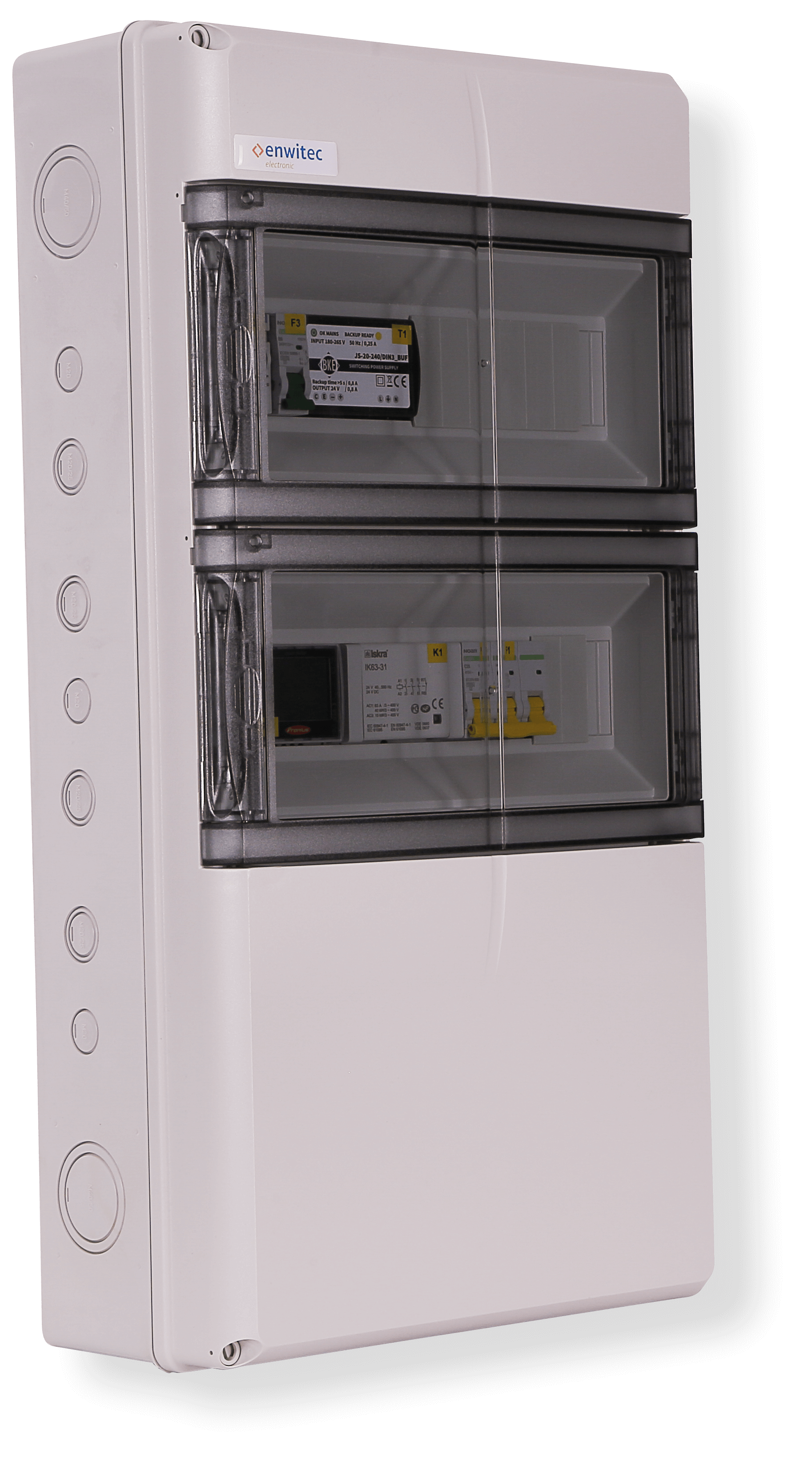

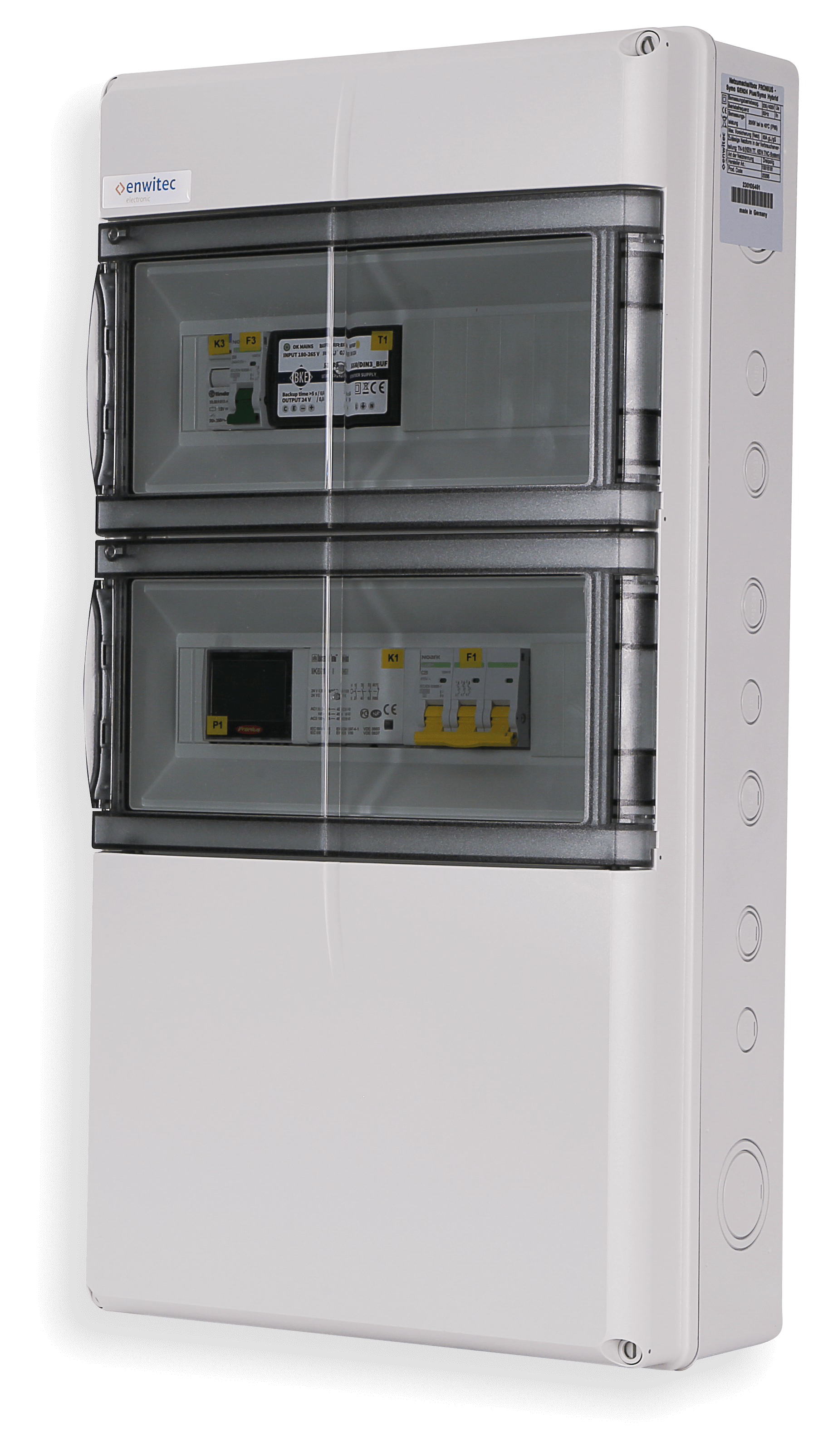

- Protection type IP65 with transparent door
- Max. continuous power up to 20 kW
- Approved for mains type: only TN-S
- For Austria
- Manufacturer’s article number: 10015582
Note: not suitable for Fronius Primo Gen24
