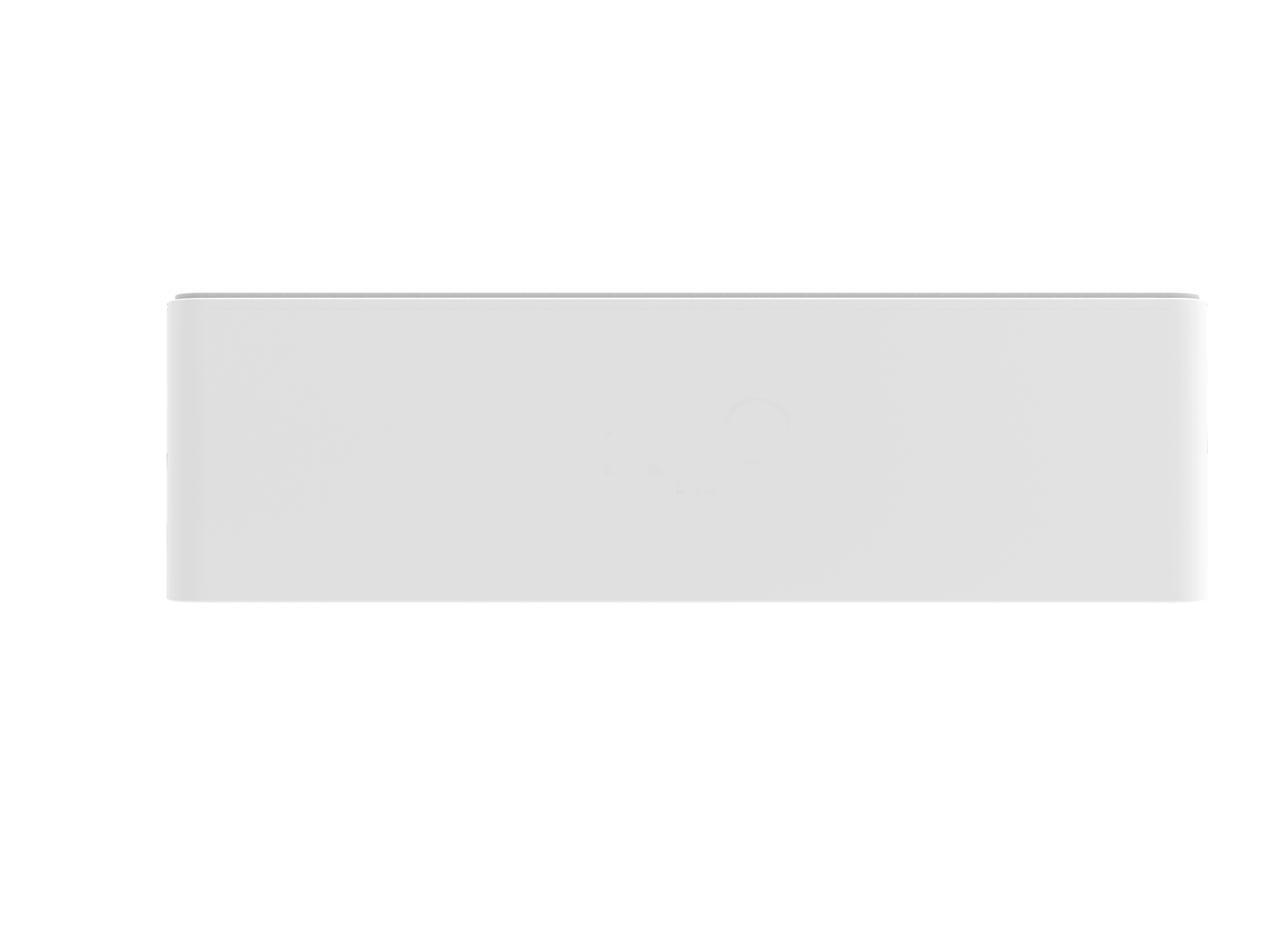

Fox ESS DQ6.6 – Battery module
| Type of manufacturer: | DQ6.6-S |
|---|---|
| Manufacturer Art. No.: | 30-229-00034-00 |
| Art. Nr.: | 15999 |
| Pieces per package unit: |
|
| Net capacity: | 6.29 kWh |
| Battery type: | High volt lithium |
| Warranty: | 10 Jahre |
| Solar battery type: | High voltage battery |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15999
Description
Fox ESS DQ6.6 – Battery module
The FoxESS DQ6.6 is a high-performance, modular high-voltage battery storage system based on long-life LiFePO₄ technology, designed for a wide range of storage applications in both residential and commercial settings. The minimum configuration, comprising 1 master and 2 slave modules, offers a usable capacity starting at 19.86 kWh and can be expanded in stages up to 92.68 kWh simply by adding further modules. Thanks to plug-and-play installation, an integrated pre-heating function for winter operation and natural convection cooling, the DQ6.6 is equally suitable for indoor and outdoor use – fanless, silent and low-maintenance. CAN communication ensures seamless integration with compatible FoxESS inverters.
Product features:
- Cell technology: LFP (LiFePO₄); Depth of discharge: 95%; round-trip efficiency: >95%
- Rated energy per module: 6.62 kWh; Rated capacity: 115 Ah
- Minimum configuration: 19.86 kWh (1× Master + 2× Slave)
- Maximum capacity: 92.68 kWh (1× Master + 13× Slave)
- Recommended charge/discharge current: 50 A; max. 80 A; peak (60 s): 110 A
- Operating voltage: 104.4–919.8 V
- Operating temperature (pre-heating function off): Charging 0–55 °C / Discharging −10–55 °C
- Operating temperature (preheating function on): charging and discharging −25–55 °C
- Protection rating: IP65; Cooling: Natural convection; Max. operating altitude: 3,000 m
- Communication: CAN; Certificates: IEC 62619, IEC 61000-6-1/2/3/4, UN 38.3
Product benefits:
- Modular high-voltage storage system: scalable from 19.86 kWh (minimum configuration) to 92.68 kWh in 12 configuration levels
- 95% Depth of discharge for maximum utilisation of stored energy
- Integrated preheating function enables charging from −25 °C – reliable performance even in winter
- Plug-and-play installation without complex cabling – saves installers valuable time
- Fire protection function integrated as standard for enhanced operational safety
- Natural convection cooling – silent, low-maintenance operation without a fan
- IP65 protection for indoor and outdoor use
- Round-trip efficiency of over 95% for minimal energy losses during charging and discharging
- CAN communication for reliable integration into the FoxESS system environment
- LED status indicator directly on the unit for a quick overview of the operating status
