Fox ESS EQ3300 - 12.8 kWh
| Art. Nr.: | 14531 |
|---|---|
| Net capacity: | 12.8 kWh |
| Battery type: | High volt lithium |
| Cycles: | 6000 |
| Warranty: | 10 Jahre |

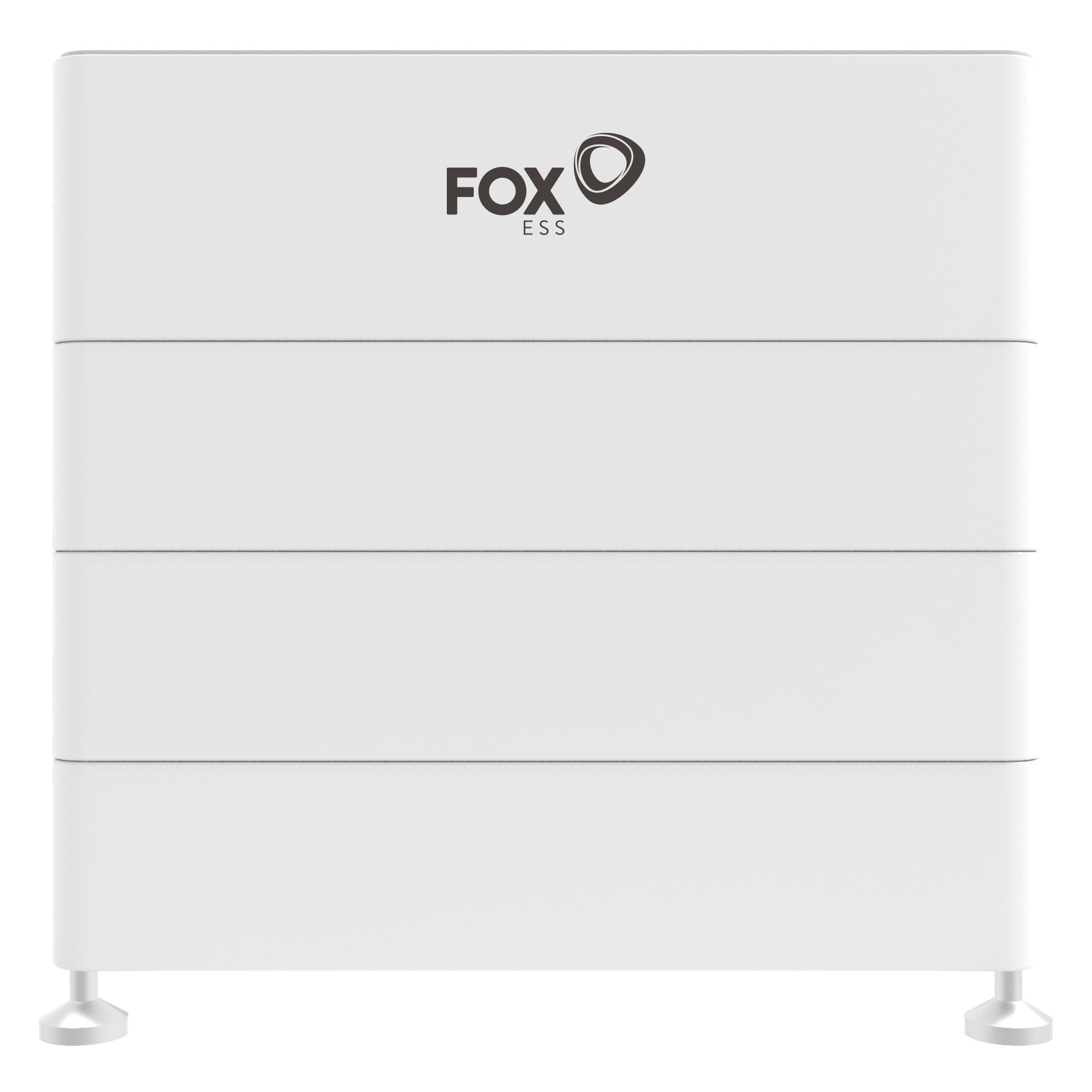

Fox ESS EQ3300 – 12.8 kWh
The FOX ESS EQ3300 is a modern high-voltage battery storage system with 3.2 kWh per module, which can be flexibly expanded to a total capacity of up to 19.2 kWh. The system impresses with its simple plug-and-play installation, robust LiFePO₄ technology and excellent cycle stability. The EQ3300 is the ideal complement to PV systems and energy management solutions, maximising Self-consumption and enabling self-sufficient operation. With high-quality certification and a secure IP65 enclosure, the EQ3300 is suitable for both indoor and outdoor use – durable, safe and adaptable to any application.
Product features:
- Storage capacity: 3.2 kWh per module, expandable up to 19.2 kWh
- Nominal voltage: 128–384 V (depending on configuration)
- Operating voltage: 116–438 V
- Depth of discharge (DOD): 90%
- Cycle life: ≥ 6,000 charge/discharge cycles
- Battery type: LiFePO₄ (lithium iron phosphate)
- Max. modules: Up to 6 in series
- Communication: CAN bus integration
- Protection class: IP65, suitable for indoor and outdoor use
- Operating temperature: –10 to +40 °C (charging 0–55 °C, discharging –10 to 55 °C)
- Certifications: IEC 62619, IEC 61000-6-1/2/3/4, UN38.3
- Dimensions: depending on configuration 570 x 375/915 x 380 mm
- Weight: 82.2 – 226.2 kg depending on configuration
Product benefits:
- Modular and flexibly scalable from 3.2 kWh to 19.2 kWh for customised storage solutions
- High depth of discharge of 90% for maximum energy utilisation
- Robust LiFePO₄ cells for maximum safety and long service life
- Quick and straightforward installation thanks to the plug-and-play concept
- Sturdy, water-resistant IP65 housing – suitable for indoor and outdoor use
- Wide temperature range for a broad range of applications
- Comprehensive international certifications for maximum safety
The FOX ESS EQ3300 high-voltage battery is ideally suited for the efficient storage of Solar power and other energy applications, offering a modern, scalable solution for a wide range of applications.
