Fox ESS G-Max All-In-One
| Manufacturer Art. No.: | GM215kWh-100kW-2h |
|---|---|
| Art. Nr.: | 12956 |
| Pieces per package unit: |
|
| Battery type: | LFP |
| Charging power: | 100 kW |
| Commercial storage type: | All-in-One |
| Discharging power: | 100 kW |
| Installation location: | Outdoor |
| Power: | 100 kW |
| Usable capacity: | 215 kWh |
| WEEE-Number: |
|
Prices are only visible to business customers upon successful registration.
On request
Product number:
12956
Description

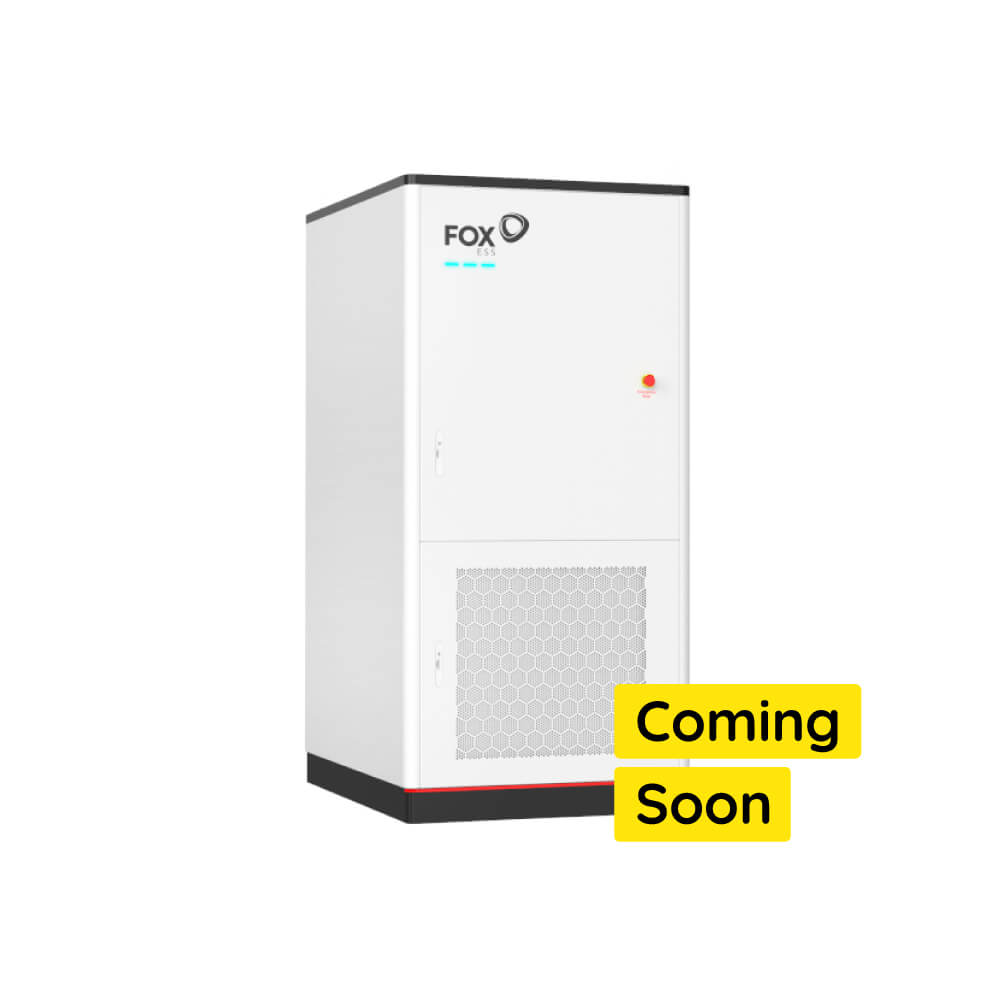

Fox ESS G-Max All-In-One 215kWh/100kW
The G-MAX all-in-one battery storage system from Fox ESS combines powerful technology with sophisticated design and offers an efficient solution for large-scale energy storage. The G-MAX series embodies the “all-in-one” design philosophy: a long-life battery, an intelligent BMS, a powerful PCS, a preventive safety system, an intelligent distribution system and effective heat dissipation management are combined in a standard container. This makes installation particularly easy. With a storage capacity of 215 kWh and a power output of 100 kW at 2-hour discharge, the system is ideal for commercial and industrial applications.
Product advantages:
- High efficiency of up to 98.6 %
- Easy installation and maintenance
- Parallel connection of up to 10 systems (5x in off-grid mode)
Product features:
- Max. output: 100 kW
- IP54 and high temperature tolerance
- Operating temperature: -25 °C to +55 °C for versatile applications
- Dimensions (W x D x H): 1040 x 1500 x 2200 mm
- Weight: approx. 2,500 kg
