Fronius Ohmpilot heating element control

Manufacturer Art. No.: 4,050,016
Art. Nr.: 3041
Dimensions: 280 x 110 x 350 in mm (HxWxD)
Heating capacity: 0-9 kW
Heating system: Accessories
WEEE-Number:
  • DE39936572
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 3041
Prices are only visible to business customers upon successful registration.
Available from stock
Product number: 3041
  • Tech tip

    Please note that not every 3-phase heating element can be controlled by the Fronius Ohmpilot. On a heating rod the neutral conductor has to lead out to the connection. For a list of potential manufacturers, see downloads.

Description

Fronius Ohmpilot – Intelligent use of excess PV power for hot water and heating

Use the Fronius Ohmpilot 9.0-3 to maximize the self-consumption of your PV system and at the same time provide cosy warmth in your home. Now available in the Memodo Shop!

The Fronius Ohmpilot is an innovative consumption controller that efficiently uses excess photovoltaic electricity to generate heat. Thanks to infinitely variable power regulation from 0 to 9 kW, the surplus PV electricity can be used optimally for hot water heating and heating systems. This increases the proportion of self-consumption and reduces dependence on the power grid. The Ohmpilot is compatible with all Fronius inverters and can be seamlessly integrated into existing PV systems.

Product advantages

  • 1- or 3-phase heating elements can be connected (neutral conductor connection required)
  • Stepless control thanks to pulse width modulation
  • Control via Fronius Solar.web

Product features Fronius Ohmpilot

  • Output power: 1-phase = 3 kW / 3-phase = 9 kW
  • Voltage 230 V or 400 V AC
  • AC Output current maximum 13 A per phase
  • Minimum temperature maintenance and legionella control
  • Wall mounting
  • Communication: LAN, Wi-Fi, RS485
  • Dimensions: 350 x 280 x 110 mm (H x W x D)
  • Protection category: IP54
  • Weight: 3.9 kg

Examples of use:

  • Domestic hot water preparation
  • Support for heating systems such as infrared heaters or towel dryers
  • Integration into existing PV systems to optimize self-consumption
  • Use in combination with Fronius inverters and smart meters

Of course, another ohmic consumer can also be connected to the Fronius Ohmpilot, such as an infrared heater or a towel dryer.

Videos
Videos
  • Fronius Ohmpilot Installation Notes
    The YouTube video has been blocked due to the cookie settings.
  • Fronius Ohmpilot Commissioning
    The YouTube video has been blocked due to the cookie settings.
  • Matching accessories

    • Fronius Symo Gen24 10.0 Plus
      • Type of manufacturer: 4,210,157,002 (,95)
      • Art. Nr.: 4957
      Available from stock
      { "id": "49f53ff46b575c3c95d625c8a7ffd12c", "item_brand": "", "item_name": "Fronius Symo Gen24 10.0 Plus", "item_id": "4957", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "49f53ff46b575c3c95d625c8a7ffd12c" } }
    • Fronius Symo Gen24 8.0 Plus
      • Type of manufacturer: 4,210,155,002 (,95)
      • Art. Nr.: 4956
      Available from stock
      { "id": "1d6f9b4b883f5d1cab10b483db35a3a0", "item_brand": "", "item_name": "Fronius Symo Gen24 8.0 Plus", "item_id": "4956", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "1d6f9b4b883f5d1cab10b483db35a3a0" } }

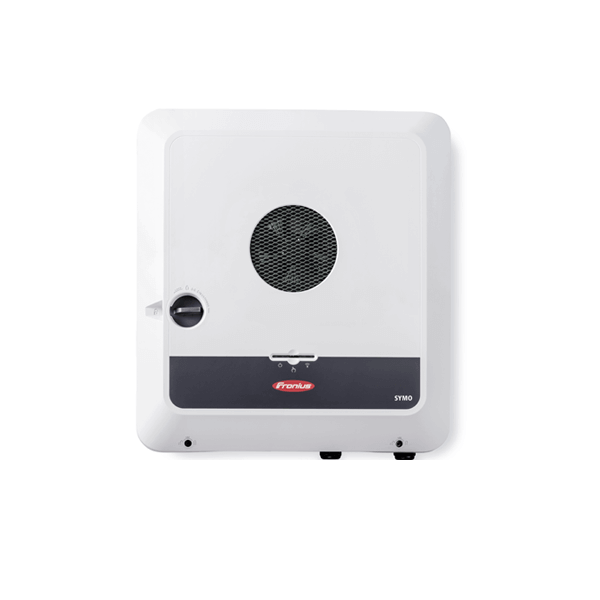

    • Fronius Symo Gen24 6.0 Plus
      • Type of manufacturer: 4,210,153,002 (,95)
      • Art. Nr.: 4955
      Available from stock
      { "id": "9936f674bd065c91869b294bba3a55fb", "item_brand": "", "item_name": "Fronius Symo Gen24 6.0 Plus", "item_id": "4955", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "9936f674bd065c91869b294bba3a55fb" } }

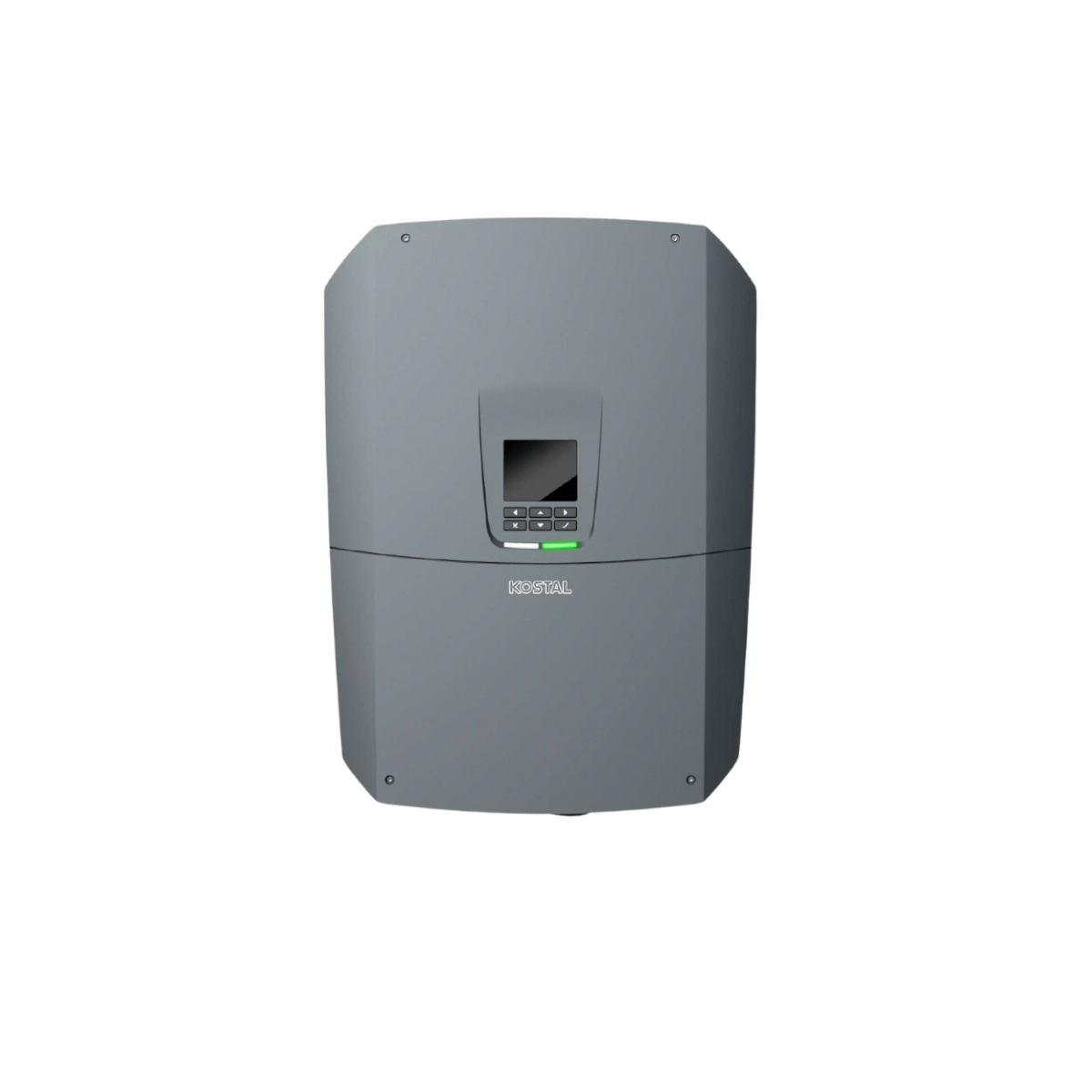

    • { "id": "8056b51f7dd45b02929a8af6457c4257", "item_brand": "", "item_name": "Kostal Plenticore G3 L 15-20 kW", "item_id": "8112", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8056b51f7dd45b02929a8af6457c4257" } }

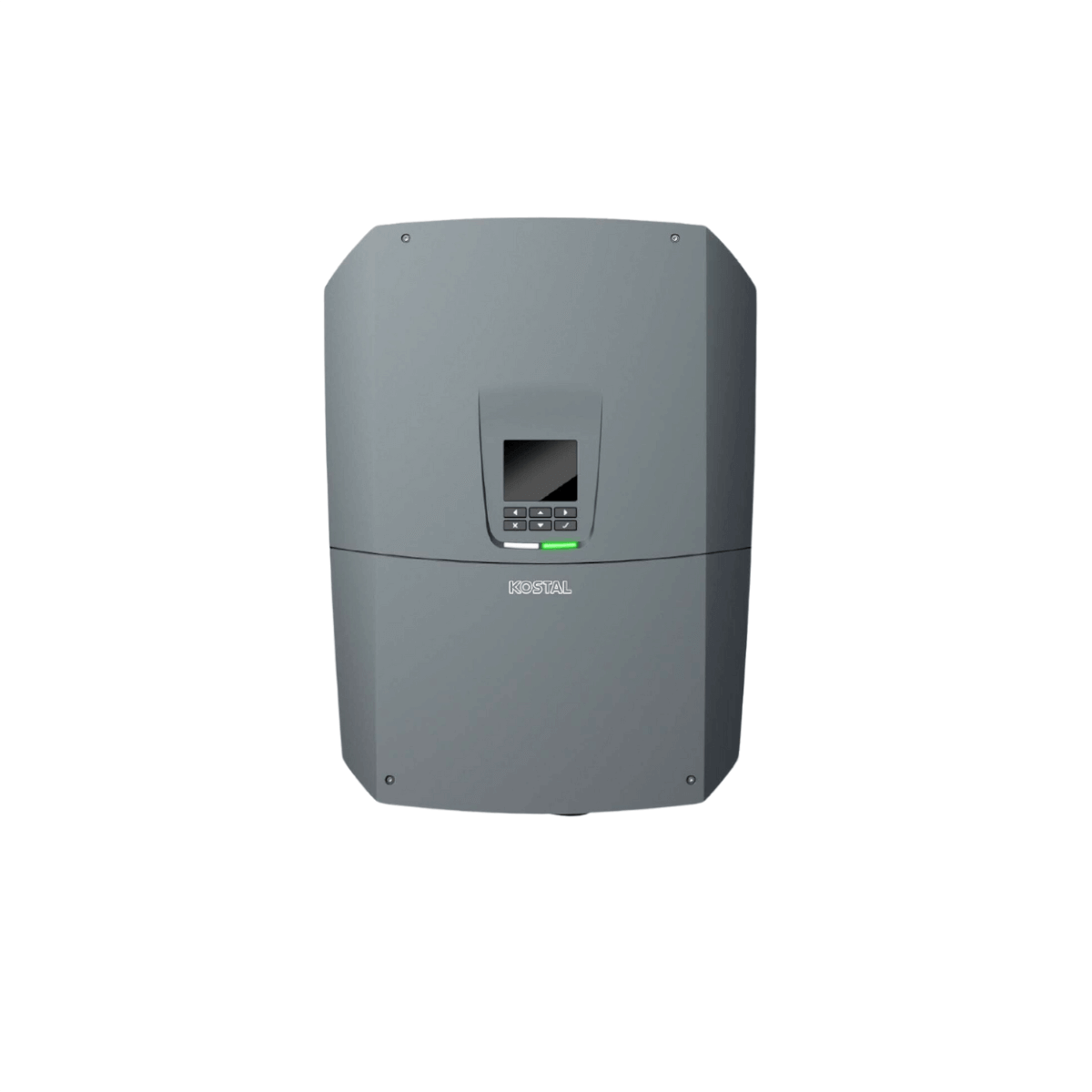

    • { "id": "a2ad918f496a56a38413878b2fc63401", "item_brand": "", "item_name": "Kostal Plenticore G3 M 8.5-12.5 kW", "item_id": "8095", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "a2ad918f496a56a38413878b2fc63401" } }
