Fronius Symo GEN24 Plus mains switching box incl. smart meter, FRT capable
| Type of manufacturer: | SOL-SC-FRO-SY/FRT/400V/63A |
|---|---|
| Manufacturer Art. No.: | 1632300 |
| Art. Nr.: | 10383 |
| Pieces per package unit: |
|
| Accessory type: | Emergency power |
| WEEE-Number: |
|
-
-
{ "id": "49f53ff46b575c3c95d625c8a7ffd12c", "item_brand": "", "item_name": "Fronius Symo Gen24 10.0 Plus", "item_id": "4957", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "49f53ff46b575c3c95d625c8a7ffd12c" } } -
{ "id": "1d6f9b4b883f5d1cab10b483db35a3a0", "item_brand": "", "item_name": "Fronius Symo Gen24 8.0 Plus", "item_id": "4956", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "1d6f9b4b883f5d1cab10b483db35a3a0" } } -
{ "id": "9936f674bd065c91869b294bba3a55fb", "item_brand": "", "item_name": "Fronius Symo Gen24 6.0 Plus", "item_id": "4955", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "9936f674bd065c91869b294bba3a55fb" } } -
{ "id": "4782d97b65f552a2b3ba62abef35c13d", "item_brand": "", "item_name": "Fronius Symo GEN24 12.0 Plus SC (hybrid inverter)", "item_id": "11791", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "4782d97b65f552a2b3ba62abef35c13d" } }
-

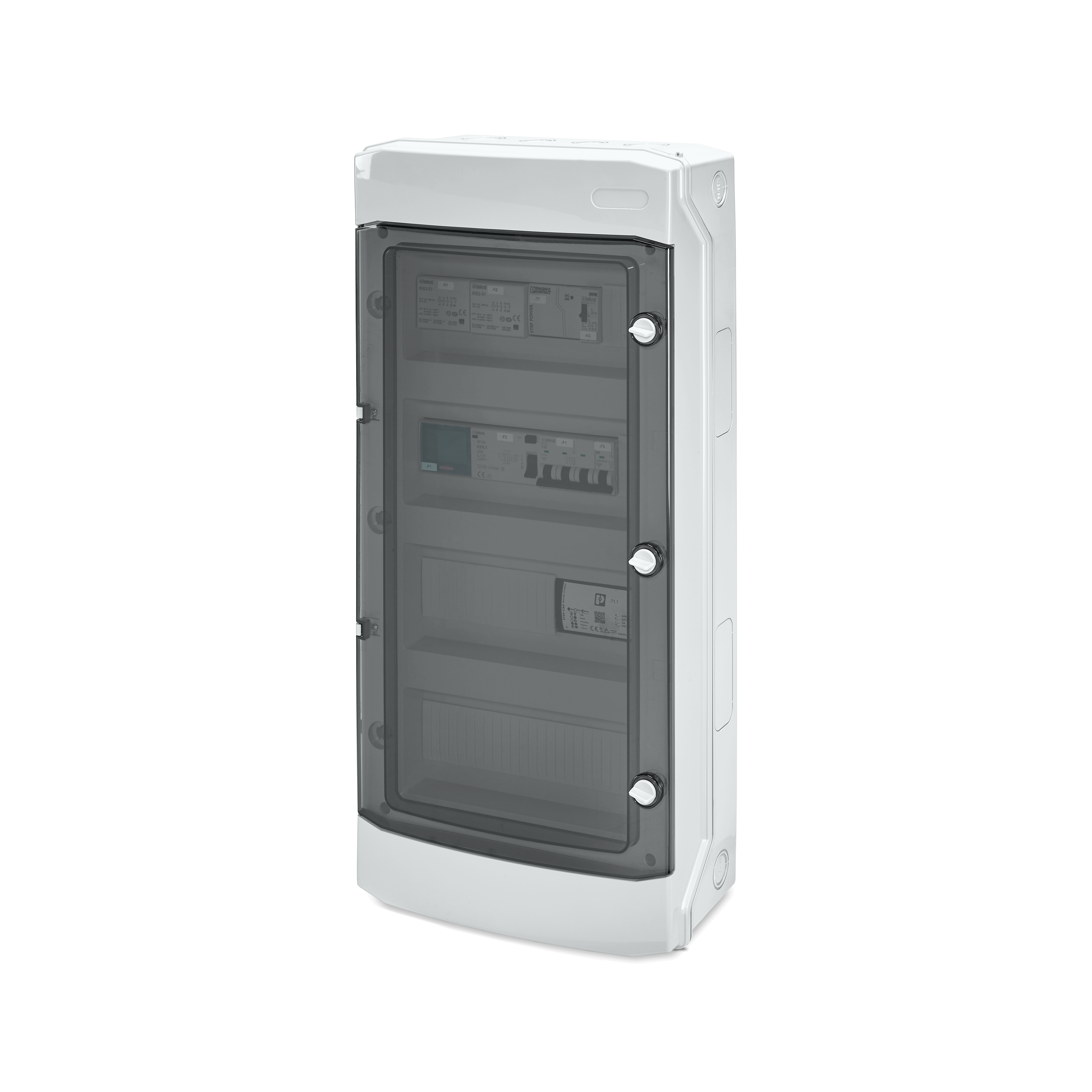

Mains switching box SOL-SC-FRO-SY/FRT/400V/63A

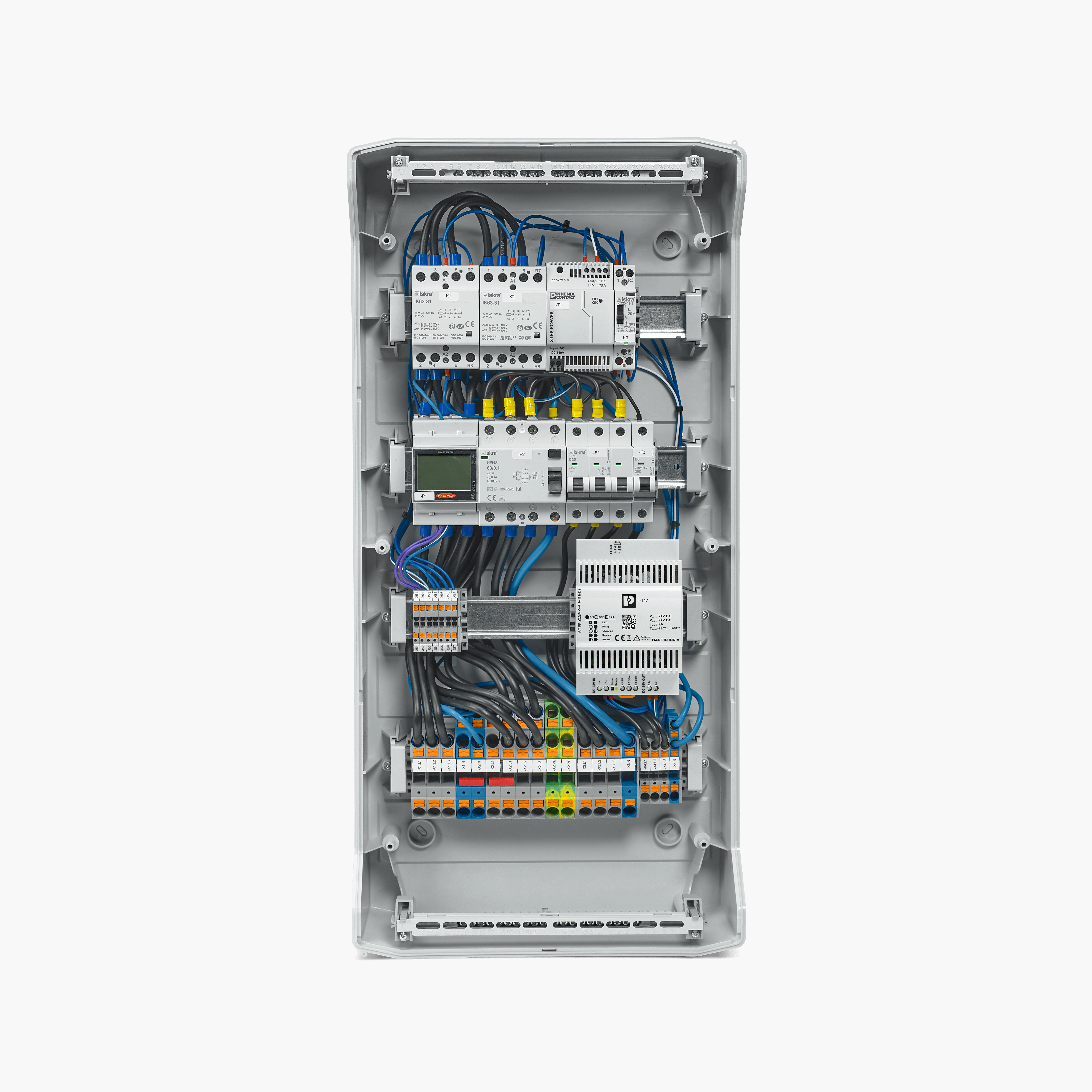

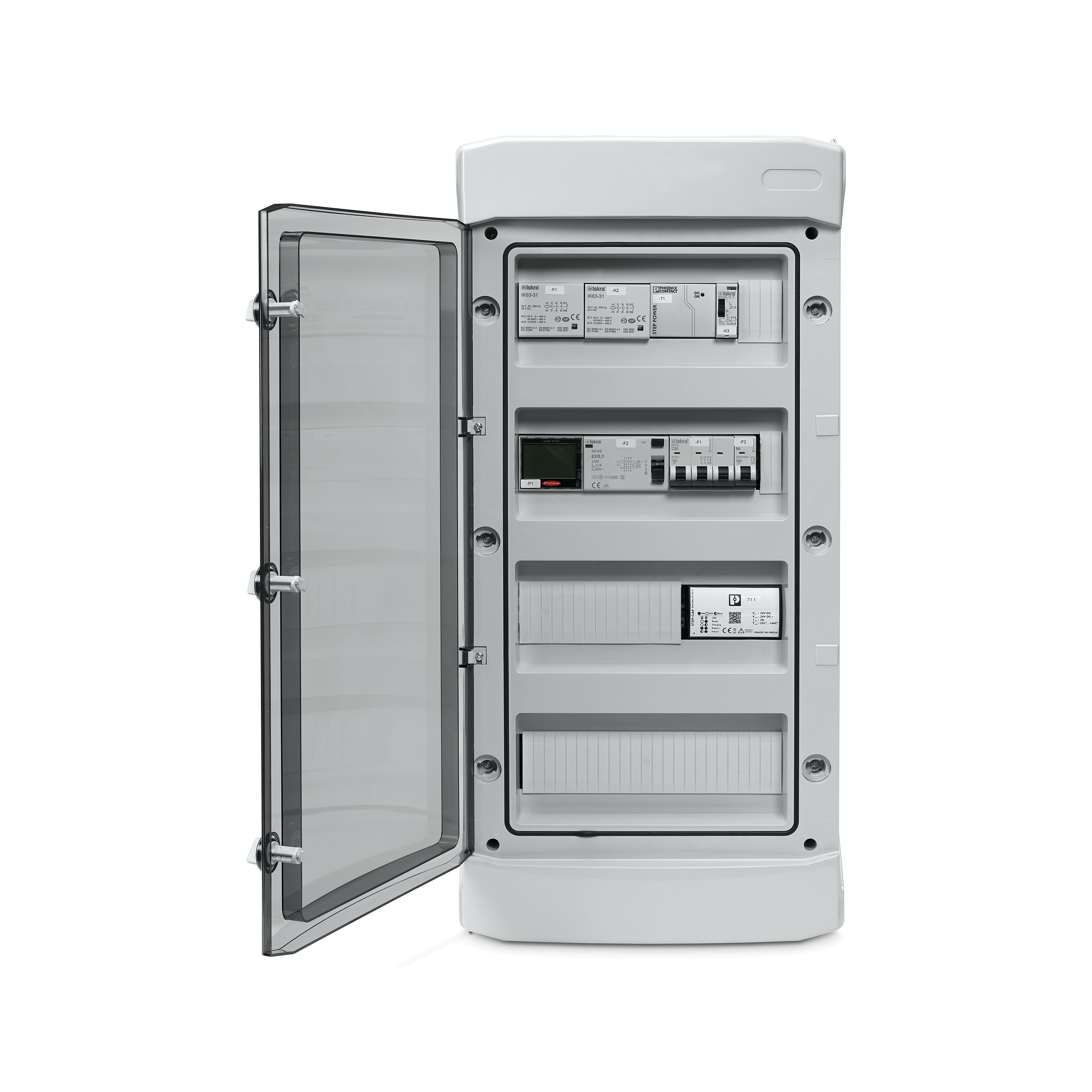

The SOL-SC-FRO-SY/FRT/400V/63A mains switchover box is used in PV systems to activate the emergency power function of the inverter. In the event of a power failure or a deviation in the grid parameters, the PV system is safely disconnected from the public grid. A backup power supply is then set up to supply the loads in the emergency power circuit. The box is intended exclusively for use in TN-S grids and is compatible with Fronius Symo GEN24 Plus inverters. In addition to switching and protection devices and a capacity module with a maintenance-free capacitor base, the box contains a Fronius Smart Meter for measurement, grid monitoring and communication with the inverter. An FRT capable disconnection is realized with the capacity module (FRT = Fault Ride Through). The cables are fed in using the cable glands supplied and the incoming and outgoing cables are routed internally to terminal strips.
Product advantages
- Fast installation and commissioning
- Maintenance-free and time-saving wiring thanks to push-in connection technology
- Flexible choice of conductor cross-section thanks to enclosed cable glands of different sizes with variable sealing range
- Standard-compliant switchgear combination thanks to the application of DIN EN 61439
Product features
- Only suitable for use in TN-S networks
- Compatible with Fronius Symo GEN24 Plus inverters (6.0 / 8.0 / 10.0)
- Fronius Smart Meter TS65A-3 is already integrated
- Connection: Push-in terminals
- Conductor cross-section:
- Feed, load and emergency power supply: max. 16 mm²
- Inverter connection: max. 6 mm²

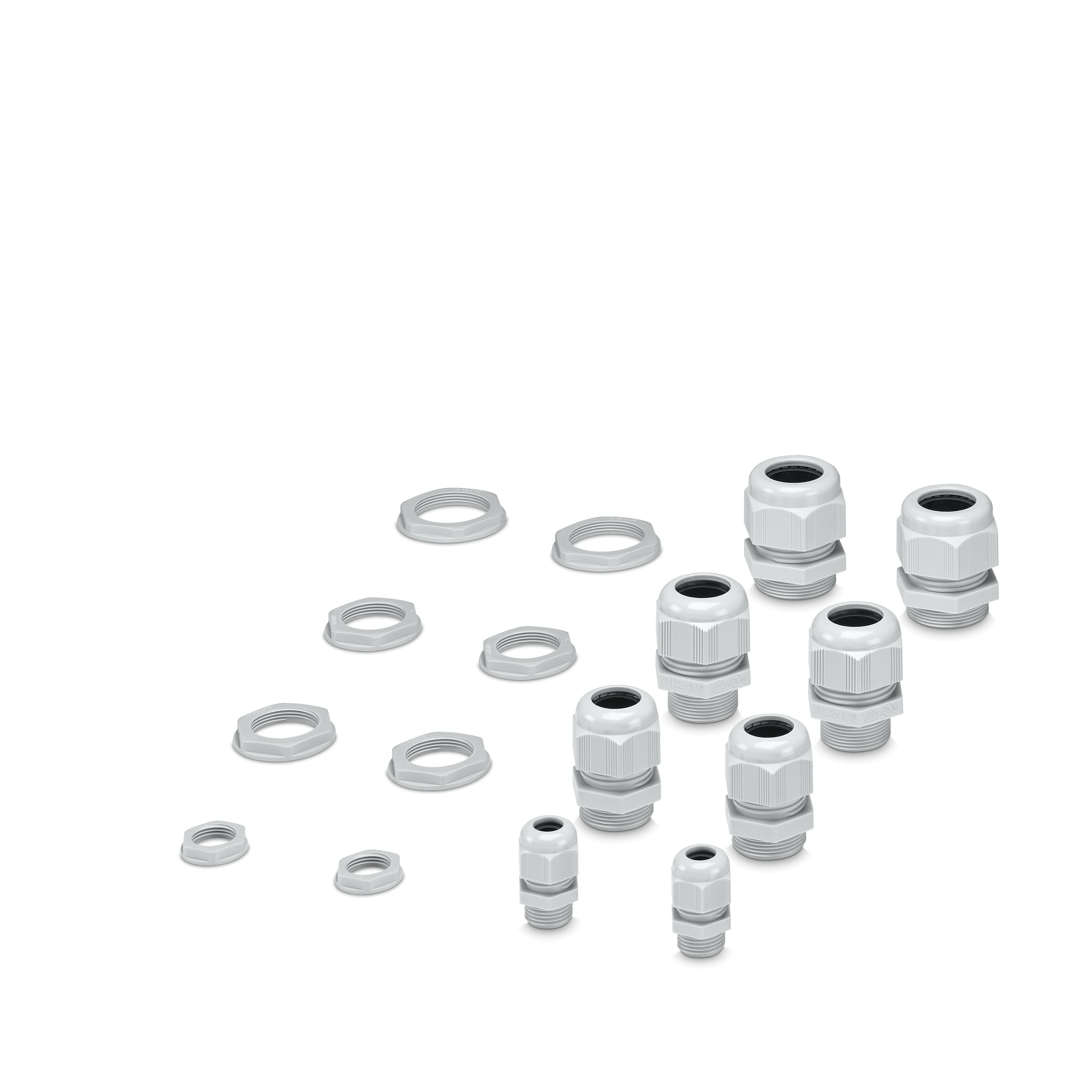

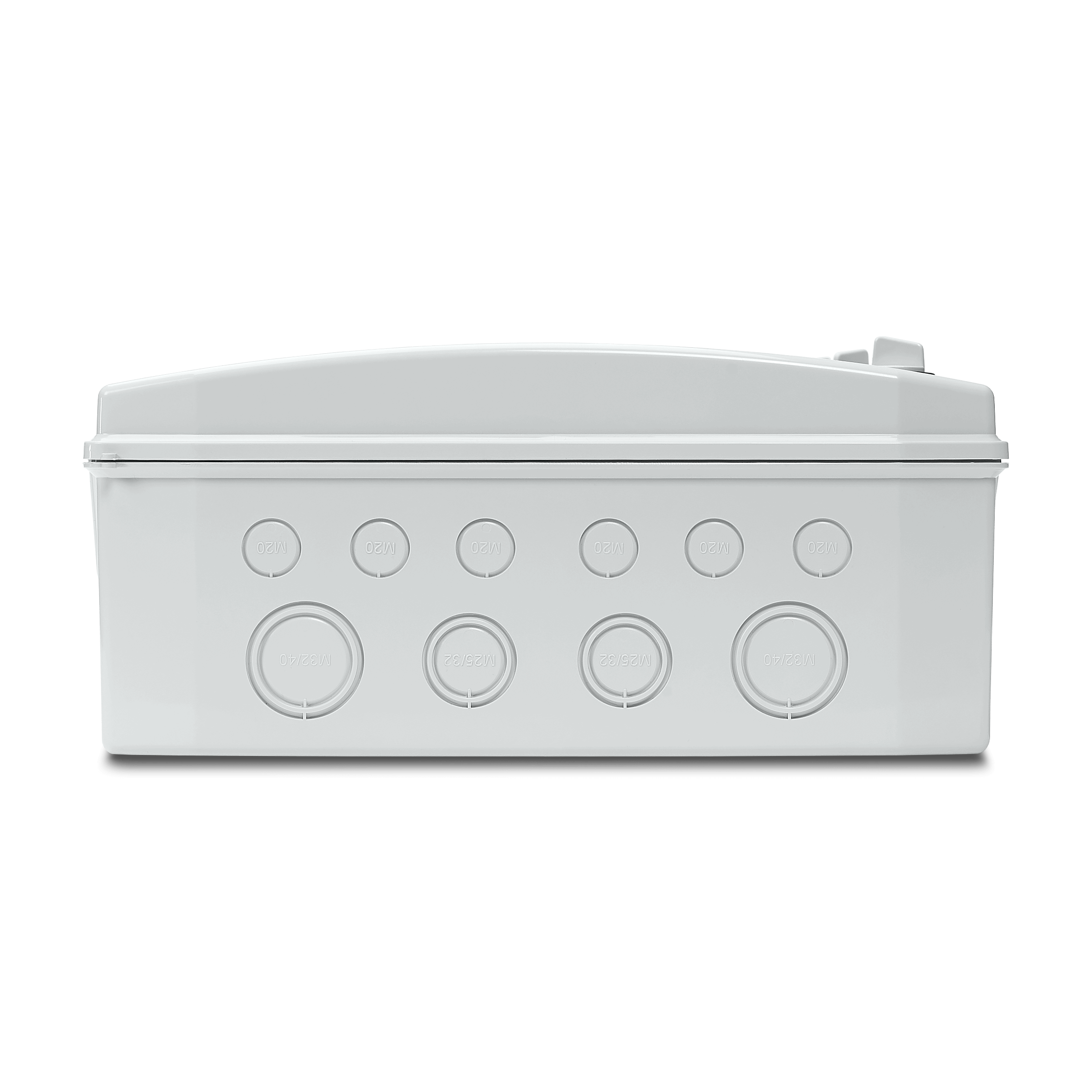

- Cable entry (cable gland enclosed)
- 2 x M32 (18 - 25 mm)
- 2 x M32 (15 - 21 mm)
- 2 x M40 (19 - 28 mm)
- 2 x M20 (6 - 12 mm)
- Dimensions (W x H x D): 31.9 x 66.4 x 14.4 cm
- Weight: about 12 kg
- Protection category: IP65
