GoodWe ET Plus 16A – GW10KN-ET

GoodWe ET Plus 16A Installation

The YouTube video has been blocked due to the cookie settings.

Type of manufacturer:	GW10KN-ET
Manufacturer Art. No.:	ETU0010-09-01P
Art. Nr.:	8252
Pieces per package unit:	1 per carton 6 per pallet 384 per container
Phases:	3
Inverter type:	Asymmetric inverters, Hybrid inverter
MPP-Tracker:	2
AC power:	10 kW
Warranty:	4 years
Communication:	RS485, WiFi
MPP voltage range:	200 - 850 Volt

Prices are only visible to business customers upon successful registration.

Sale

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 8252

Prices are only visible to business customers upon successful registration.

Sale

Unfortunately you are not authorised to place orders

To purchase the item you need a certification from the manufacturer.

The article is currently not available in your country.

Please contact your personal contact person to find out the price of the product. You can find your contact person's contact information in your customer account.

There was an error when determining the product availabilty

Product number: 8252

Recommended accessories
- GoodWe Lynx D – battery storage 5 kWh

  Art. Nr.: 12789

  GoodWe

  { "id": "34d7fedc2d5158db9675c9257b843efa", "item_brand": "", "item_name": "GoodWe Lynx D – battery storage 5 kWh", "item_id": "12789", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "34d7fedc2d5158db9675c9257b843efa" } }
- GoodWe Lynx Home F Plus - Battery module 3.3 kWh

  Art. Nr.: 12474

  GoodWe

  { "id": "8f5a2357e54d53dfb8d7dbe9f93b3c03", "item_brand": "", "item_name": "GoodWe Lynx Home F Plus - Battery module 3.3 kWh", "item_id": "12474", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8f5a2357e54d53dfb8d7dbe9f93b3c03" } }
- GoodWe Lynx Home F Plus – PCU

  Art. Nr.: 8765

  GoodWe

  { "id": "aa1e6485b19d57c587890906b323f870", "item_brand": "", "item_name": "GoodWe Lynx Home F Plus – PCU", "item_id": "8765", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "aa1e6485b19d57c587890906b323f870" } }
Tech tip

A firmware update can be performed through the GoodWe service by using the ticket system. The second way to perform a firmware update is via the included Bluetooth dongle. Please note that the Bluetooth dongle cannot be paired directly with the smartphone. The pairing must be done via the setting in the SolarGo app. Further instructions can be found in the download area.

GoodWe ET Plus 16A GW10KN-ET: Hybrid Inverter with emergency power supply

With the GoodWe GW10KN-ET, you can install single-family home systems with storage quickly and safely. The 16 A input current is sufficient for modern high-performance modules. The integrated switch-over mechanism for backup power continues to supply selected appliances in your customers’ homes even during a mains power cut. The inverter is capable of black start and recharges the battery using solar power even during emergency power operation.

You can integrate heat pumps or Wallboxes via the programmable dry contact (SG-Ready). You can conveniently control the GoodWe EV Charger via the SEMS portal.

Your benefits at a glance

Integrated switch-over mechanism for backup power, 10 kW emergency power output
Capable of black start
AC charging possible, e.g. expandable with the GoodWe SDT G2 series
Integrated Type 2 DC overvoltage protection
Direct connection of a remote control receiver
Cascading of multiple ET units ≤ 10 kW using the SEC1000S Hybrid Combiner Box (Item 4407)
Push-in terminals for quick installation

Technical specifications GW10KN-ET

Mains connection: 3-phase
AC power: 10.0 kVA, emergency power output: 10.0 kW
MPP trackers: 2, 1 string each
Max. input current: 16 A, max. short-circuit current: 21.2 A
Battery: High-voltage (GoodWe, BYD, LG)
Communication: RS485, Wi-Fi (LAN optional)
Includes: 3-phase GM3000 smart meter, Wi-Fi module
Dimensions: 516 × 415 × 180 mm (H × W × D)
Protection rating: IP66, weight: 24.0 kg

Good to know

You can now only purchase a warranty extension directly via the GoodWe SEMS Portal. We also recommend the GoodWe Plus training course. To access this, you’ll need an installer account on the SEMS Portal.

Order the GoodWe GW10KN-ET from Memodo now.

Downloads

Videos

GoodWe ET Plus 16A Installation

The YouTube video has been blocked due to the cookie settings.

Matching accessories

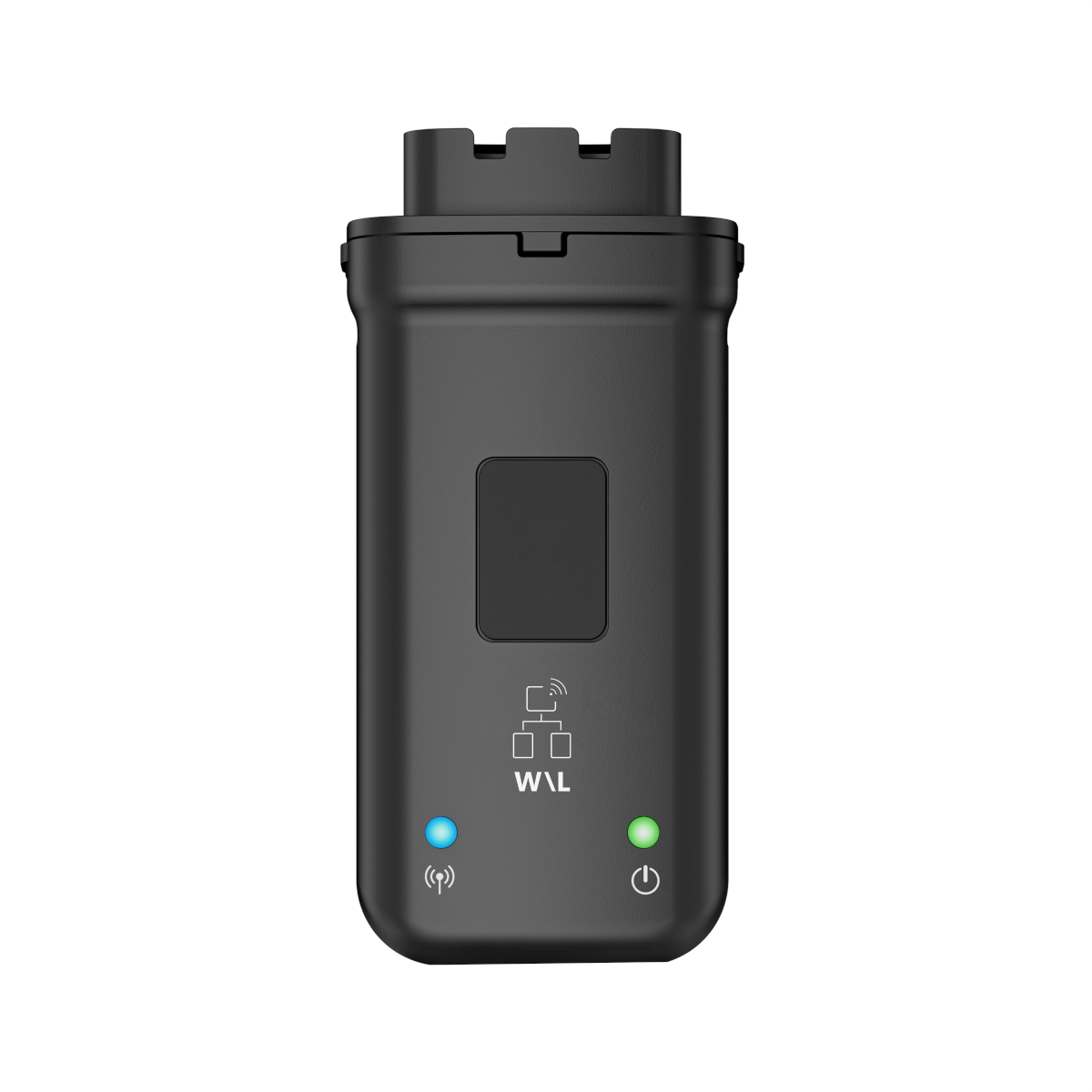

GoodWe WiFi+LAN Kit
