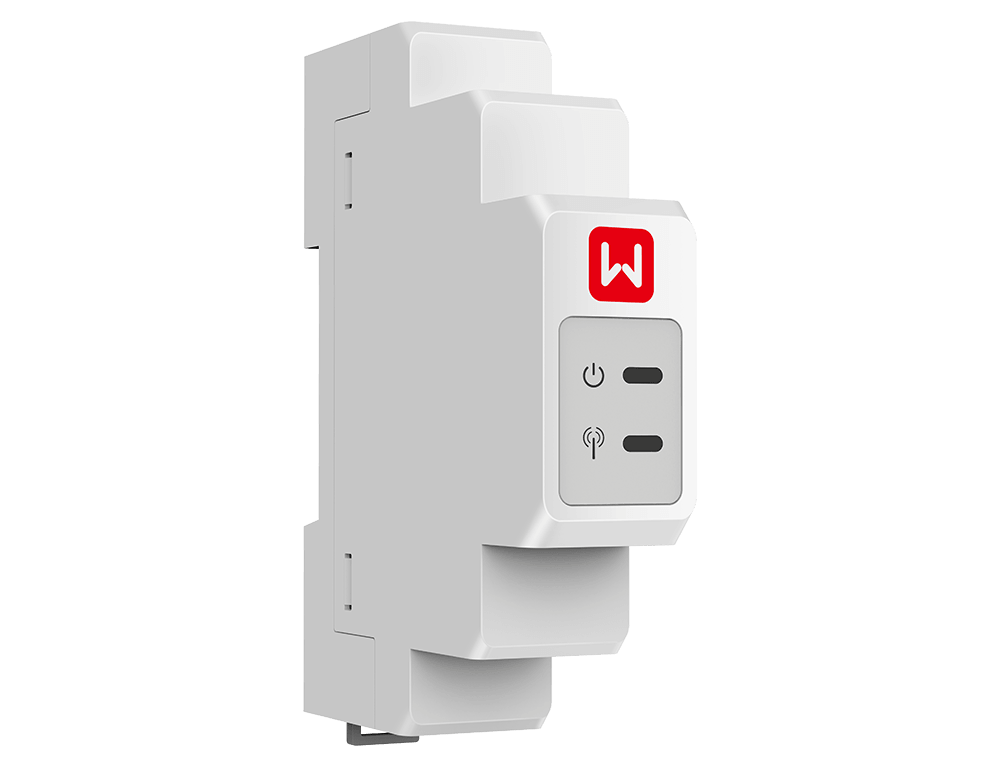

GoodWe GMK110
| Type of manufacturer: | GMK110 |
|---|---|
| Manufacturer Art. No.: | GMU1000-01-00P |
| Art. Nr.: | 15938 |
| Pieces per package unit: |
|
| Accessory type: | Data-logger, Sensors |
Prices are only visible to business customers upon successful registration.
- New
Product number:
15938
Description
GoodWe GMK110 Smart meter
The GoodWe GMK110 Smart Meter is an intelligent single-phase electricity meter designed for the precise measurement of energy flows in photovoltaic systems. It reliably records local electricity consumption and grid load, and enables dynamic power control of hybrid and on-grid Inverters. With an accuracy class of 1.0 and an integrated 120A current transformer (CT), the GMK110 is ideally suited to applications such as Self-consumption optimisation and zero feed-in. Thanks to RS485 communication and rapid data updates, the Smart meter ensures precise control and maximum efficiency of modern PV systems.
Product benefits:
- Precise energy monitoring thanks to high measurement accuracy
- Optimises self-consumption and Grid feed-in in PV systems
- Seamless integration with GoodWe hybrid and grid-connected inverters
- Rapid data updates for dynamic power control
- Cost-effective solution for single-phase residential installations
- Simple installation on a DIN rail in the distribution box
Product features:
- Single-phase Smart meter for PV systems
- Supported grid type: 1P2W
- Accuracy class 1.0 for precise energy measurement
- Includes 1 current transformer (120A/40mA) for measuring high currents
- Supports feed-in limitation (export power limit)
- Communication via RS485
- Mounting on DIN top-hat rail
- Operating voltage: 85–288 Vac
- Protection class: IP20
- Power consumption ≤ 5 W
