GoodWe & GoodWe ET 100 (incl. DC-SPD I+II, AFCI, Wifi/Lan)
| Type of manufacturer: | GW100K-ET-G10 |
|---|---|
| Manufacturer Art. No.: | NBC100K-14-00P |
| Art. Nr.: | 14690 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Hybrid inverter, Project inverter |
| MPP-Tracker: | 8 |
| AC power: | 100 kW |
| Warranty: | 5 years |
| Communication: | LAN&WIFI&BT&RS485 |
| MPP voltage range: | 300-800 Volt |
Prices are only visible to business customers upon successful registration.
Product number:
14690
-
-
{ "id": "4880fd0f22af5319916f394c42fb1197", "item_brand": "", "item_name": "GoodWe & GoodWe SEC3000C (incl. 4G)", "item_id": "14377", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "4880fd0f22af5319916f394c42fb1197" } } -
{ "id": "69f0a1412b55569699fb26f6bfdee5ea", "item_brand": "", "item_name": "GoodWe BAT112", "item_id": "13739", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "69f0a1412b55569699fb26f6bfdee5ea" } } -
{ "id": "7d20fc6607a95d90b3a6e6545f6ca3dc", "item_brand": "", "item_name": "GoodWe & GoodWe STS Box - GW125K-STS-G10", "item_id": "14804", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7d20fc6607a95d90b3a6e6545f6ca3dc" } } -
{ "id": "7f96f27672875de09bf991b653b26066", "item_brand": "", "item_name": "Current transducer 200/5 A, not calibrated, folding", "item_id": "4122", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7f96f27672875de09bf991b653b26066" } }
-
Description

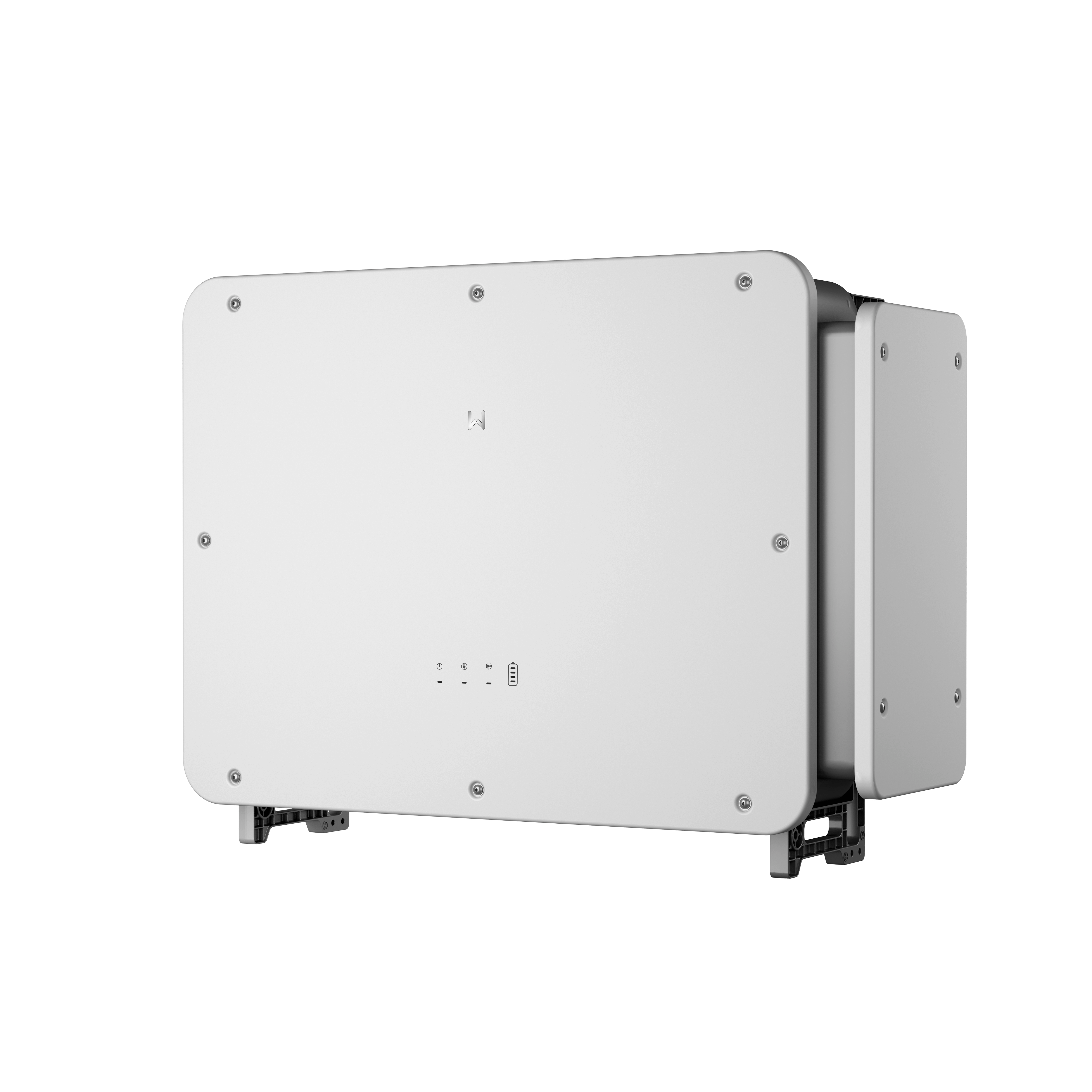

GoodWe ET 100 – GW100K-ET-G10 Hybrid
The GoodWe GW100K-ET-G10 is a high-performance hybrid inverter designed for large-scale commercial and industrial energy storage applications. It is suitable for both grid-connected and off-grid systems and, thanks to 8 MPPT trackers, high DC oversizing and the ability to be connected in parallel, offers maximum flexibility in system design.
In combination with the GoodWe STS Box, the ET100 enables UPS-like switching between the grid and backup power supply. Intelligent operating modes such as Self-consumption, peak shaving and time-of-use support economically optimised energy utilisation. Together with the GoodWe BAT112 battery system, this creates a scalable, high-performance energy storage solution for C&I applications.
Purchasing a GoodWe warranty extension is now only possible directly via the GoodWe SEMS portal.
Please check the relevant approvals for Austria in each case!
We recommend taking part in the GoodWe Plus training course. To do so, you must first create an installer account on the GoodWe SEMS portal.
Wi-Fi/LAN Kit 2.0 and Smart meter GM330 are included in the scope of delivery. The appropriate CTs with a 5A secondary current must be purchased separately.
Product benefits
- Parallel connection of up to 15 units in grid-connected operation.
- UPS-like switching via the STS Box.
- Up to 200% PV oversizing.
- 8 MPPTs with 42 A input current.
- Two battery inputs for large storage capacities.
- Supports up to 4 batteries in series per battery input (only with BAT112).
- Parallel connection of up to 15 Inverters in on-grid mode with SEC3000C.
Product features GW100K-ET-G10:
- Rated AC power: 100 kW
- MPP trackers: 8
- String connections per MPPT: 2
- Max. input current per MPPT: 42 A
- Max. PV input power: 200 kW
- Battery voltage range: 300 to 800 V
- Number of battery inputs: 2
- Max. charging and discharging power: 110 kW
- Protection class: IP66
- Corrosion protection class: C4
- Dimensions (W x H x D): 995 x 758 x 358 mm
- Weight: approx. 97 kg
- Warranty: 5 years
-
