GoodWe & GoodWe ET 80 (incl. DC-SPD I+II, AFCI, Wifi/Lan)
| Type of manufacturer: | GW80K-ET-G10 |
|---|---|
| Manufacturer Art. No.: | NBC0080-06-01P |
| Art. Nr.: | 16505 |
| Pieces per package unit: |
|
| Phases: | 3 |
| Inverter type: | Hybrid inverter, Project inverter |
| MPP-Tracker: | 8 |
| AC power: | 80 kW |
| Warranty: | 5 years |
| Communication: | LAN&WIFI&BT&RS485 |
| MPP voltage range: | 300-800 Volt |
Prices are only visible to business customers upon successful registration.
- New
Product number:
16505
-
-
{ "id": "4880fd0f22af5319916f394c42fb1197", "item_brand": "", "item_name": "GoodWe & GoodWe SEC3000C (incl. 4G)", "item_id": "14377", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "4880fd0f22af5319916f394c42fb1197" } } -
{ "id": "69f0a1412b55569699fb26f6bfdee5ea", "item_brand": "", "item_name": "GoodWe BAT112", "item_id": "13739", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "69f0a1412b55569699fb26f6bfdee5ea" } } -
{ "id": "7d20fc6607a95d90b3a6e6545f6ca3dc", "item_brand": "", "item_name": "GoodWe & GoodWe STS Box - GW125K-STS-G10", "item_id": "14804", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7d20fc6607a95d90b3a6e6545f6ca3dc" } } -
{ "id": "7f96f27672875de09bf991b653b26066", "item_brand": "", "item_name": "Current transducer 200/5 A, not calibrated, folding", "item_id": "4122", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7f96f27672875de09bf991b653b26066" } }
-
Description

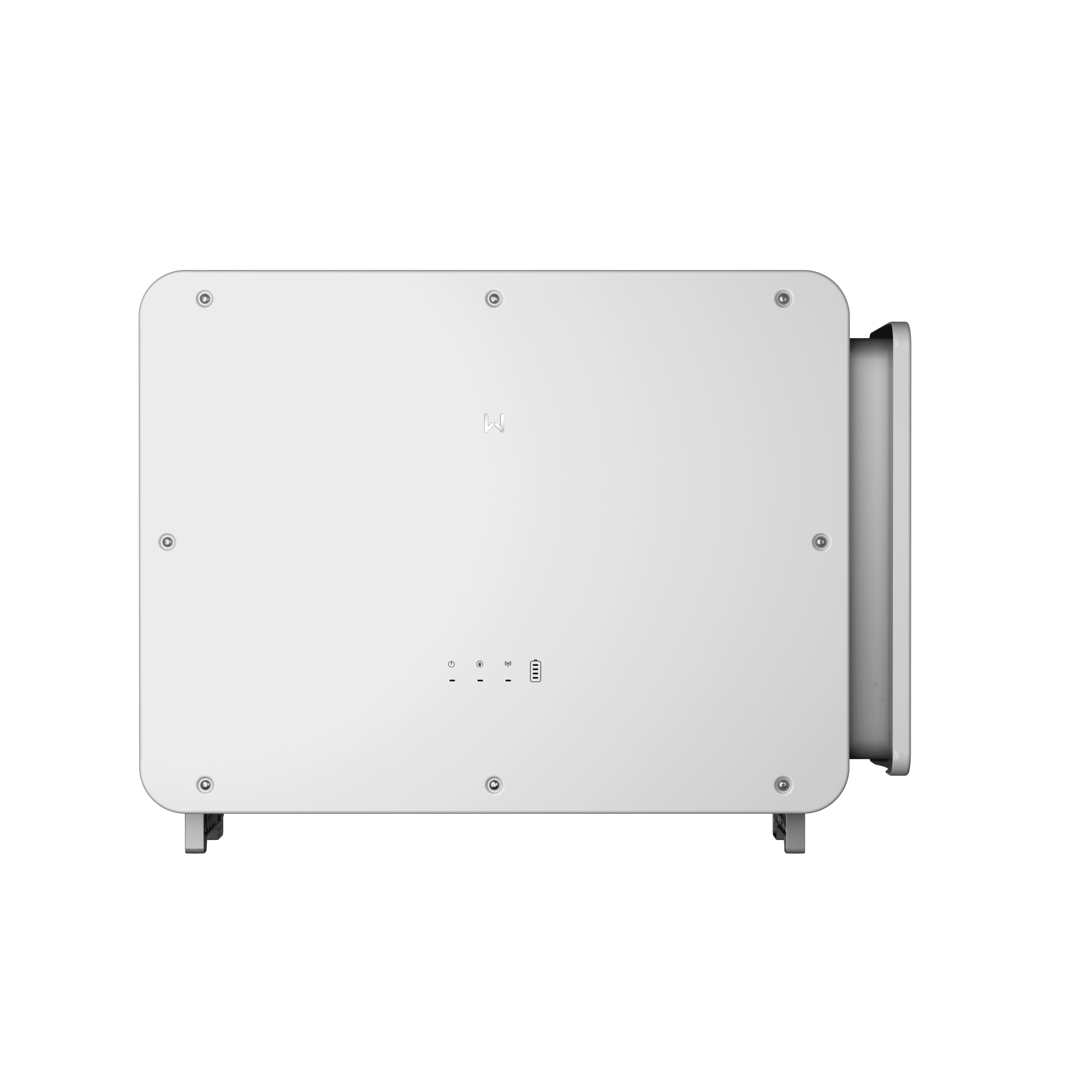

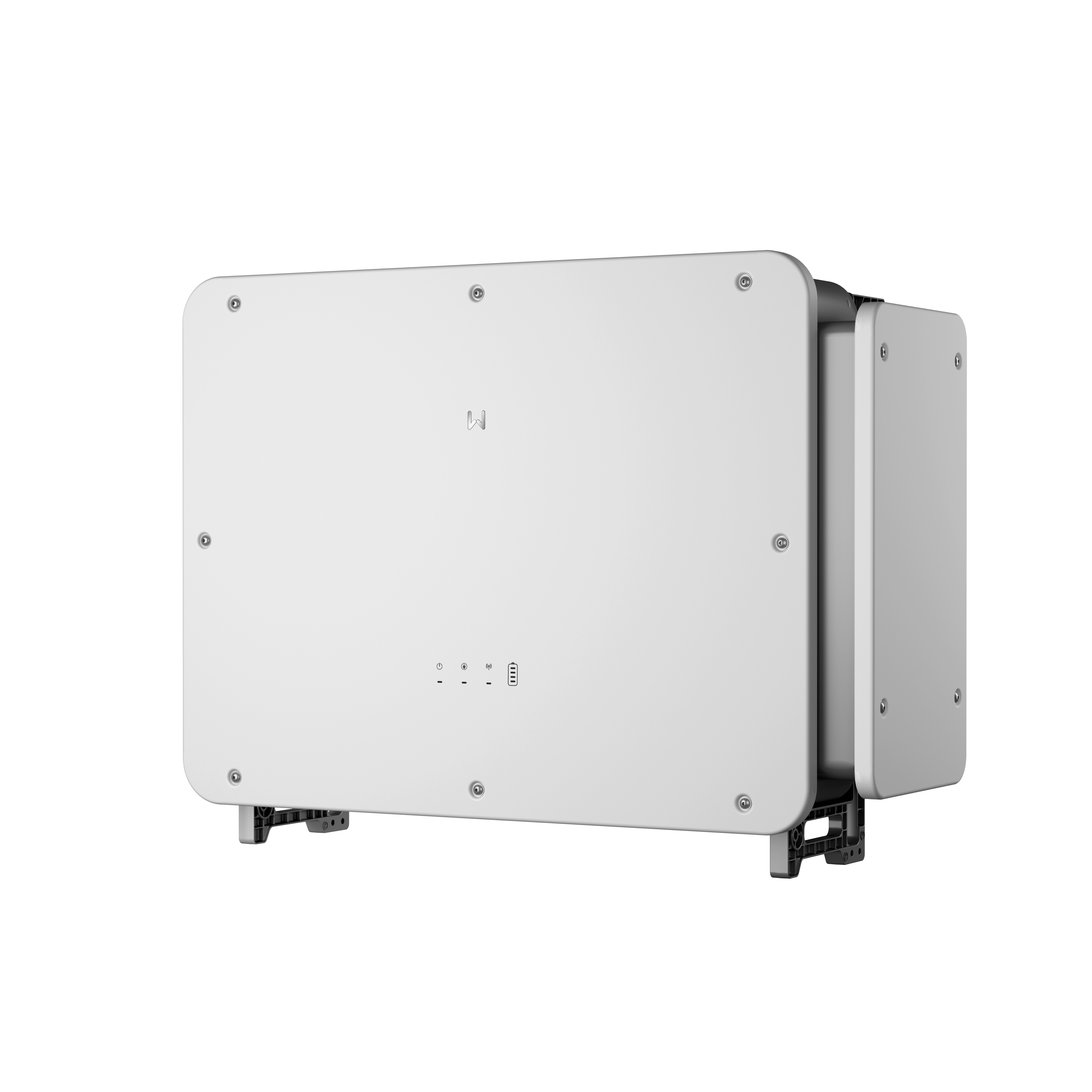

GoodWe ET 80 – GW80K-ET-G10 Hybrid
The GoodWe GW80K-ET-G10 is a high-performance hybrid inverter designed for large-scale commercial and industrial storage applications. It is suitable for both grid-connected and off-grid systems and, thanks to 8 MPPTs, high DC oversizing and the ability to operate in parallel, offers maximum flexibility in system planning.
In combination with the GoodWe STS Box, the ET80 enables UPS-like switching between the grid and backup power supply. Intelligent operating modes such as Self-consumption, peak shaving and time-of-use support economically optimised energy utilisation. Together with the GoodWe BAT112 battery system, this creates a scalable, high-performance storage solution for C&I applications.
A GoodWe warranty extension can now only be purchased directly via the GoodWe SEMS portal.
Please check the approval status for Austria in each case!
We recommend taking part in the GoodWe Plus training course. To do so, you must first create an installer account on the GoodWe SEMS portal.
Wi-Fi/LAN Kit 2.0 and GM330 smart meter included in the scope of delivery. The appropriate CTs with a 5A secondary current must be purchased separately.
Product benefits
- Parallel connection of up to 15 units in grid-connected operation.
- UPS-like switching via the STS Box.
- Up to 200% PV oversizing.
- 8 MPPTs with 42 A input current.
- Two battery inputs for large storage capacities.
- Supports up to 4 batteries in series per battery input (only with BAT112).
- Parallel connection of up to 15 Inverters in on-grid mode with the SEC3000C.
Product features GW80K-ET-G10:
- Rated AC power: 80 kW
- MPP trackers: 8
- String connections per MPPT: 2
- Max. input current per MPPT: 42 A
- Max. PV input power: 200 kW
- Battery voltage range: 300 to 800 V
- Number of battery inputs: 2
- Max. charging and discharging power: 88 kW
- Protection class: IP66
- Corrosion protection class: C4
- Dimensions (W x H x D): 995 x 758 x 358 mm
- Weight: approx. 97 kg
- Warranty: 5 years
-
