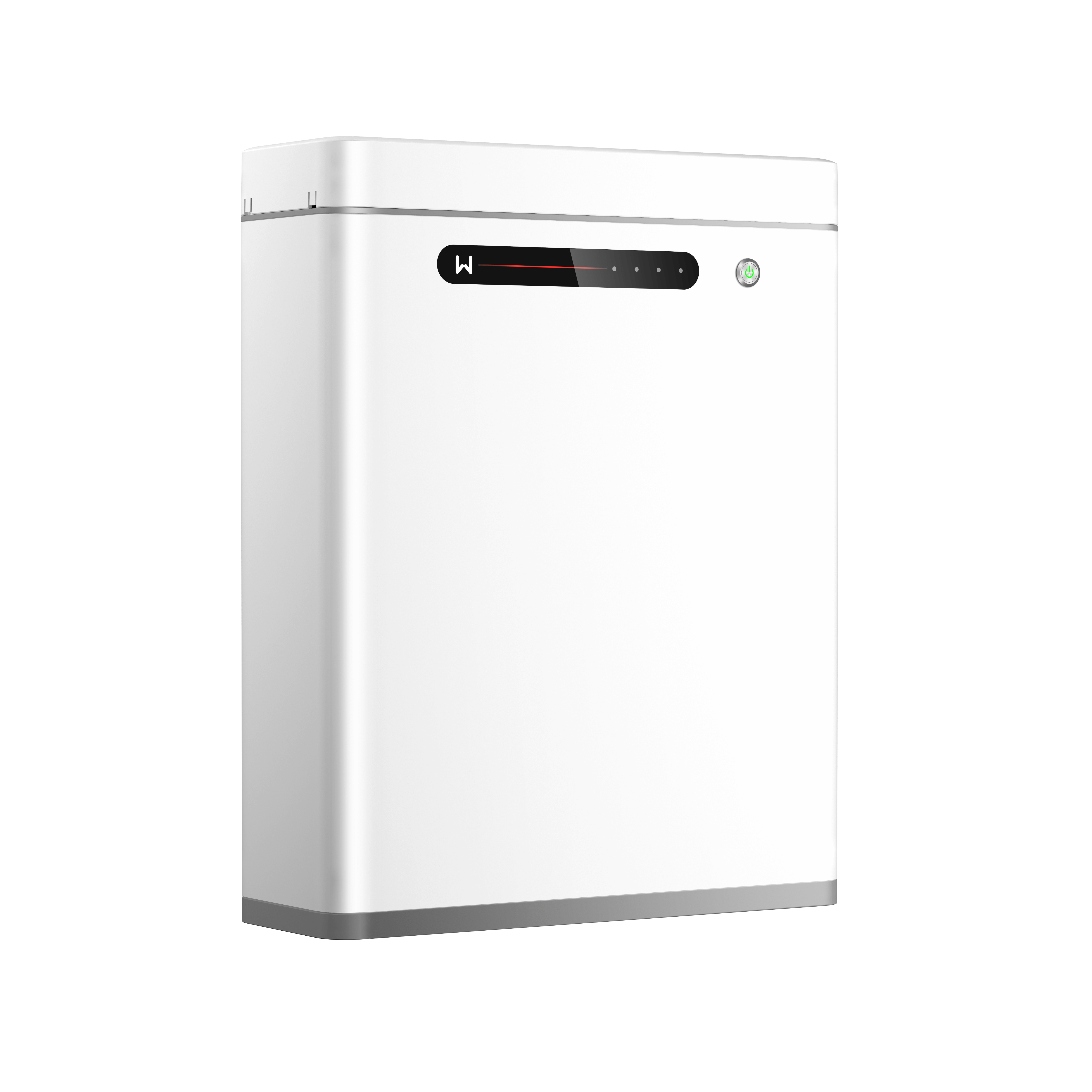

GoodWe Lynx U G3 – battery storage 5 kWh
| Type of manufacturer: | LX U5.0-30 |
|---|---|
| Manufacturer Art. No.: | BAD0050-04-00P |
| Art. Nr.: | 13047 |
| Pieces per package unit: |
|
| Net capacity: | 5 kWh |
| Battery type: | 48 volt lithium-iron-phosphate |
| Warranty: | 10 Jahre |
| Solar battery type: | 1-phase, 48 V battery |
Prices are only visible to business customers upon successful registration.
Product number:
13047
-
-
{ "id": "560a7fa102dd535daa090c52ac9b511b", "item_brand": "", "item_name": "Bat cable 48V network parallel M8-M8", "item_id": "5414", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "560a7fa102dd535daa090c52ac9b511b" } } -
{ "id": "7e3361dac6565e9d8ff706d964120696", "item_brand": "", "item_name": "GoodWe & GoodWe ES G2 - GW6000-ES-20", "item_id": "8780", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "7e3361dac6565e9d8ff706d964120696" } } -
{ "id": "c07d4439336756adbb6aa39d951da458", "item_brand": "", "item_name": "Battery cable 48V mains parallel not connected", "item_id": "7045", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "c07d4439336756adbb6aa39d951da458" } }
-
Description

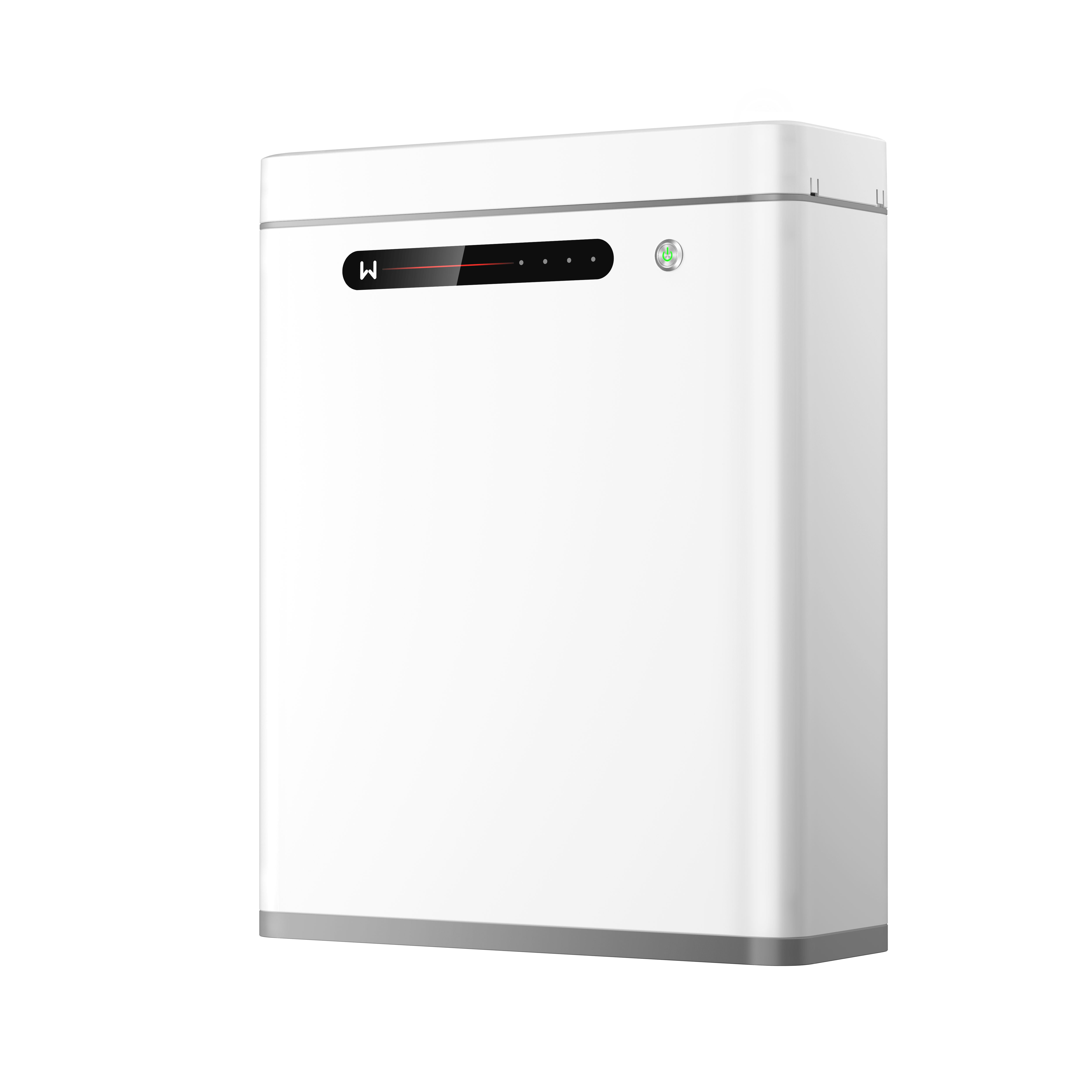

Lynx U G3 low-voltage battery LX U5.0-30 – 5 kWh from GoodWe
The third generation of the GoodWe Lynx U low-voltage battery has a C-rate of 0.9C when charging and 1C when discharging. The battery has an IP65 protection rating, making it suitable for indoor and outdoor installation. Up to 30 battery units can be connected in parallel. The usable storage capacity can be expanded from 5 to up to 150 kWh. Each battery has an integrated heating and fire extinguishing function.
Product advantages
- Includes mounting system (for wall or floor mounting)
- Module expansion – up to 30 LX U5.0-30 modules can be connected in parallel (150 kWh)
- Easy installation thanks to plug-and-play communication between the individual battery modules
- Suitable for indoor and outdoor installation
- 10-year performance guarantee
- Includes multifunction button (e.g., for displaying error codes)
- Emergency power capable (performance depends on inverter type)
- Integrated heating and fire extinguishing function
Product features Lynx U G3 - LX U5.0-30
- Cell type: LiFePO4
- Usable battery capacity: 5 kWh
- Maximum continuous charging/discharging power: 4.95 kW
- Operating voltage range: 43.2 – 58.24 Vdc
- Max. charging/discharging current: 90 A/100 A
- Communication: CAN
- Temperature range: Discharge: -20°C - 55 °C
- Temperature range: Charge: 0°C - 55°C
- Dimensions: 580 x 460 x 160 mm (H x W x D)
- Weight: 50 kg
- Protection category: IP 65
- Product warranty: 5 years
Scope of delivery
- 1x Battery module LX U5.0-30
- 1x Mounting system (for wall or floor mounting)
Compatible with
- GoodWe ES series, EM series and SBP series
-
