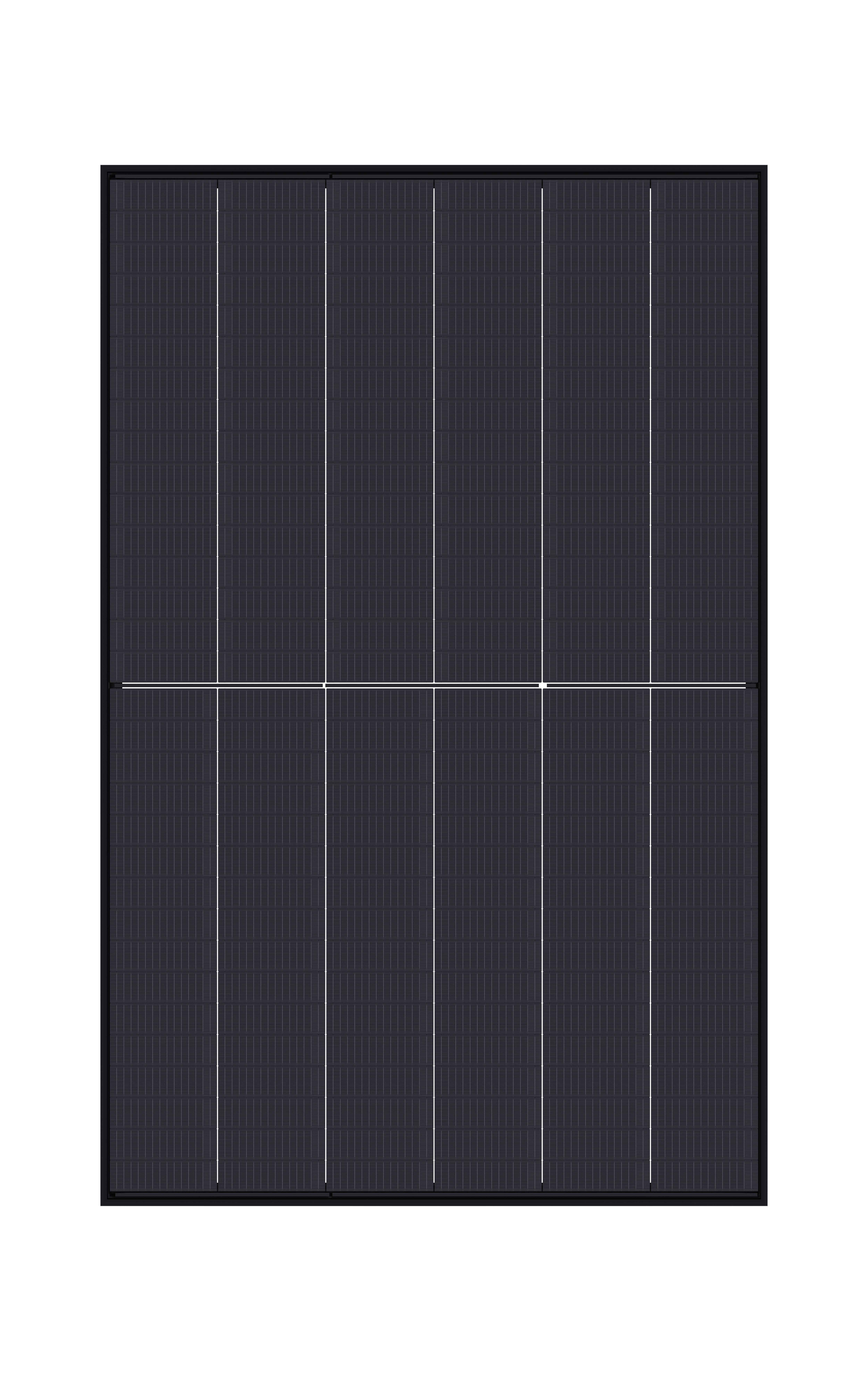

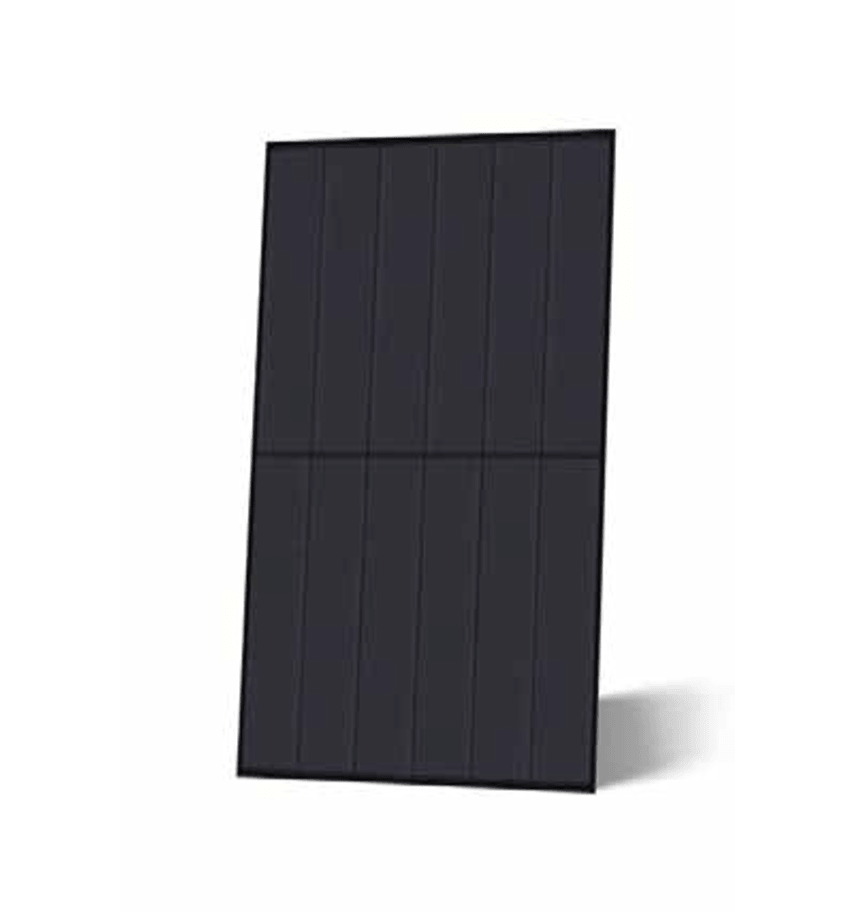

JinkoSolar JKM470N-48QL6-DB
Image may differ from the product.
| Manufacturer Art. No.: | JKM470N-48QL6-DB |
|---|---|
| Art. Nr.: | 14683 |
| Pieces per package unit: |
|
| Power: | 470 Watt |
| Efficiency: | 23.52 % |
| Construction type: | Double-Glass |
| Warranty: | 25/30 years |
| Dimensions: | 1762 × 1134 × 30 mm |
| Backsheet: | Transparent |
| Frame color: | Black |
| Technology: | TOPCon |
| Connector: | MC4 |
| Snow load: | 6000 pa |
| Wind load: | 4000 pa |
| Hail resistance: | HW3 |
| Solar panel type: | Full black modules, Glass-glass solar panels, TOPCon modules, Transparent modules |
Prices are only visible to business customers upon successful registration.
- New
Available from 22.06.2026
Product number:
14683
-
-
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black- Art. Nr.: 5752
- Helukabel
Available from stock{ "id": "e766b11a31cc5290a41b1e4ee29da4cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black", "item_id": "5752", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e766b11a31cc5290a41b1e4ee29da4cb" } } -
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m red- Art. Nr.: 5753
- Helukabel
Available from stock{ "id": "26b5b256d5d05ee1b34a261745ed4e81", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m red", "item_id": "5753", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "26b5b256d5d05ee1b34a261745ed4e81" } } -
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 m² 500m blue- Art. Nr.: 5754
- Helukabel
Available from stock{ "id": "8aa3e56907415746bb6c683f70fbd8cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 m² 500m blue", "item_id": "5754", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8aa3e56907415746bb6c683f70fbd8cb" } } -
Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 100m black- Art. Nr.: 5734
- Helukabel
Available from stock{ "id": "02eb7ea1d0a956a5b4c52598abf1754f", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 100m black", "item_id": "5734", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "02eb7ea1d0a956a5b4c52598abf1754f" } }
-
Description
Jinko Tiger Neo Double-Glass 470 W
JinkoSolar is a Chinese company founded in Shanghai in 2006. The Full Black variant delivers a high efficiency of up to 23.52% and high resistance to extreme conditions; with an output of 470 W, the module is ideally suited to diffuse sunlight. Furthermore, the new Tiger Neo III series boasts high resistance to salt and ammonia, making it perfect for rooftop installation in areas with extreme weather conditions. With a lower thermal conductivity coefficient of -0.26%/°C and improved low-light performance, the third generation stands out from the crowd.
Product benefits
- 192 monocrystalline N-type cells
- 0/+3% positive power tolerance
- Anti-PID
- Reduced hot-spot loss
- 25-year product warranty
- 30-year linear performance warranty
Product features JinkoSolar JKM470N-48QL6-DB
- Power: 470 watts
- 1500 V IEC certified
- 2.0 + 2.0 mm glass
- 6000 Pa snow load
- 4000 Pa wind load
- Black module frame
- Dimensions: 1762 × 1134 × 30 mm (H x W x D)
- Weight: 24.4 kg
- Cable length: 1.40 m
- Connector type: MC4
- Protection class: IP68
- Power temperature coefficient -0.26% /°C
Module manufacturer JinkoSolar
The current global market leader, JinkoSolar, has been proving itself amongst the major players in the solar industry for many years and has already broken several efficiency records. JinkoSolar attaches great importance to a sustainable value chain.
-
