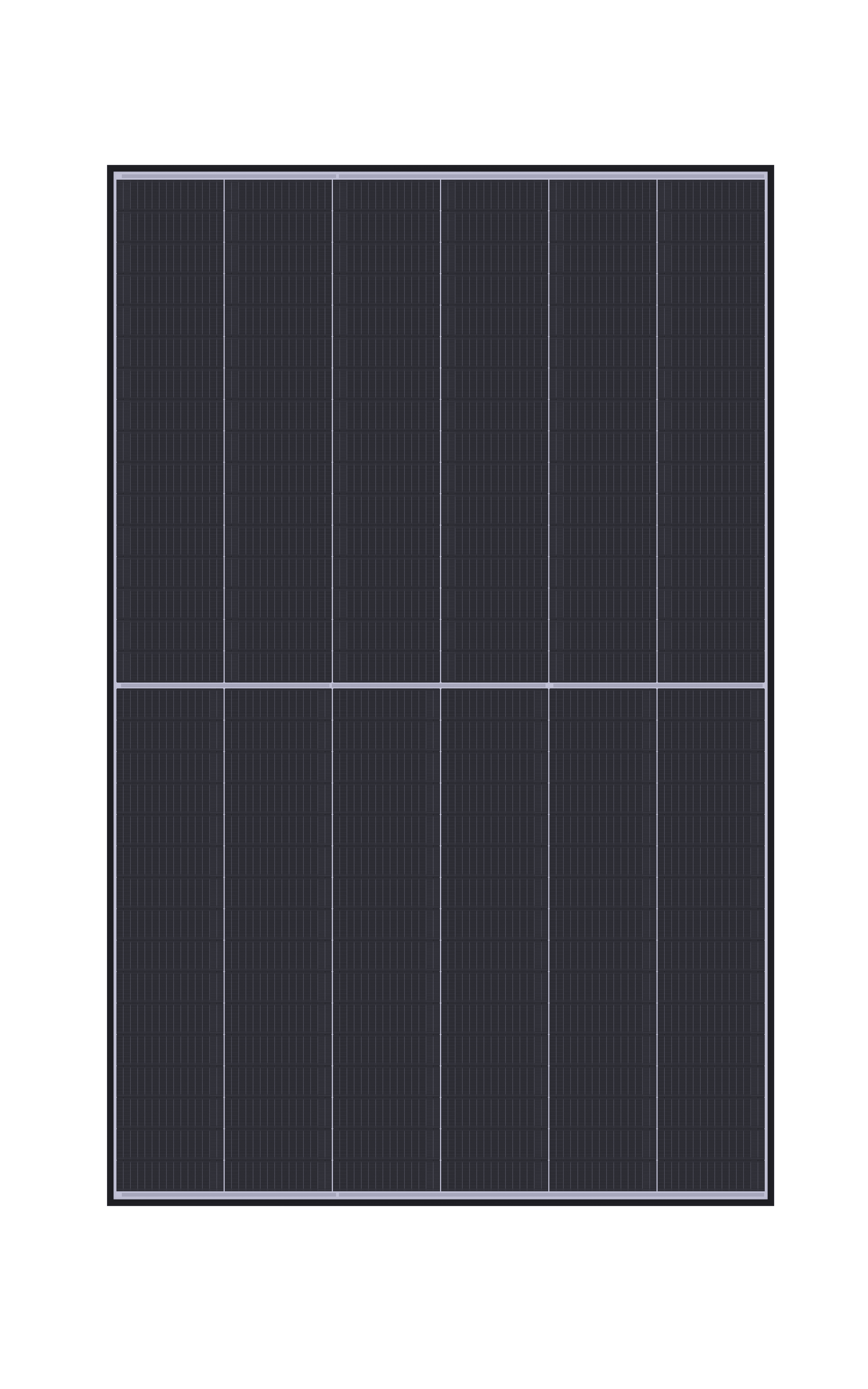

JinkoSolar JKM480N-48QL6-DV
| Manufacturer Art. No.: | JKM480N-48QL6-DV |
|---|---|
| Art. Nr.: | 15014 |
| Pieces per package unit: |
|
| Power: | 480 Watt |
| Efficiency: | 24.02 % |
| Construction type: | Double-Glass |
| Warranty: | 15/30 years |
| Dimensions: | 1762 × 1134 × 30 mm |
| Backsheet: | White |
| Frame color: | Silver |
| Technology: | TOPCon |
| Connector: | MC4 |
| Snow load: | 6000 pa |
| Wind load: | 4000 pa |
| Solar panel type: | Glass-glass solar panels, TOPCon modules |
- New
-
-
{ "id": "e766b11a31cc5290a41b1e4ee29da4cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m black", "item_id": "5752", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "e766b11a31cc5290a41b1e4ee29da4cb" } } -
{ "id": "26b5b256d5d05ee1b34a261745ed4e81", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 500m red", "item_id": "5753", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "26b5b256d5d05ee1b34a261745ed4e81" } } -
{ "id": "8aa3e56907415746bb6c683f70fbd8cb", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 m² 500m blue", "item_id": "5754", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "8aa3e56907415746bb6c683f70fbd8cb" } } -
{ "id": "02eb7ea1d0a956a5b4c52598abf1754f", "item_brand": "", "item_name": "Solar cable HELUKABEL Solarflex H1Z2Z2-K 6.0 mm² 100m black", "item_id": "5734", "currency": "EUR", "item_variant": "", "price": "on_request", "item_list_id": "product", "item_list_name": "product", "extra": { "minPurchase": "1", "shopware_id": "02eb7ea1d0a956a5b4c52598abf1754f" } }
-
Jinko Tiger Neo double-glass module, 480 W
JinkoSolar is a Chinese company founded in Shanghai in 2006. In addition to its high efficiency of up to 24.02% and high resistance to extreme conditions, the 480 W module is ideally suited to diffuse sunlight. Furthermore, the new Tiger Neo III series boasts high resistance to salt and ammonia, making it perfect for rooftop installation in areas with extreme weather conditions. With a lower thermal conductivity coefficient of -0.26% /°C and improved low-light performance, the third generation stands out from the crowd.
Product benefits
- 192 monocrystalline N-type cells
- 0/+3% positive power tolerance
- Anti-PID
- Reduced hot-spot loss
- 15-year product warranty
- 30-year linear power warranty
Product features JinkoSolar JKM480N-48QL6-DV
- Power: 480 watts
- 1500 V IEC certified
- 2.0 + 2.0 mm glass
- 6,000 Pa snow load
- 4,000 Pa wind load
- Black module frame
- Dimensions: 1762 × 1134 × 30 mm (H x W x D)
- Weight: 24.4 kg
- Cable length: 1.20 m
- Connector type: MC4
- Protection class: IP68
- Power temperature coefficient: -0.26% /°C
Module manufacturer: JinkoSolar
JinkoSolar, the current global market leader, has been proving its worth amongst the major players in the solar industry for many years and has already broken several efficiency records. JinkoSolar attaches great importance to a sustainable value chain.
-
