Jolywood JW-HD108N-R2 500W
| Type of manufacturer: | JW-HD108N-R2 500W |
|---|---|
| Manufacturer Art. No.: | M-JOL-TC-500-320-DE-E |
| Art. Nr.: | 16488 |
| Pieces per package unit: |
|
| Power: | 500 Watt |
| Efficiency: | 22.5 % |
| Construction type: | Double-Glass-Bifacial |
| Warranty: | 25/30 years |
| Dimensions: | 1960 x 1134 x 30 mm |
| Backsheet: | Transparent |
| Frame color: | Black |
| Technology: | TOPCon |
| Connector: | MC4 |
| Snow load: | 5400 Pa |
| Wind load: | 2400Pa |
| Solar panel type: | BiFacial, Glass-glass solar panels, TOPCon modules, Transparent modules |
- New

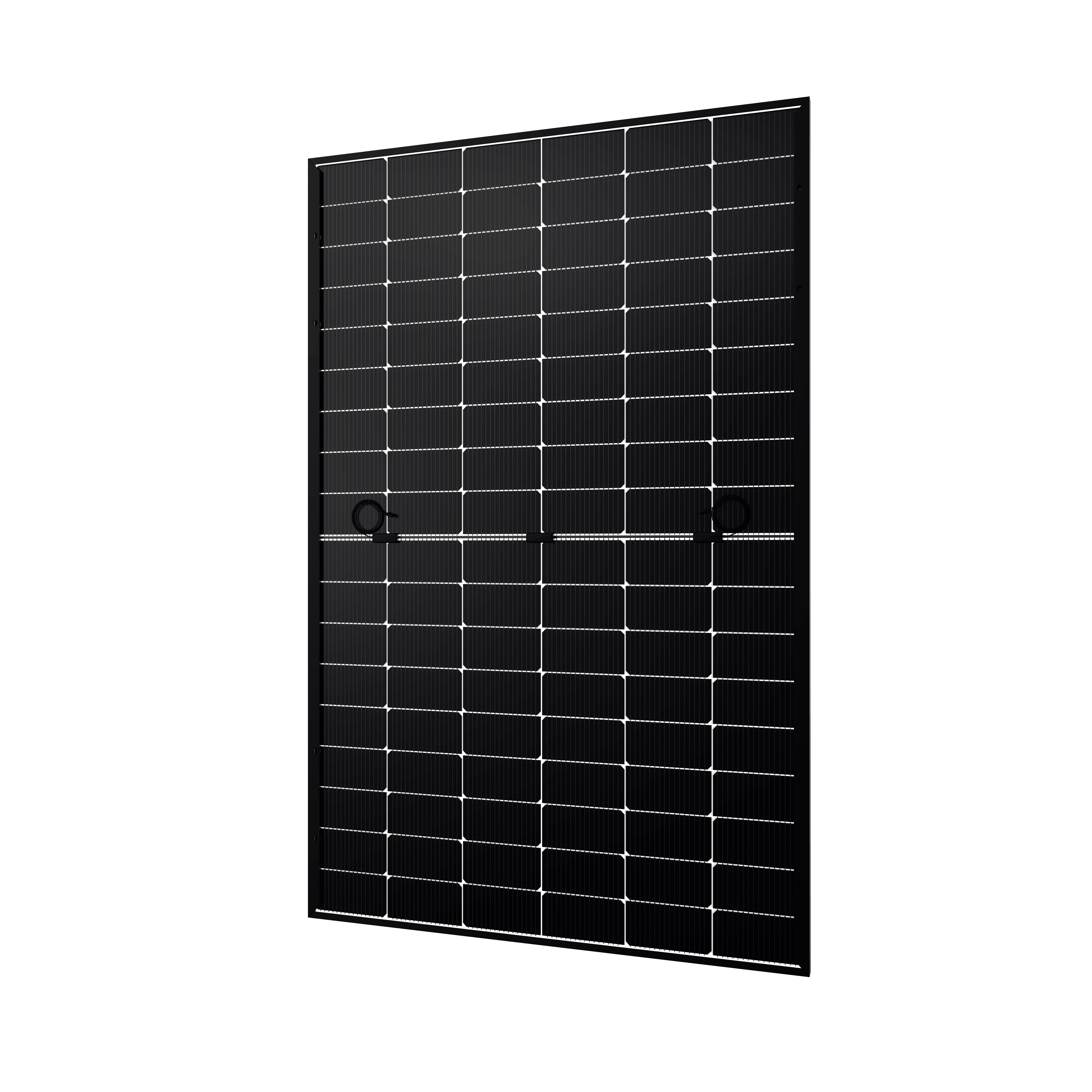

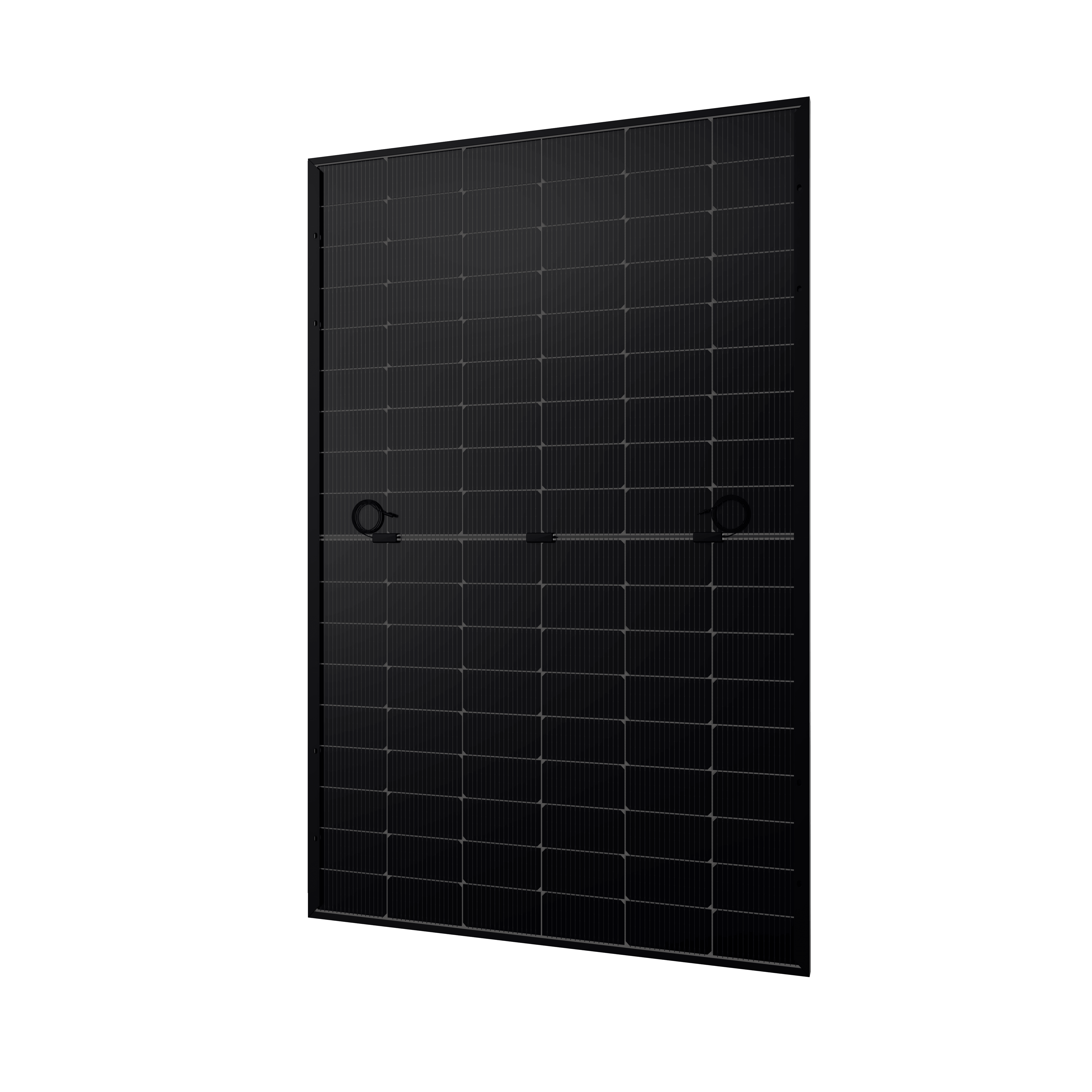

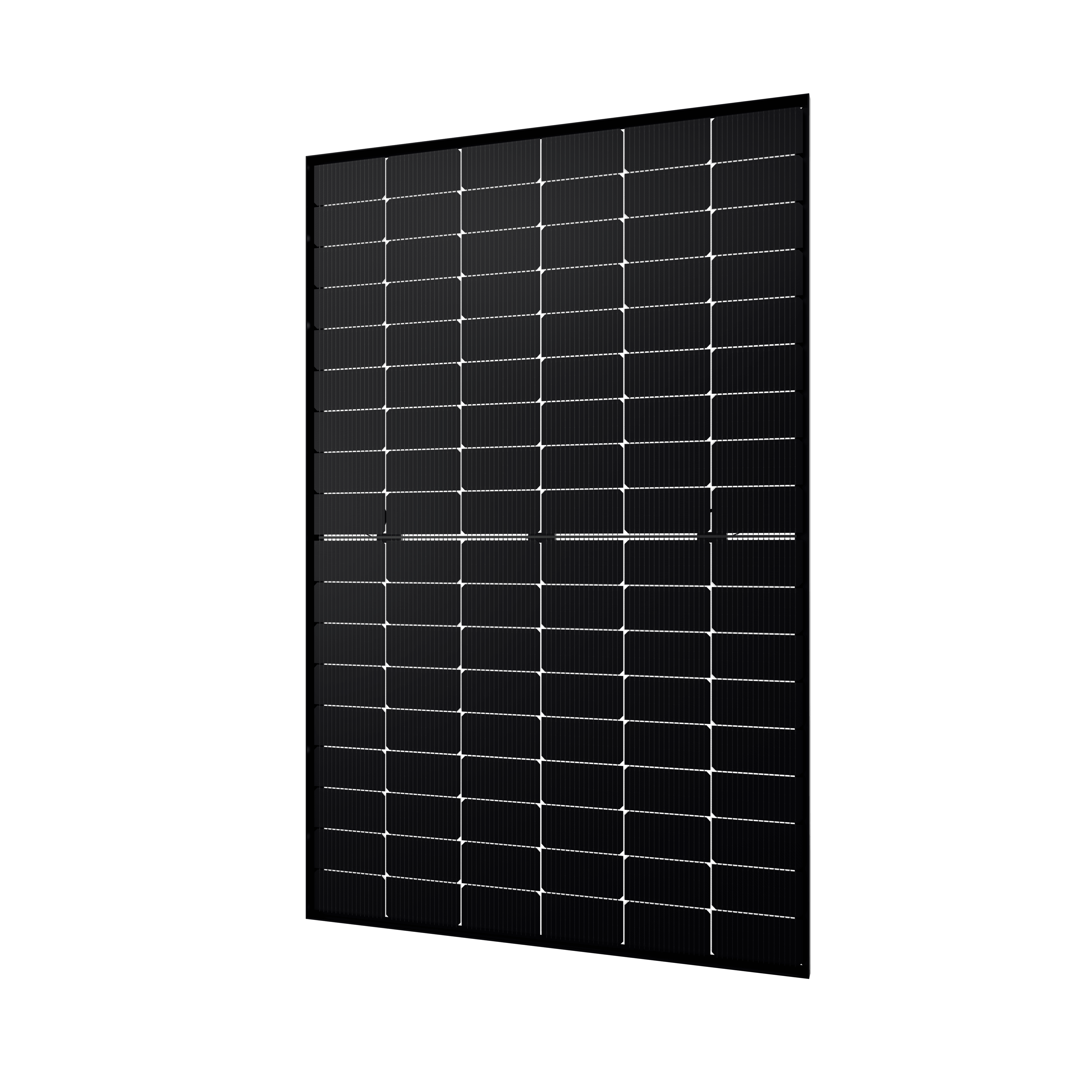

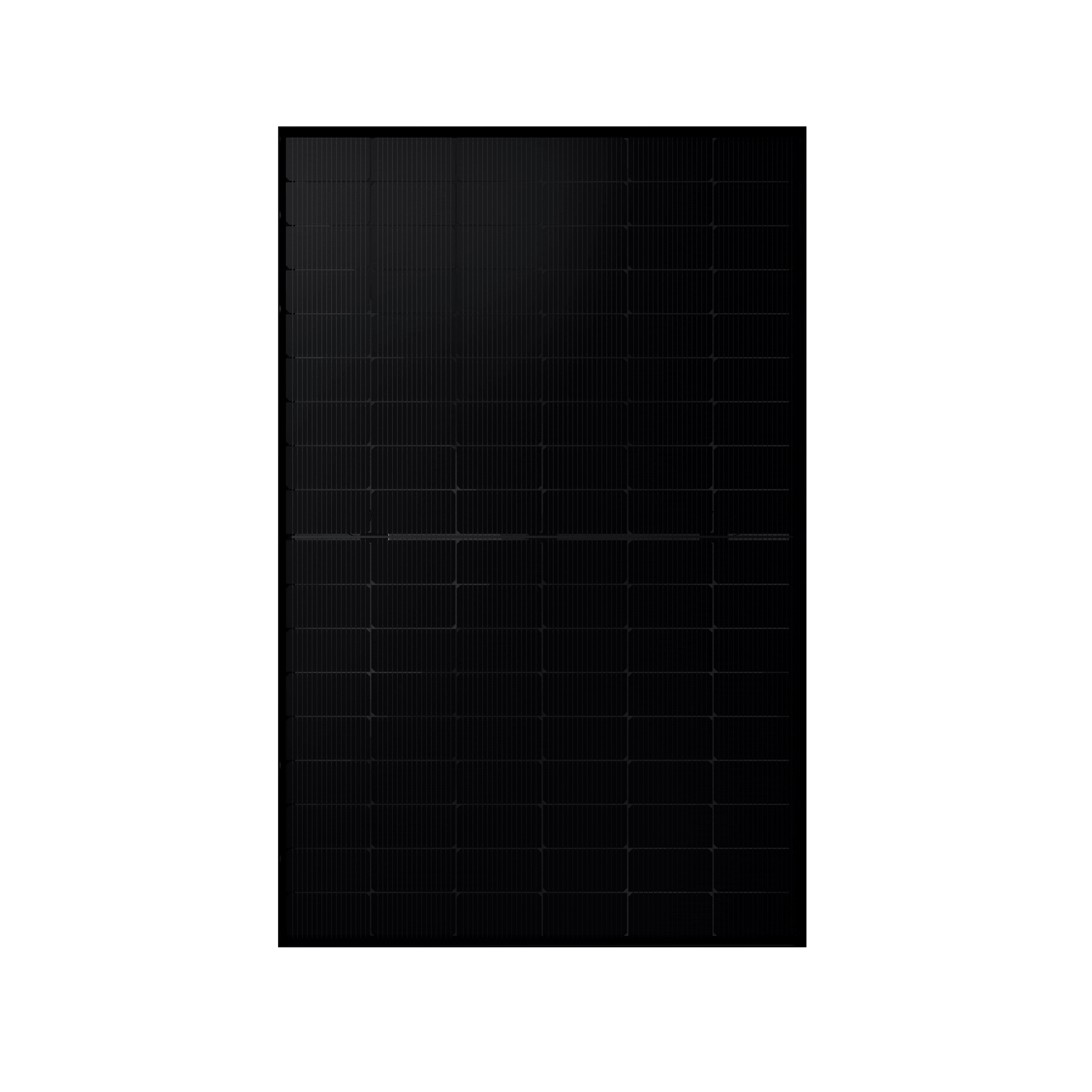

Jolywood 500 W bifacial glass/glass module – Niwa Black Series
The JW-HD108N-R2 bifacial half-cut glass/glass solar panel in the 500-watt version is constructed using J-TOPCon cells. With a black frame, black cells and ultra-thin busbars, it blends discreetly into any roof, making it ideal for installation on the roof of a private home. The module achieves an efficiency of 22.5 per cent and is immune to light-induced degradation (LID). It is highly efficient and delivers high yields even in diffuse light, such as on cloudy or foggy days.
Jolywood offers a 25-year product warranty and a 30-year linear power warranty. After 30 years, the manufacturer guarantees that the module will still deliver at least 87.4 per cent of its rated power.
Product advantages
- 108 monocrystalline half-cells (n-type, J-TOPCon)
- 0/+3 per cent positive power tolerance
- No light-induced degradation (LID)
- Optimal low-light performance
- Bifacial with 80 per cent bifaciality (±5 per cent)
- 25-year product warranty
- 30-year linear power warranty (1.0% degradation in the first year, then 0.4% per year)
Product specifications: Jolywood Niwa Black JW-HD108N-R2 500 W
- Power: 500 watts
- Efficiency: 22.5 per cent
- Short-circuit current: 15.78 A
- Module frame colour: Black (anodised aluminium)
- Dimensions: 1960 x 1134 x 30 mm
- Weight: 27.3 kg
- Junction box: IP68, 3 bypass diodes
- Cables: 4.0 mm², 1300 mm each
- Glass: 2.0 mm at the front and rear, partially tempered
- Snow load (front): 5,400 Pa
- Wind load (rear): 2,400 Pa
- Power temperature coefficient: -0.28 %/°C
- Max. system voltage: 1,500 V DC
About Jolywood
Jolywood Ltd. is a global leader in the production of N-type modules and cells, with an annual module production capacity of 3 GW. Jolywood is a Tier 1 manufacturer, which is indicative of strong financial strength. Its products are highly efficient, innovative and offer excellent value for money. The Chinese manufacturer is of particular interest for commercial projects, as it has a strong and reliable partner in Munich RE for reinsurance. The first multi-MW ground-mounted PV projects have already been implemented in Germany and across Europe.
