K2 cylinder head bolt, M8x16, with undercut threads
| Manufacturer Art. No.: | 2001735 |
|---|---|
| Art. Nr.: | 16321 |
| Pieces per package unit: |
|
| Product type: | Screws |
Prices are only visible to business customers upon successful registration.
Product number:
16321
Description

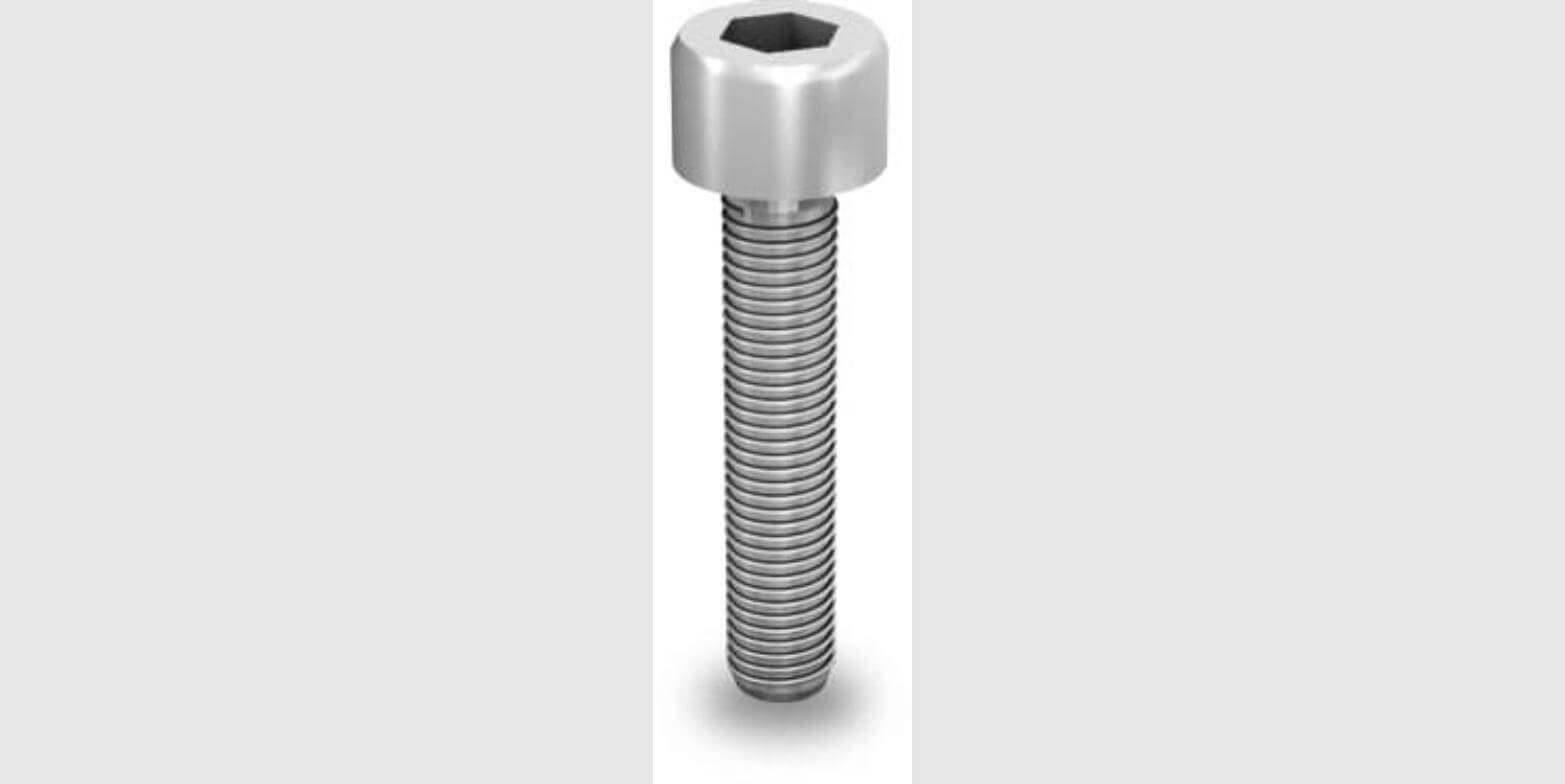

K2 M8x16 cylinder head bolt with undercut threads
The M8 x 16 cylinder head bolt from K2 Systems, compliant with ISO 4762, secures components of your PV mounting system together using a positive-lock connection. The underhead serrations engage with the contact surface and secure the connection against accidental loosening – you do not need an additional lock washer. Material: A2 stainless steel, SW6 hex socket drive.
Your benefits
- Under-head serrations – secure the connection positively against loosening
- M8 to ISO 4762 – standardised dimension, predictable spare parts procurement
- A2 stainless steel – corrosion-resistant for continuous outdoor use
- Hex socket SW6 – high torque transmission, no slippage
- Head diameter 13 mm – compact contact area even at tight connection points
- Sales unit: 100 pieces
Order now
Order the K2 cylinder head bolt M8 x 16 directly here in the Memodo Shop – sold in packs of 100.
Examples of use
- Fastening of add-on parts and adaptors for the K2 mounting system
- Connections designed to function without additional locking elements
- Replacement and retrofitting requirements for existing systems
Technical data
- Head shape: Cylindrical head
- Head diameter: 13 mm
- Thread: M8
- Length: 16 mm
- Standard: ISO 4762
- Material: A2 stainless steel
- Drive: Hexagon socket SW6
- Undercut: yes
- Sales unit: 100 pieces
- Carton: 200 pieces
- Pallet: 72,000 pieces
- Weight per piece: 0.011 kg
- Manufacturer’s item number: 2001735
- GTIN: 4251786206681
