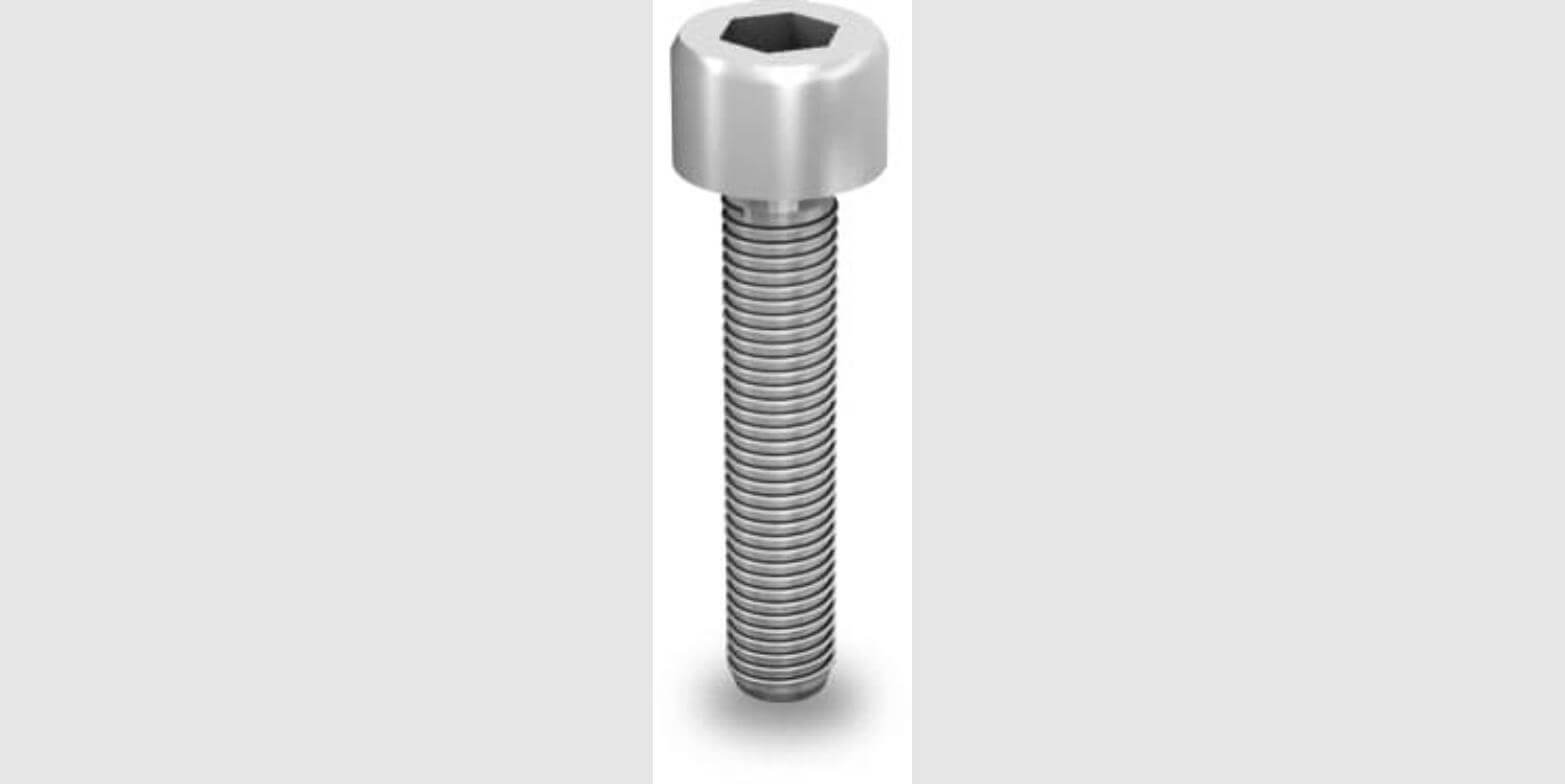

K2 cylinder head bolt M8x35 DIN 912 / ISO 4762
| Manufacturer Art. No.: | 2001728 |
|---|---|
| Art. Nr.: | 16319 |
| Pieces per package unit: |
|
| Product type: | Screws |
Prices are only visible to business customers upon successful registration.
Product number:
16319
Description
K2 cylinder head bolt M8x35 DIN 912 / ISO 4762
The M8 x 35 cylinder head bolt from K2 Systems, compliant with ISO 4762, securely fastens components of your PV mounting system together. The under-head serrations engage with the contact surface and secure the connection against self-loosening – you do not need an additional lock washer. Material: A2 stainless steel, SW6 hex socket drive.
Your benefits
- Under-head serrations – secure the connection positively against loosening
- M8 to ISO 4762 – standardised dimensions, predictable spare parts procurement
- A2 stainless steel – corrosion-resistant for continuous outdoor use
- Hexagon socket SW6 – capable of transmitting high torque, no slippage
- Head diameter 13 mm – compact contact area even at tight connection points
- Sales unit: 200 pieces
Order now
Order the K2 cylinder head bolt M8 x 35 directly here in the Memodo Shop – sold in packs of 200.
Examples of use
- Fastening of add-on parts and adaptors for the K2 mounting system
- Connections designed to function without additional locking elements
- Replacement and retrofitting requirements for existing systems
Technical data
- Head shape: Cylindrical head
- Head diameter: 13 mm
- Thread: M8
- Length: 35 mm
- Standard: ISO 4762
- Material: A2 stainless steel
- Drive: Hexagon socket SW6
- Underslung teeth: yes
- Sales unit: 200 pieces
- Carton: 200 pieces
- Pallet: 43,200 pieces
- Weight per piece: 0.017 kg
- Manufacturer’s item number: 2001728
- GTIN: 4251786206612
